ISOFIX Hooks, Rear Seat

ISOFIX Hooks, Rear Seat

To remove

1. Fold up the seat cushion.
2. Remove the backrest.

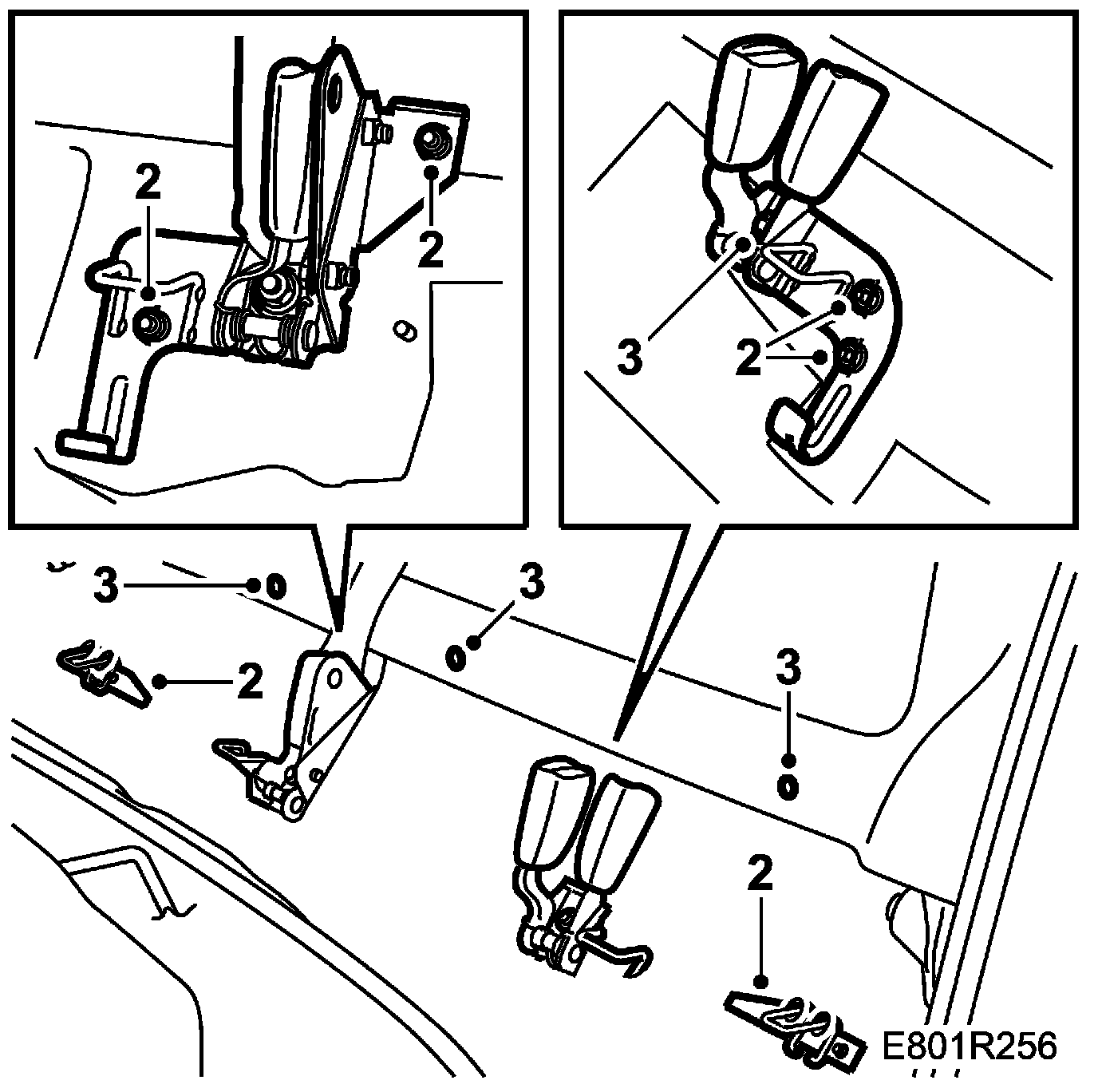

3. Remove the clips from the boot carpet. Use 84 71 179 Removing tool, clips.







4. Remove the seat belt buckle nut.
5. Fold back the carpet.

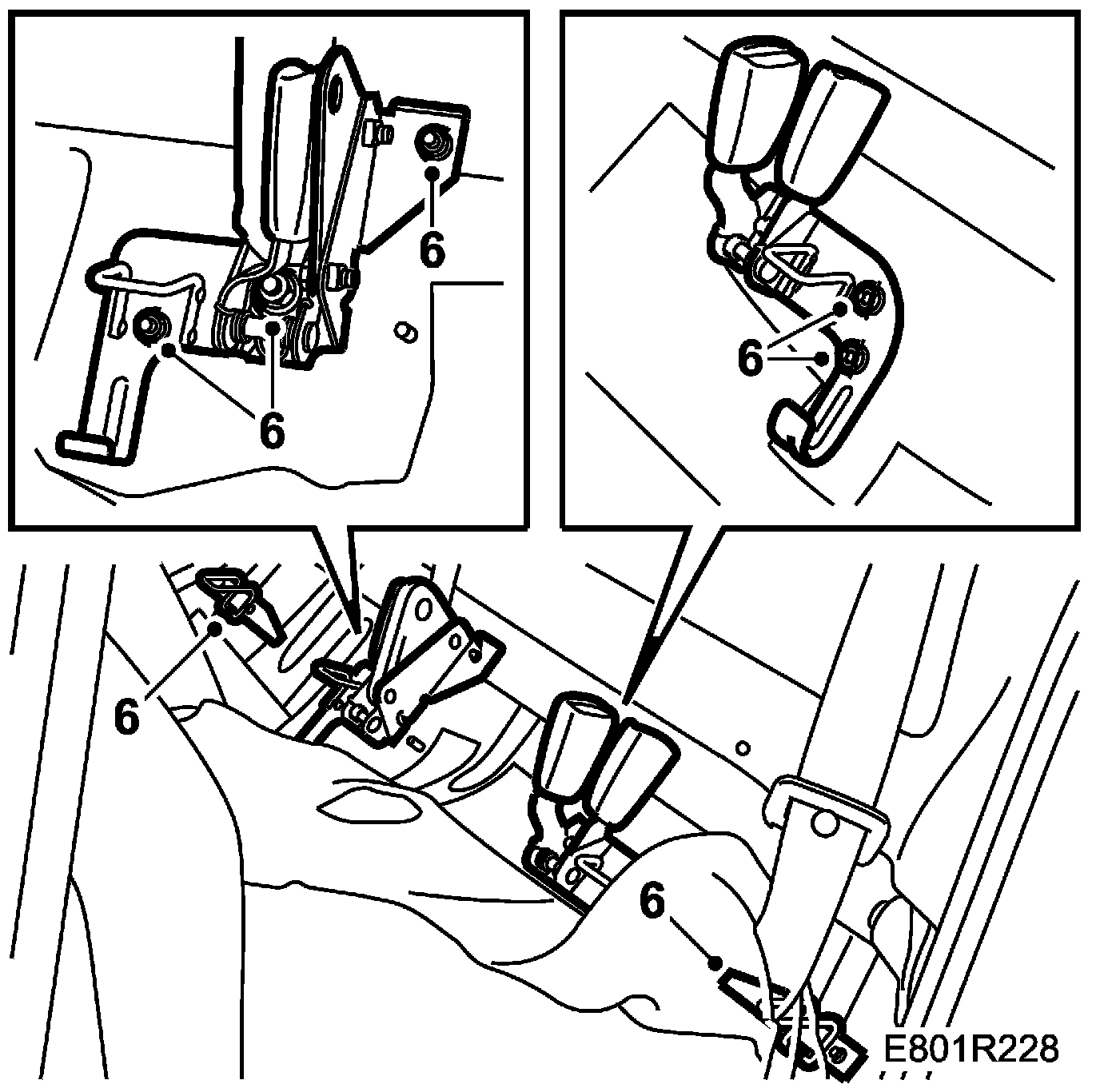

6. Undo the nuts securing the ISOFIX hook.







7. Insert the mounting through the carpet

To fit

1. Fit the ISOFIX mounting in place.
2. Screw on the nuts.

Tightening torque: 45 Nm (33 lbf ft)







3. Fit the seat belt buckle.

Tightening torque: 45 Nm (33 lbf ft)

4. Lower the seat squab.
