Knee Shield, Driver

Knee Shield, Driver

To remove







1. Remove the dashboard.

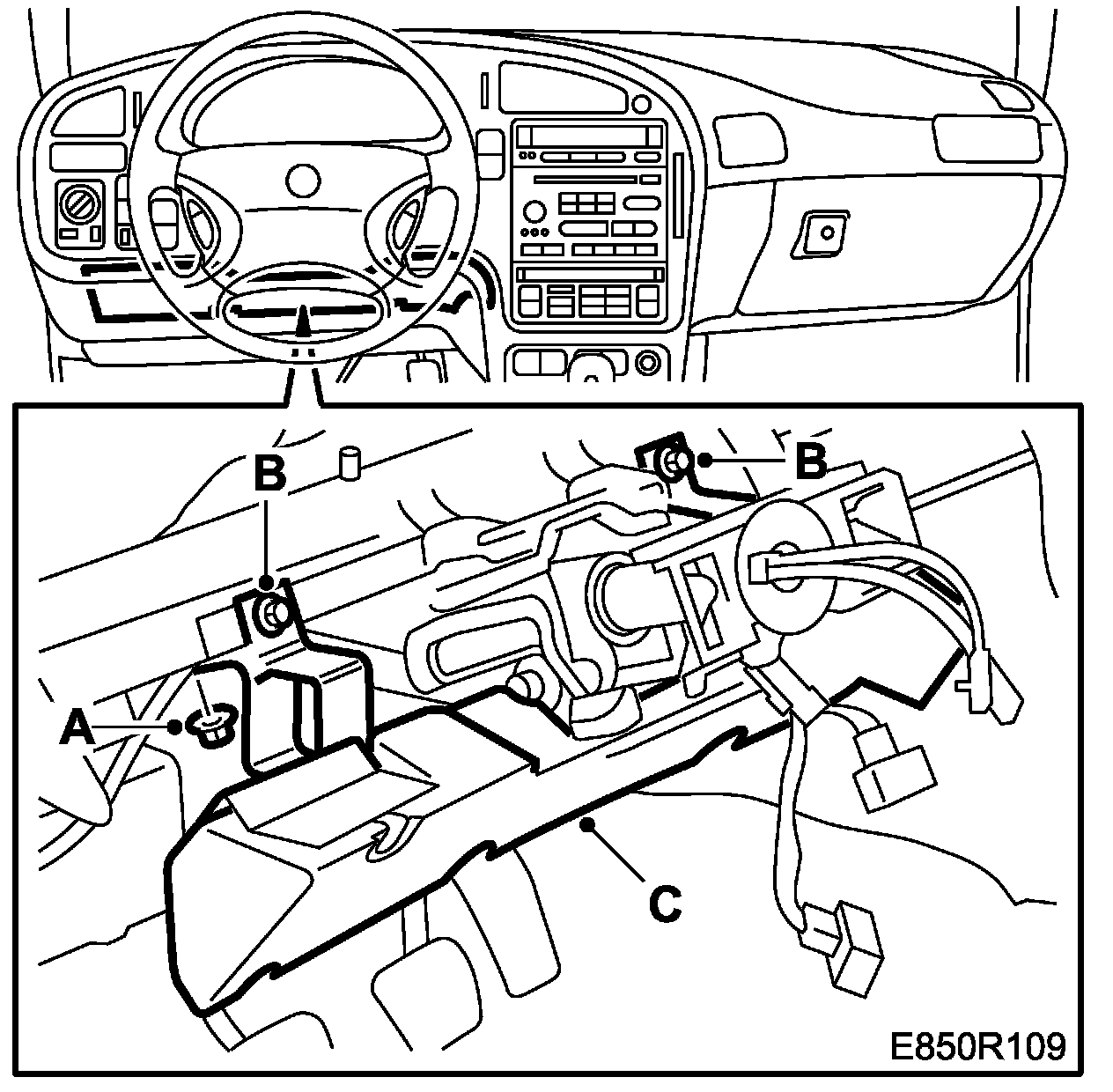

2. Undo the 2 lower nuts for the mounting (A).
3. Remove the 2 upper nuts (B).
4. Lift away the knee shield (C).

To fit







1. Refit the shield (C).
2. Fit the 2 upper nuts (B).
3. Fit the 2 lower nuts (A).
4. Fit the dashboard.
