Diagnostics Communication

Diagnostics Communication

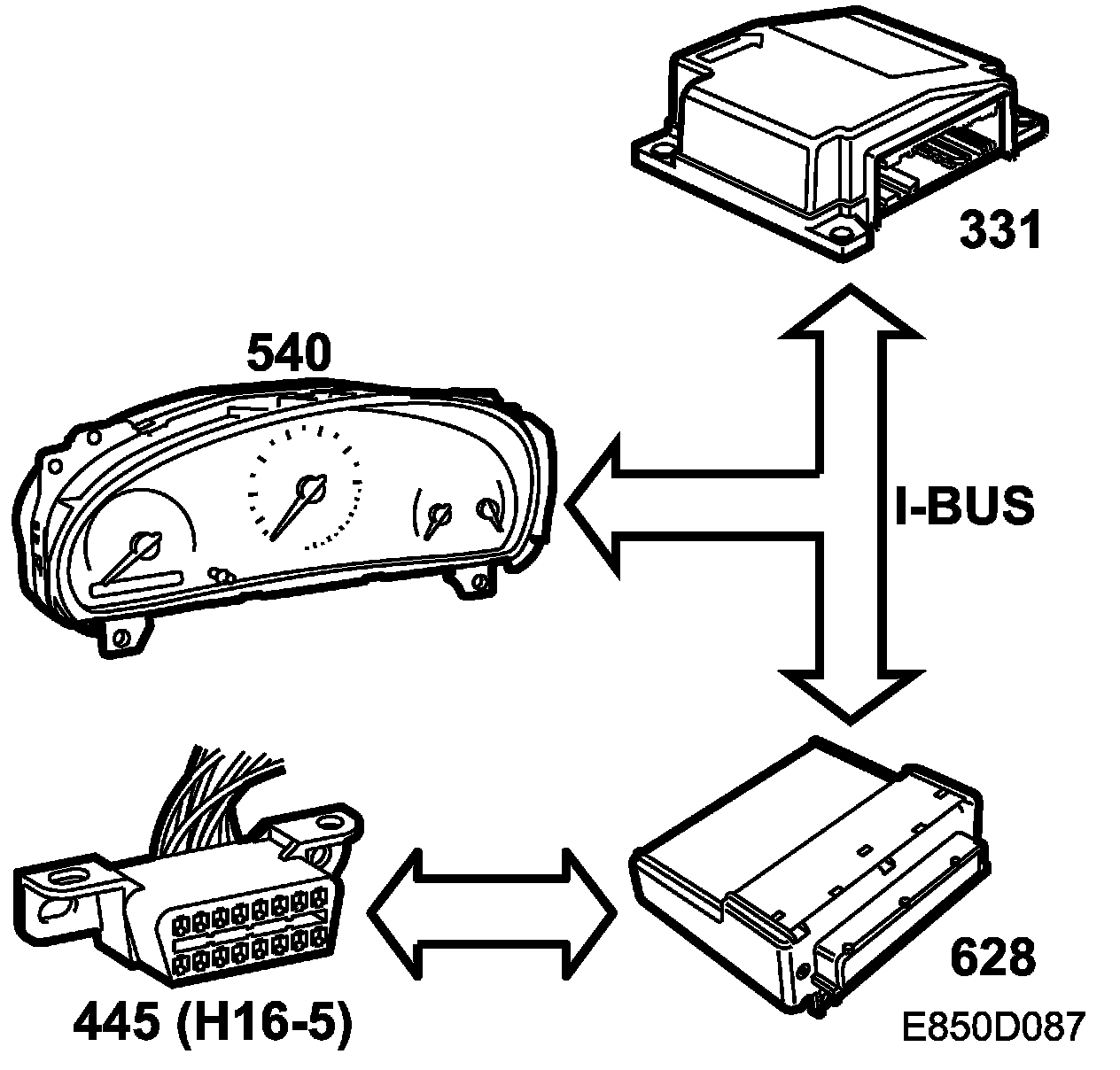

The control module communicates with the data link connector (diagnostic socket) via pin 12.

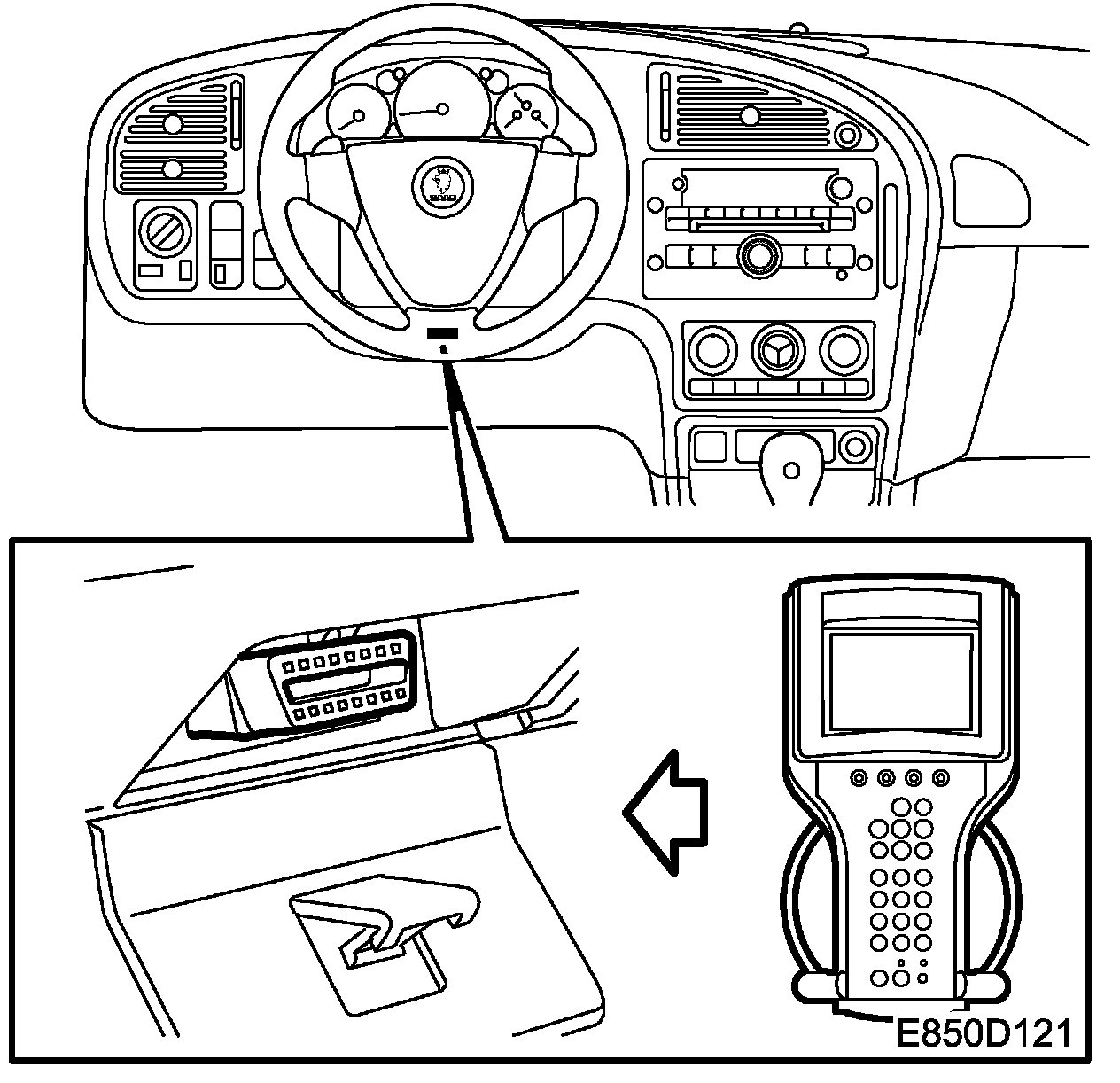

The data link connector (diagnostic socket) is located on the driver's side below the steering wheel.
