Scan Tool Testing and Procedures

Tech 2 Menu Structure

^ Diagnostic trouble codes (DTC)

^ Read values/Activate

^ Adjustment

^ Programming

^ Snapshot

^ System information

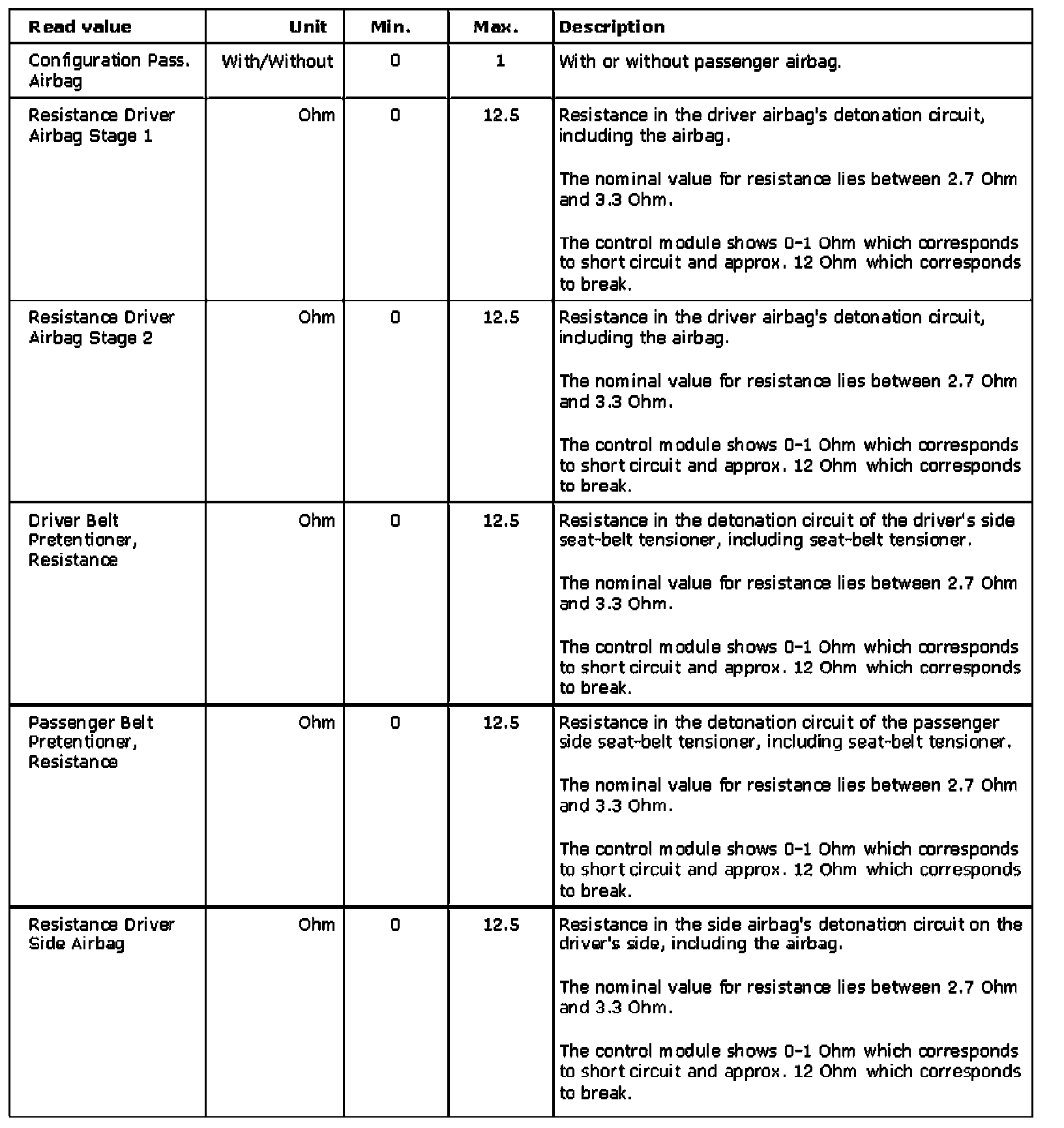

Read Values Part 1 Of 2:

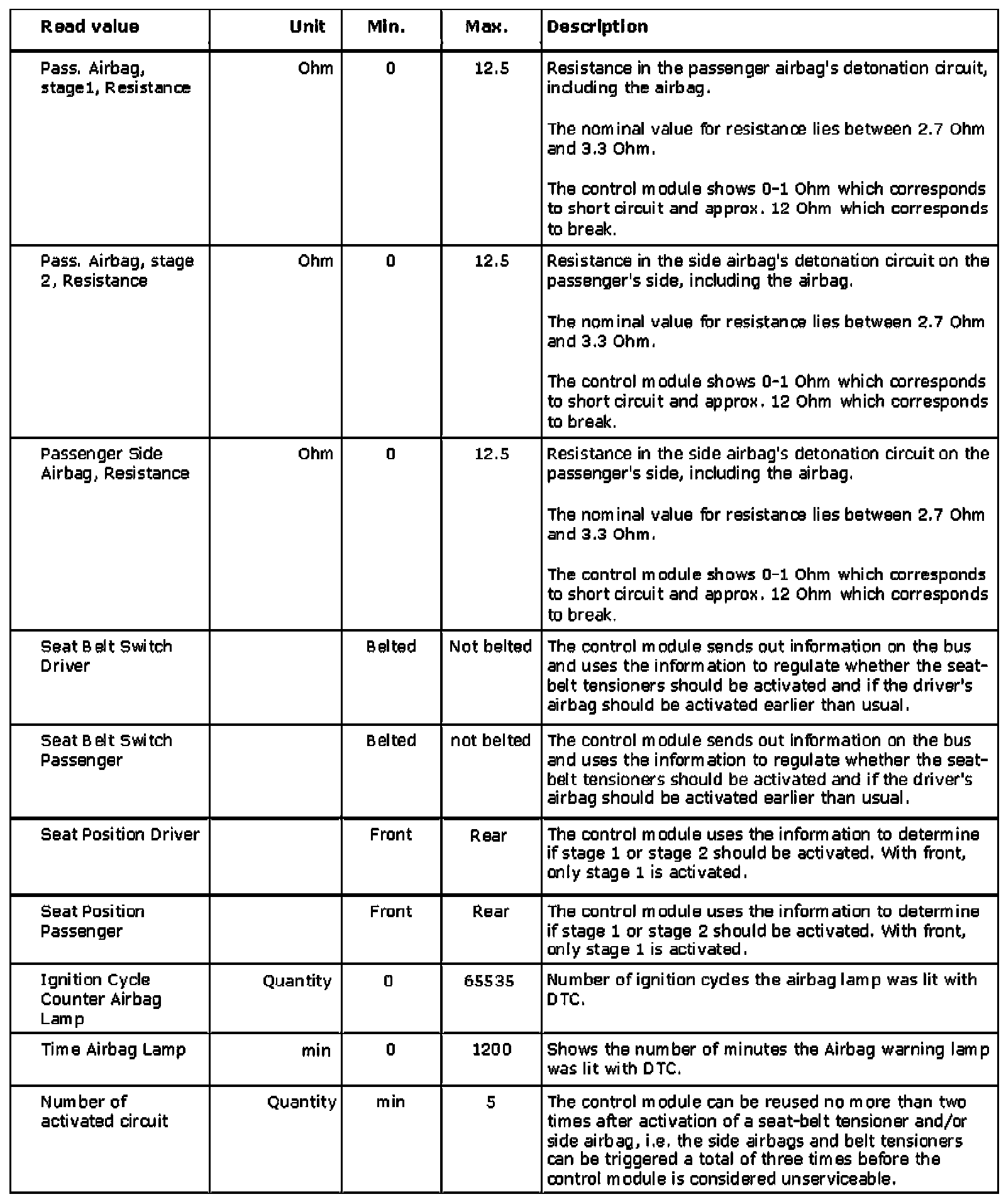

Read Values Part 2 Of 2:

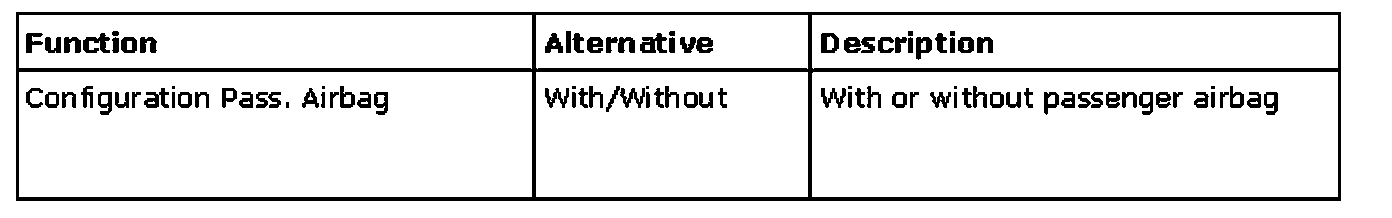

Programming:

Command menu "System Information"

Text Function
Part Number Shows Saab's X-digit part number for the control module
Hardware Version Number: Shows the supplier's X-digit part number for the software.
Software Version Number: Shows the supplier's X-digit part number for the control module.
