Passenger Presence System

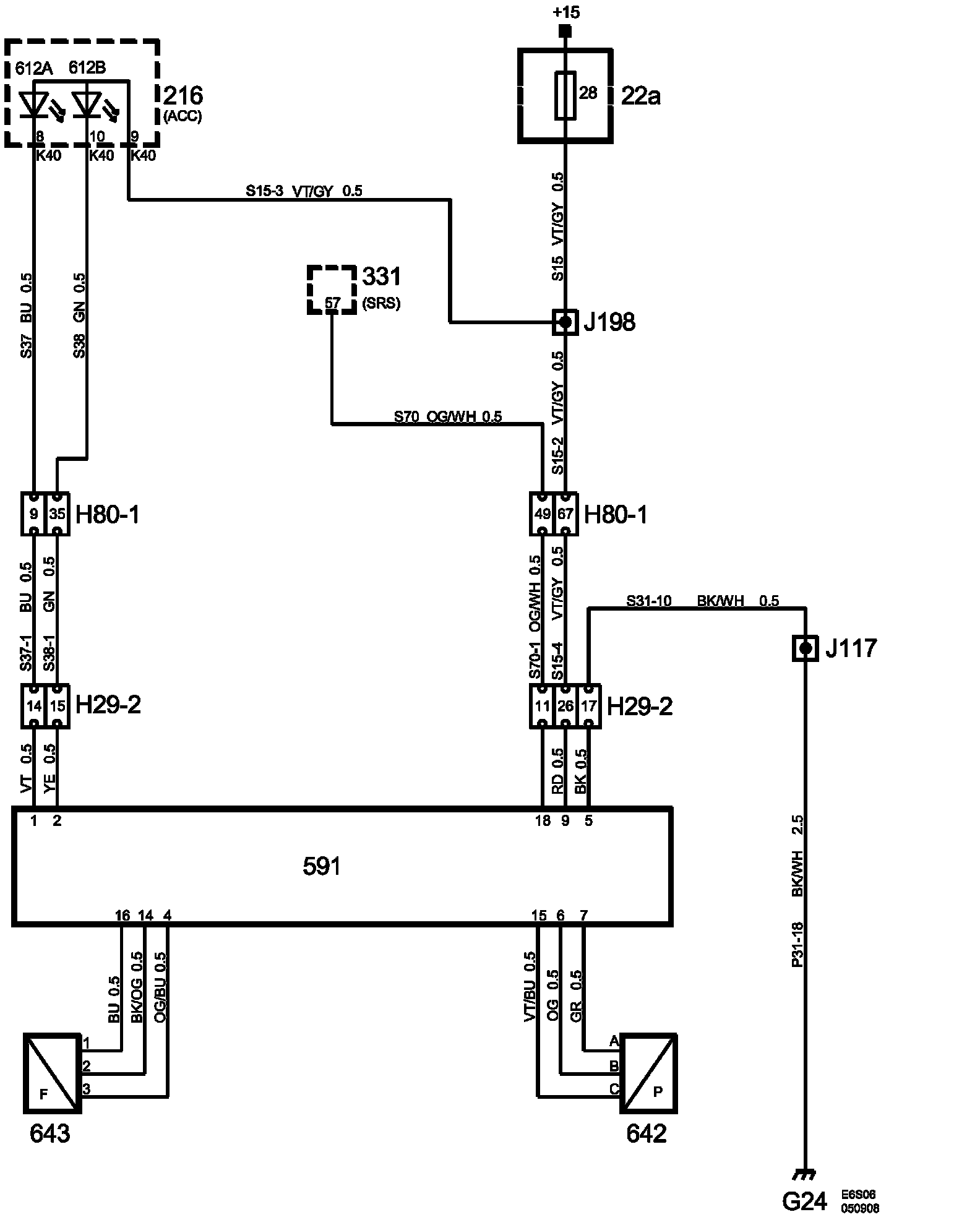

Passenger Presence System:

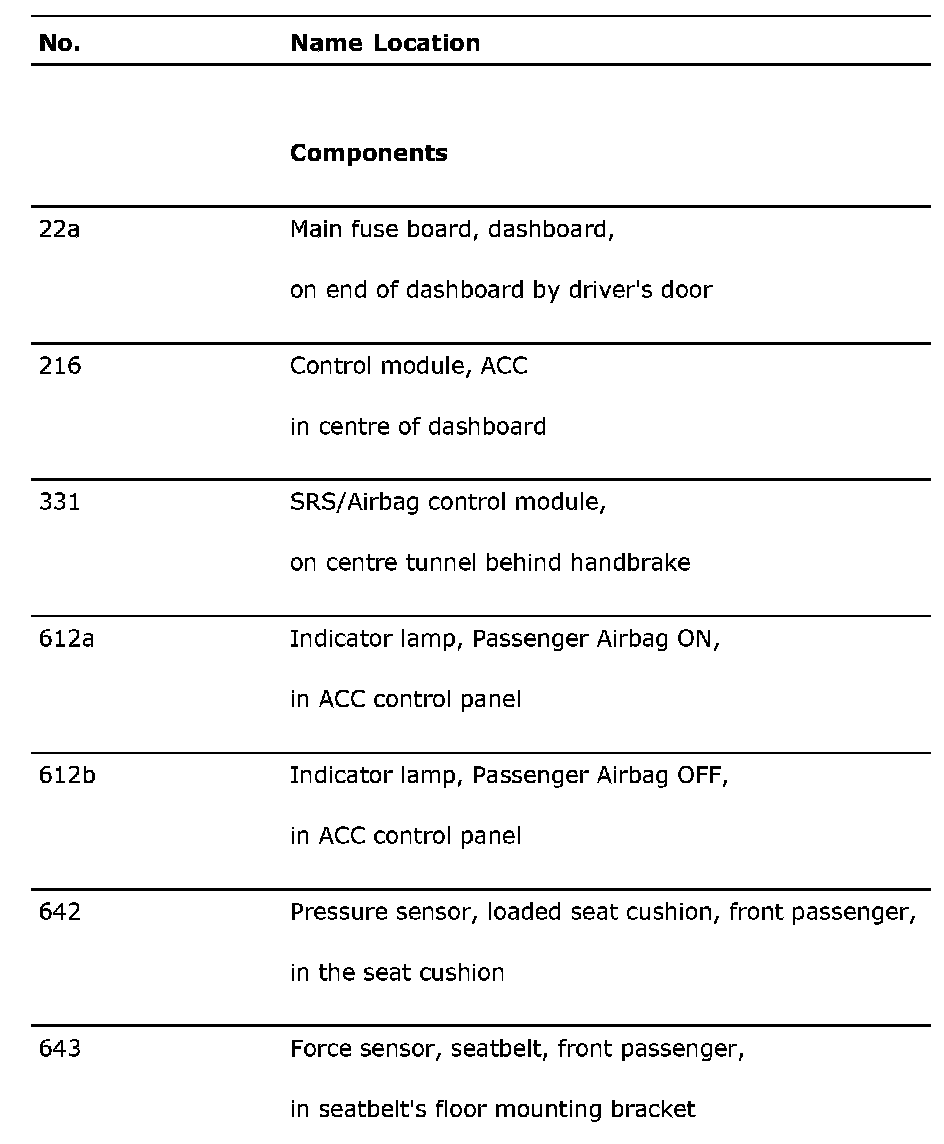

Component List (Part 1):

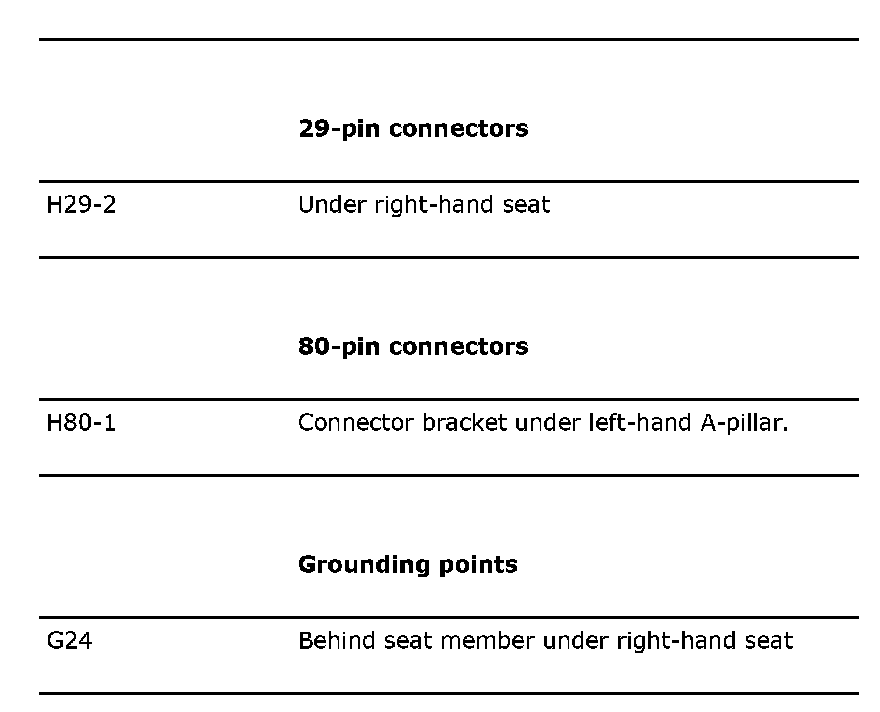

Component List (Part 2):
