Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Diagrams >> Side Airbag, Front Passenger (333PB)

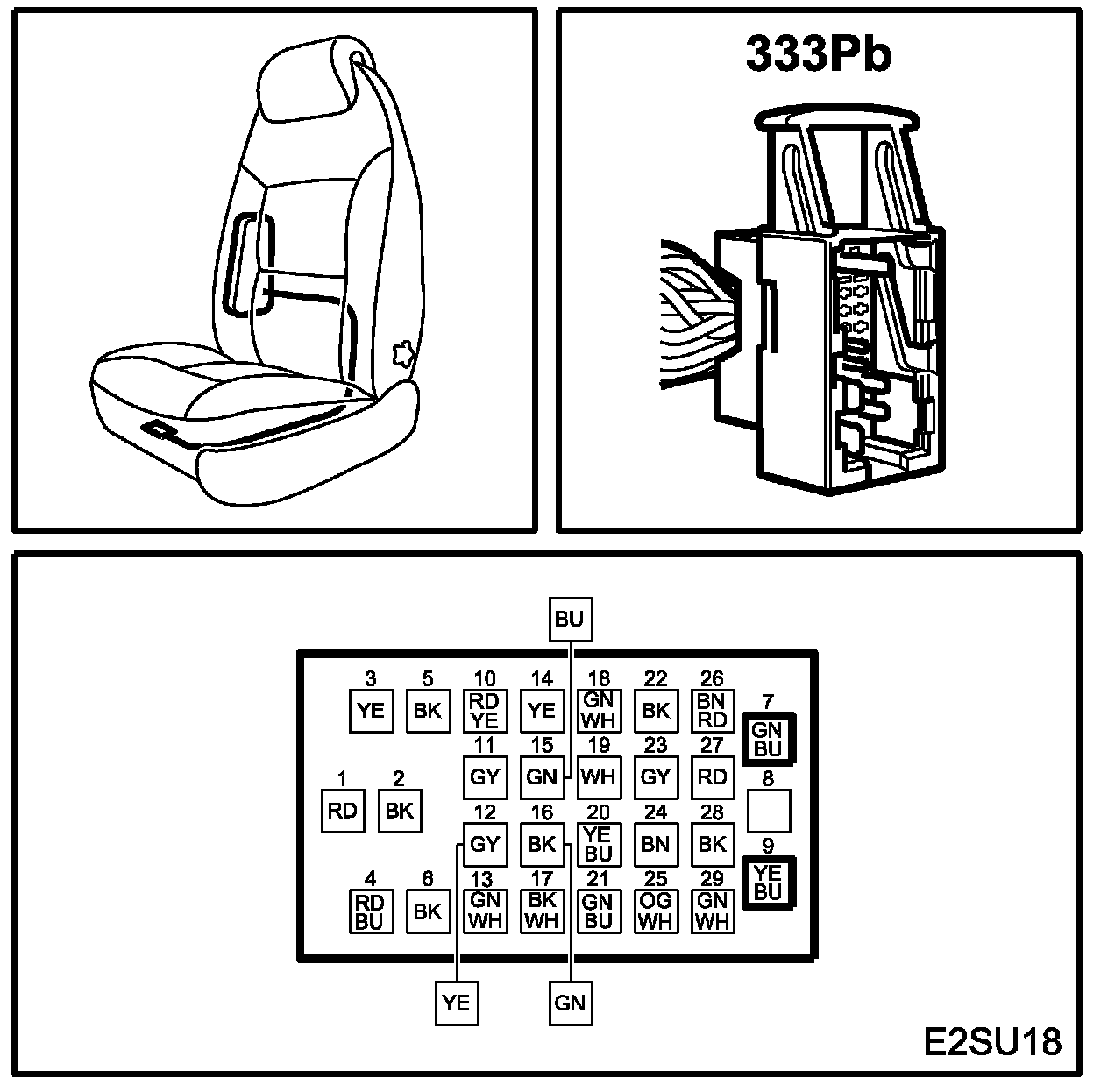

Side Airbag, Front Passenger (333PB)

Side Airbag, Front Passenger (333Pb):
