Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Seat Control Module >> Locations >> Component Locations >> Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk)

Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk)



Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk)

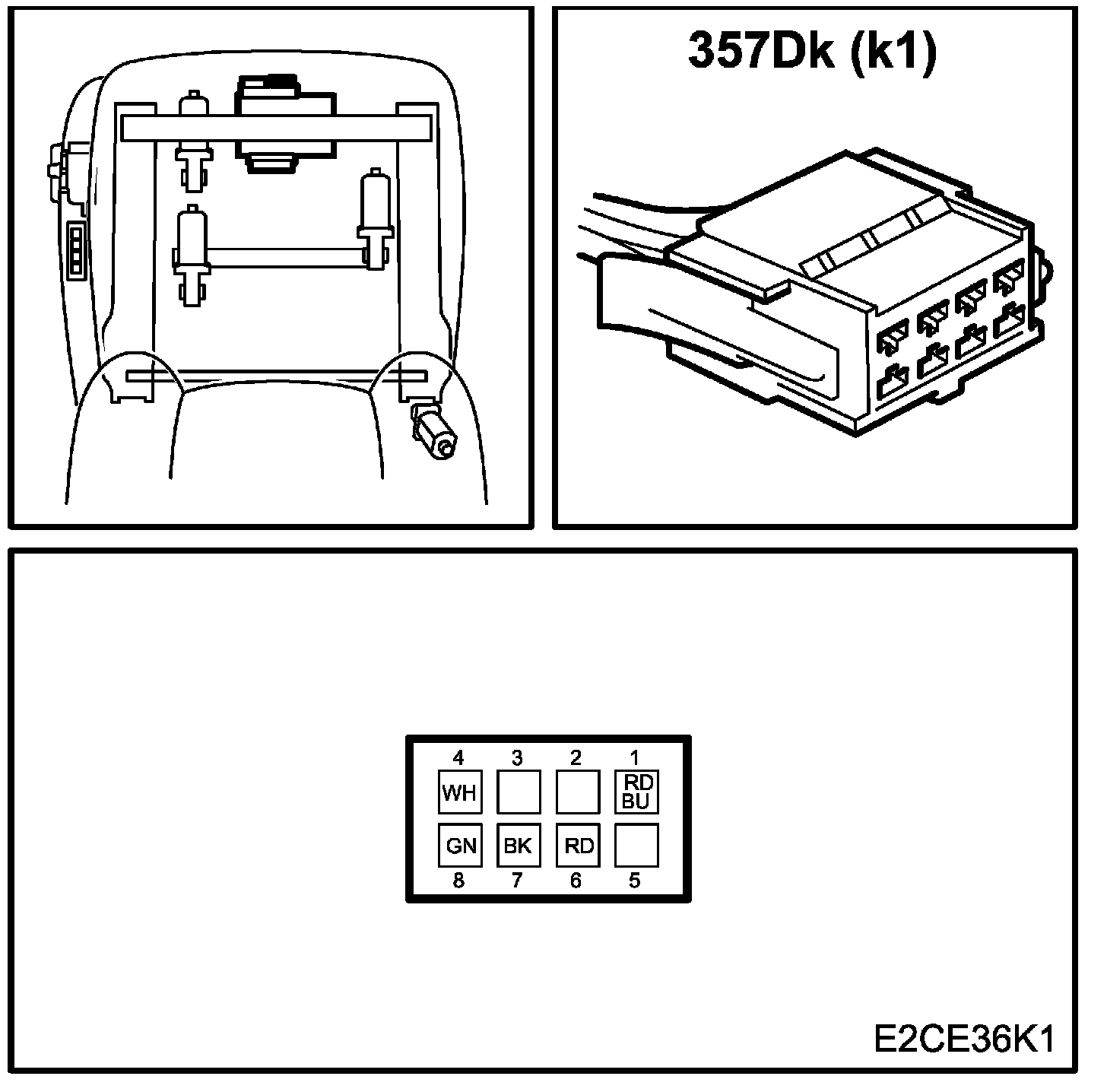

K1

Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk):

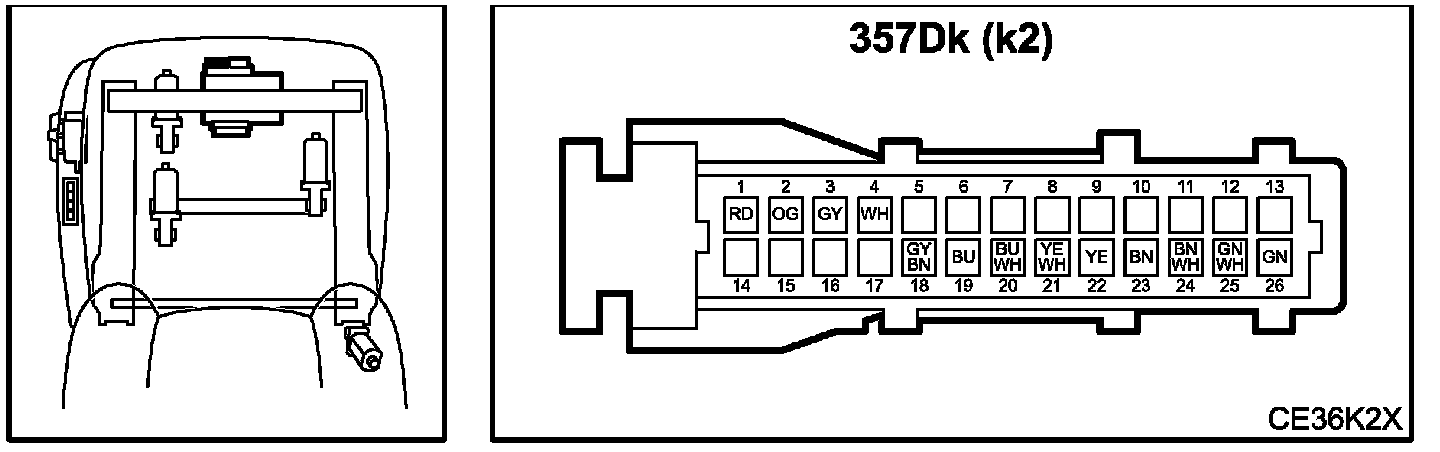

K2

Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk):

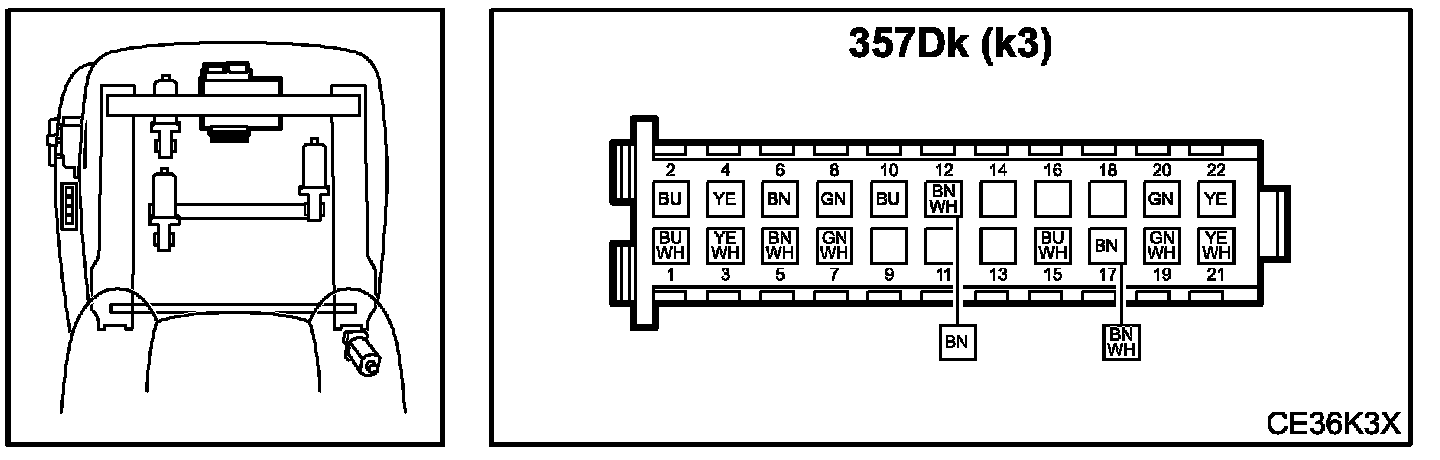

K3

Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk):
