Home
>>
Saab
>>
2005
>>
9-5 Linear (9600) L4-2.3L Turbo (2.3t)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Ignition System
>>
Ignition Relay
>>
Locations
Ignition Relay: Locations

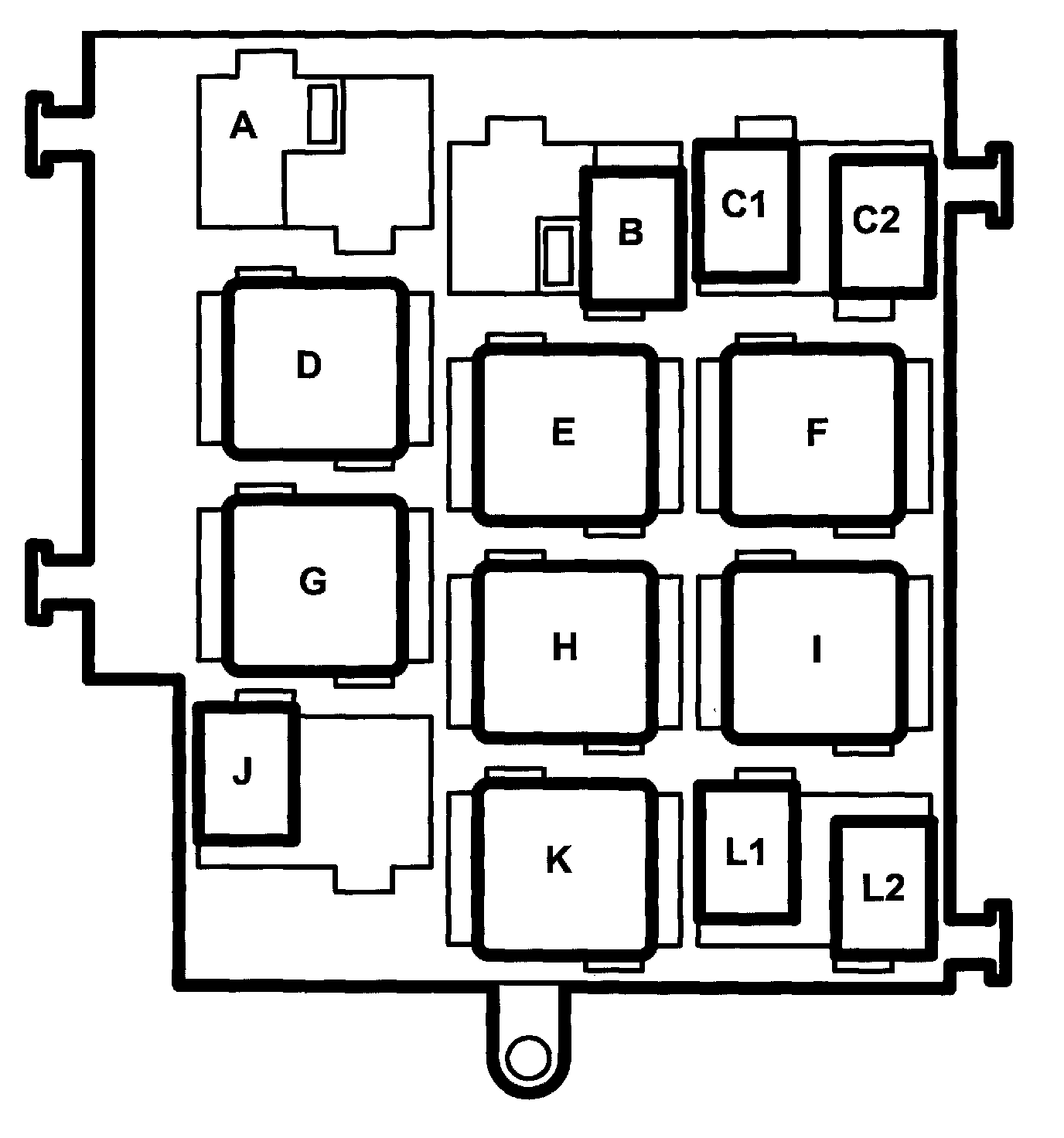

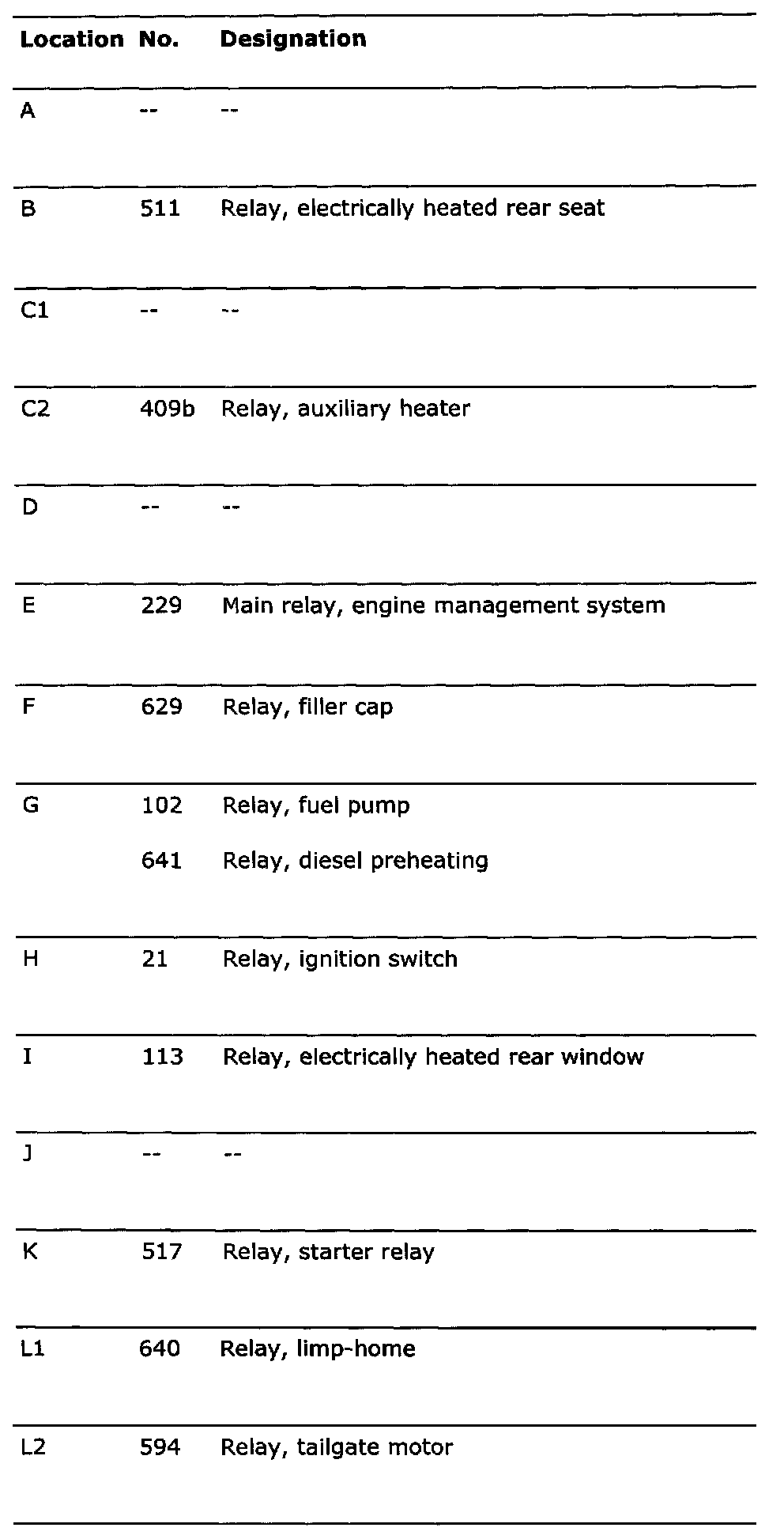

Relay Board 22b In Dashboard
Relay Box 22b In The Dashboard:
Beneath the dashboard by the steering wheel
