Fuel Filler Hose: Description and Operation

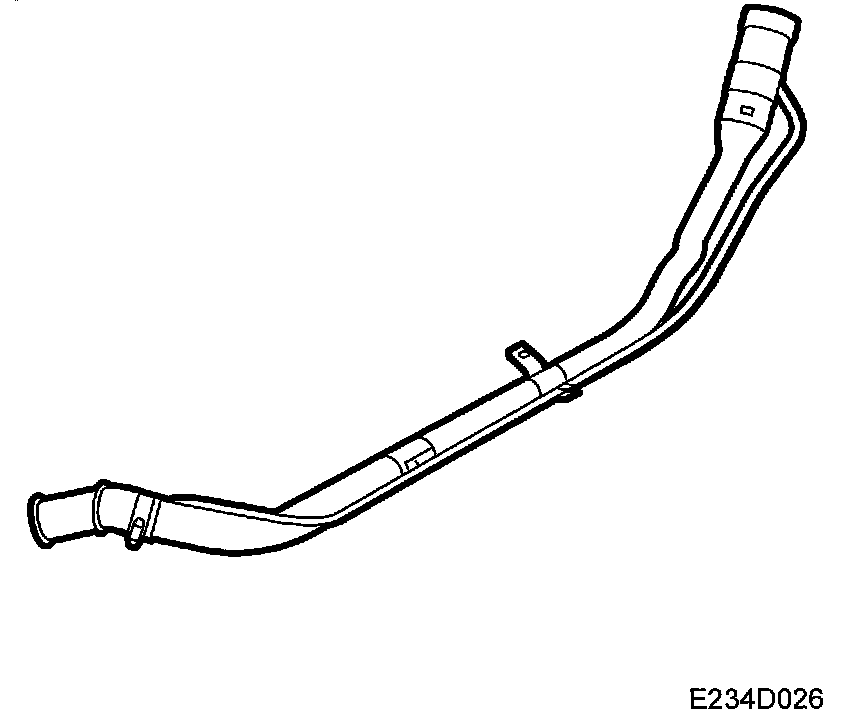

Fuel Filler Pipe










Fuel is filled into the filler pipe and then passes through a check valve and into the tank.

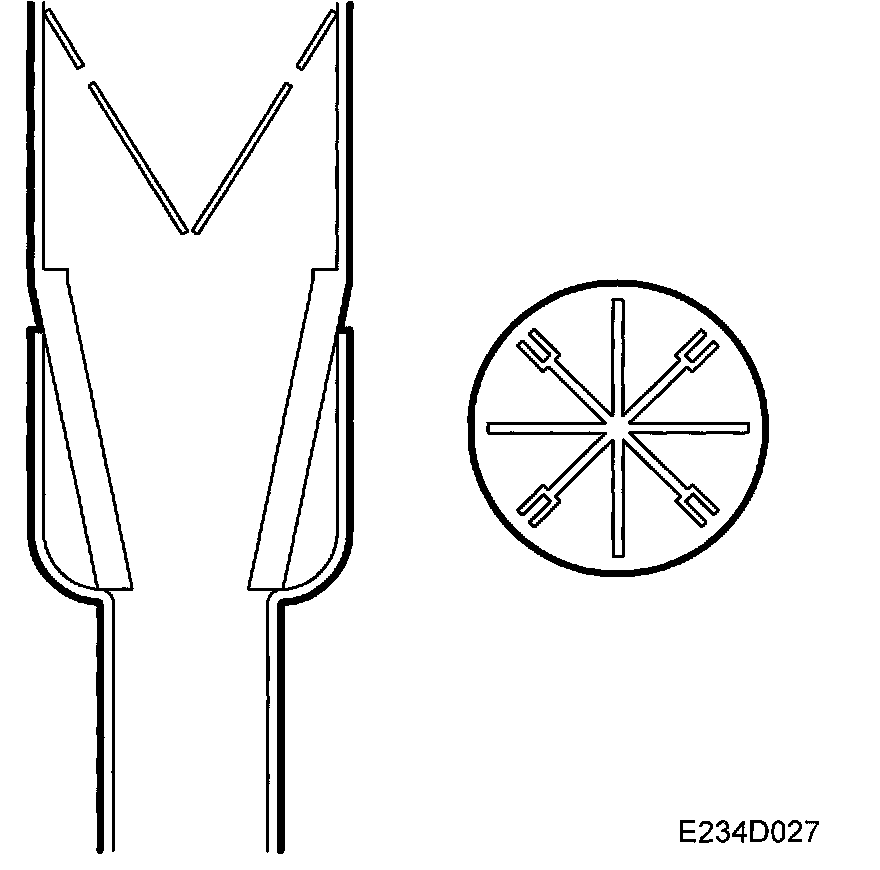

There is an insert at the top of the filler pipe that ensures that the pump nozzle fits well while refuelling. The insert also includes an ejector.

IMPORTANT: The tank must not be drained through the filler pipe. This will damage the check valve.
