Roll-Over Shut-Off Valve



Roll-Over Shut-Off Valve

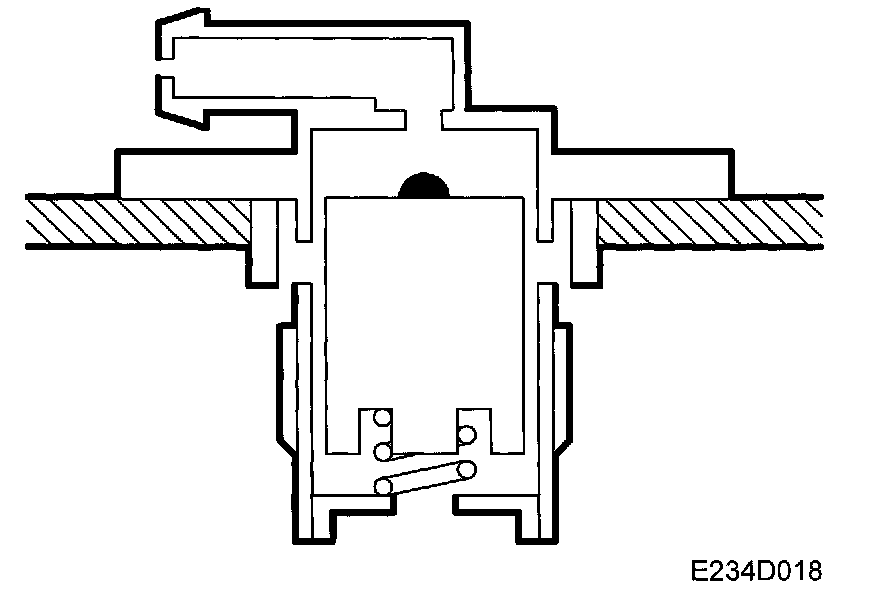

The roll-over shut-off valve closes only if the car rolls over, preventing fuel leaks.

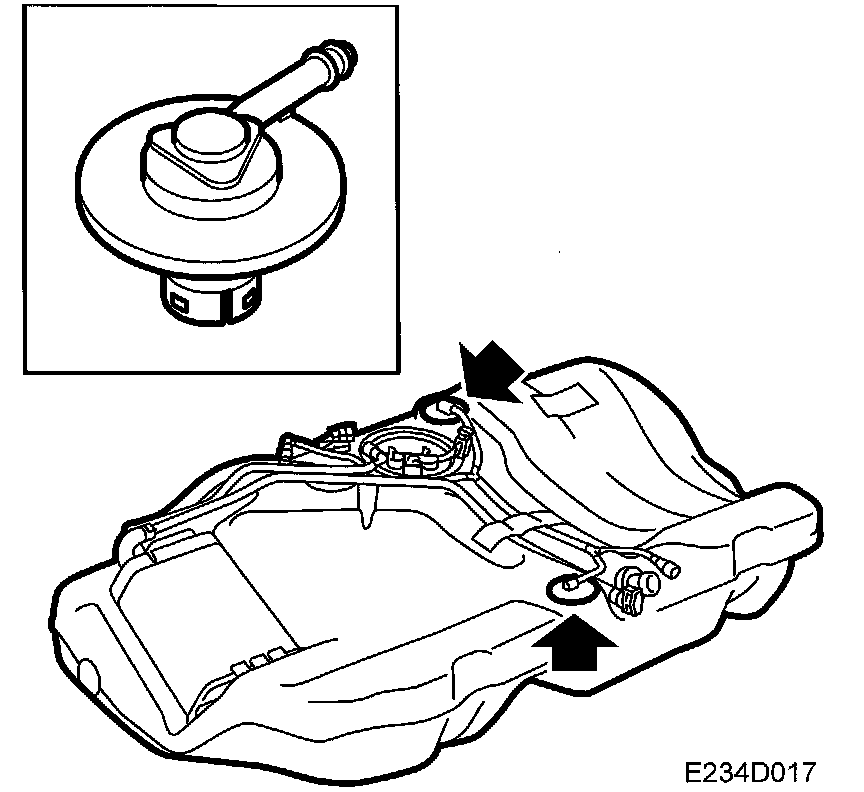

There is a line connecting the valve with the emission canister. Expansion vapours in the tank are let out through the valve and the emission canister.
