Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Mode 6 Data

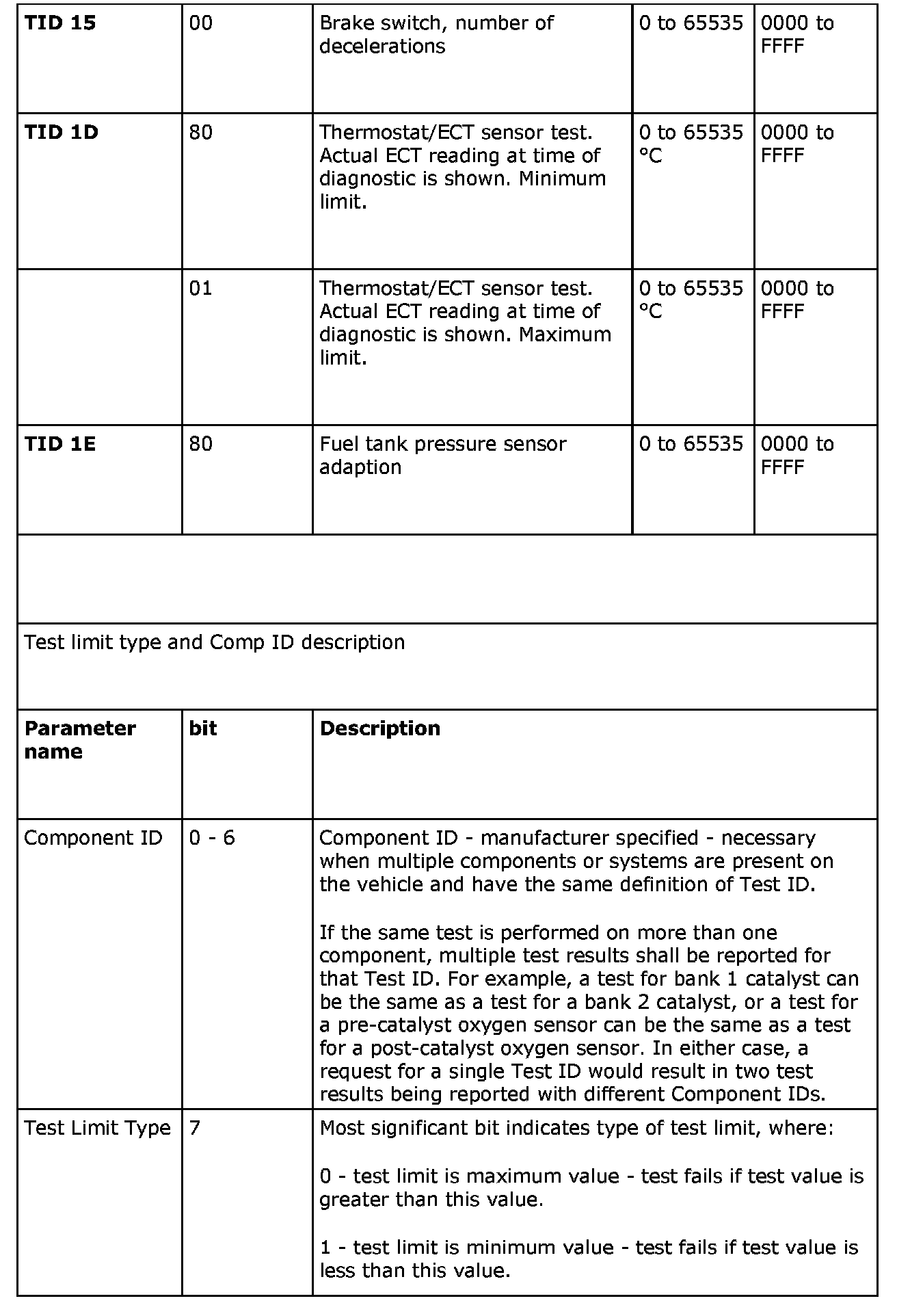

Mode 6 Data



Trionic 7, Mode 06


Part 1:




Part 2:
