No Contact With Any Bus System

No Contact With Any Bus System







Fault symptoms
The text on the diagnostic tool's display reads: "No contact with any bus system". "Cause: no communication with DICE".

Condition
The following conditions are applicable:
^ Ignition switch in ON position

Diagnostic help

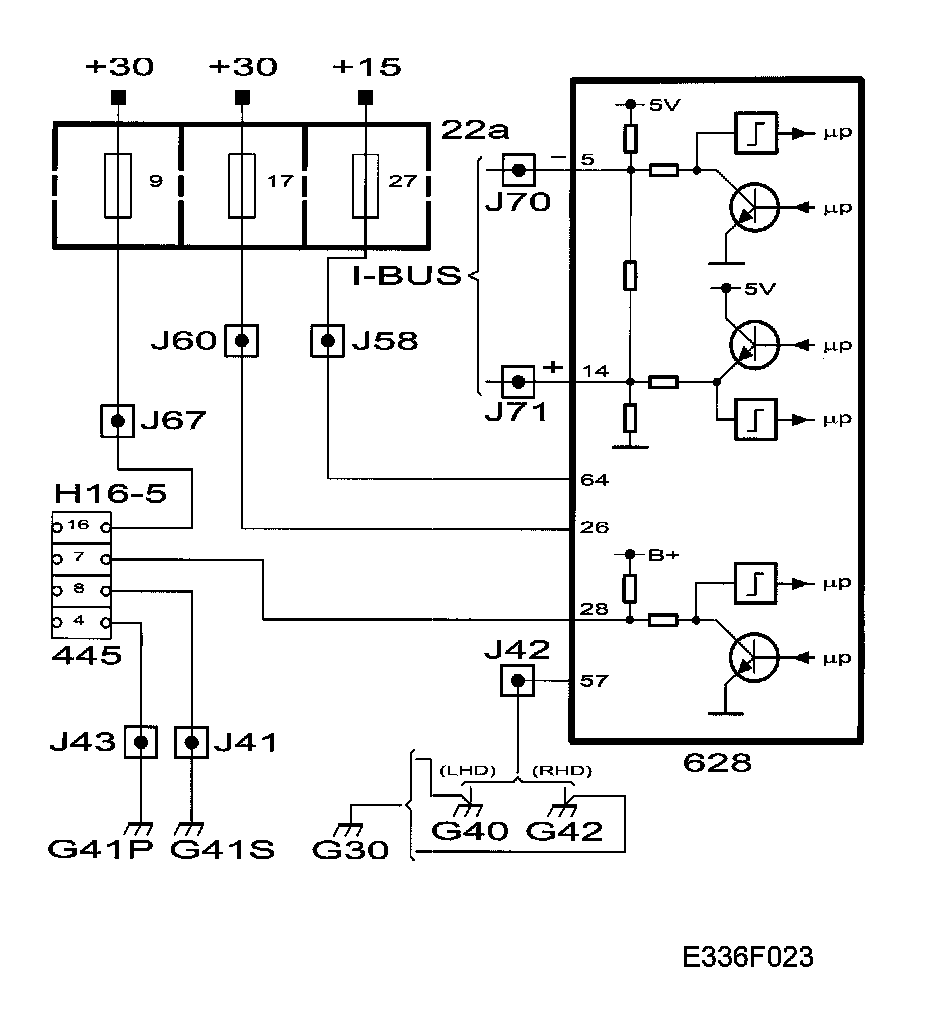

First check the fuses for the DICE control module and make sure no slide-out has occurred of the data link connector pins for communication with the DICE.

Then check whether the DICE is awake and allows diagnostics communication. If this is the case, check whether the diagnostics tool works on another car.

If no fault can be found, repair or replace the communication lead between the DICE and the data link connector.

Checking the wiring harness
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostic tool during the test.
