Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations >> Splice Locations >> Crimp Connection J162, Instrument Wiring Harness

Crimp Connection J162, Instrument Wiring Harness

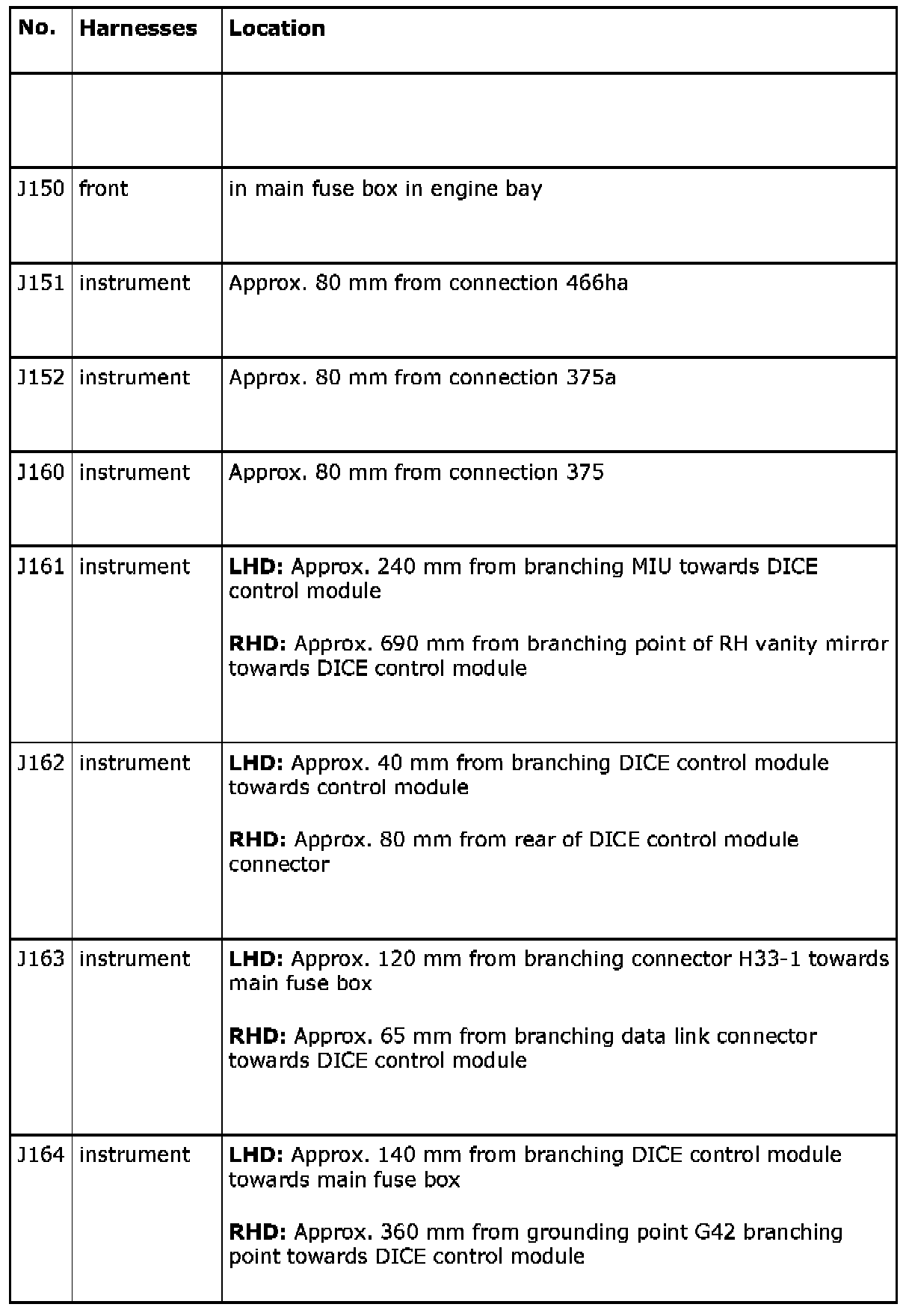

J150 To J164:
