9-5 Linear (9600) L4-2.3L Turbo (2.3t)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Locations
>>
Ground Locations
>>
Grounding Point, G41S
Grounding Point, G41S

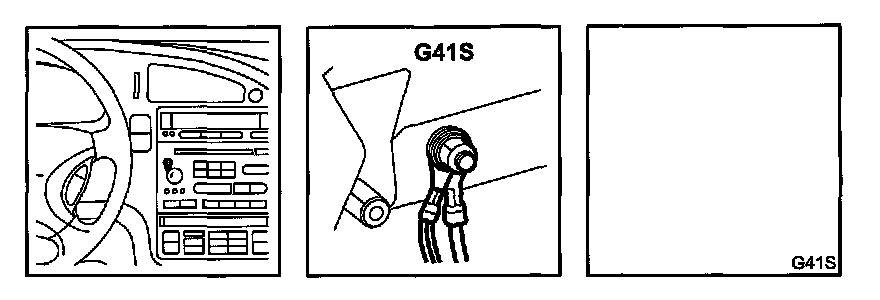

Location:
Left-hand grounding screw in centre of knee protection bar (in cabin)

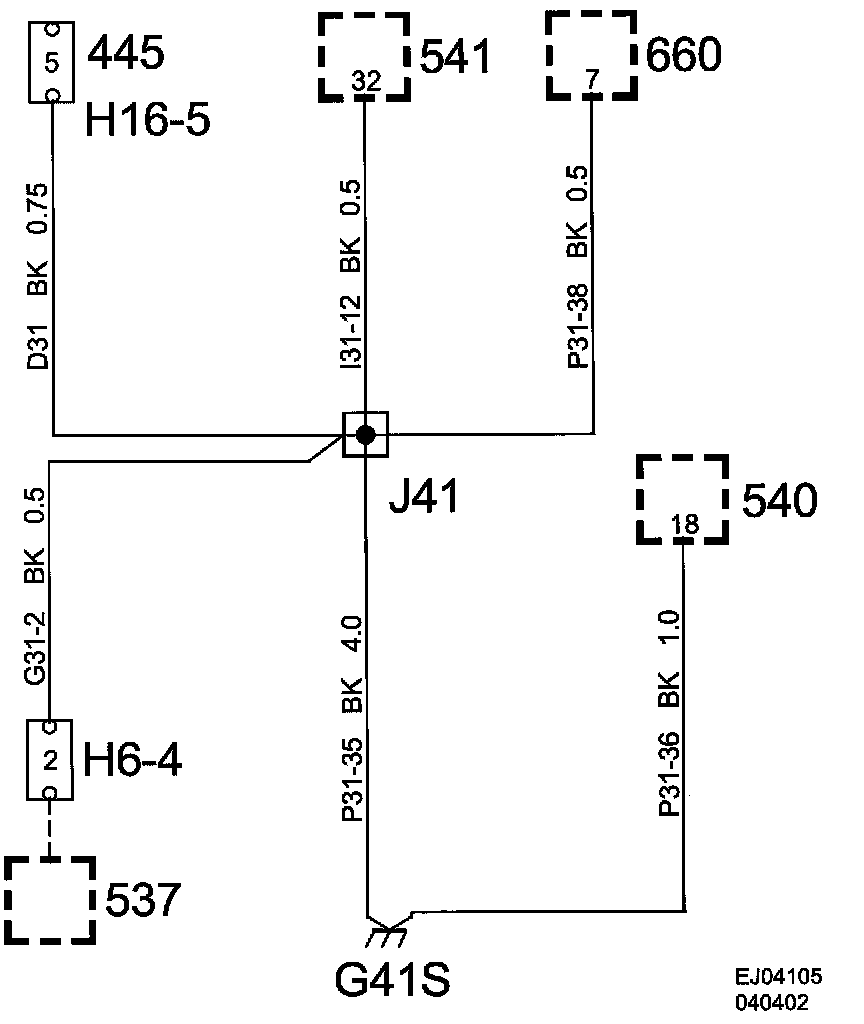

Grounding Point G41S:

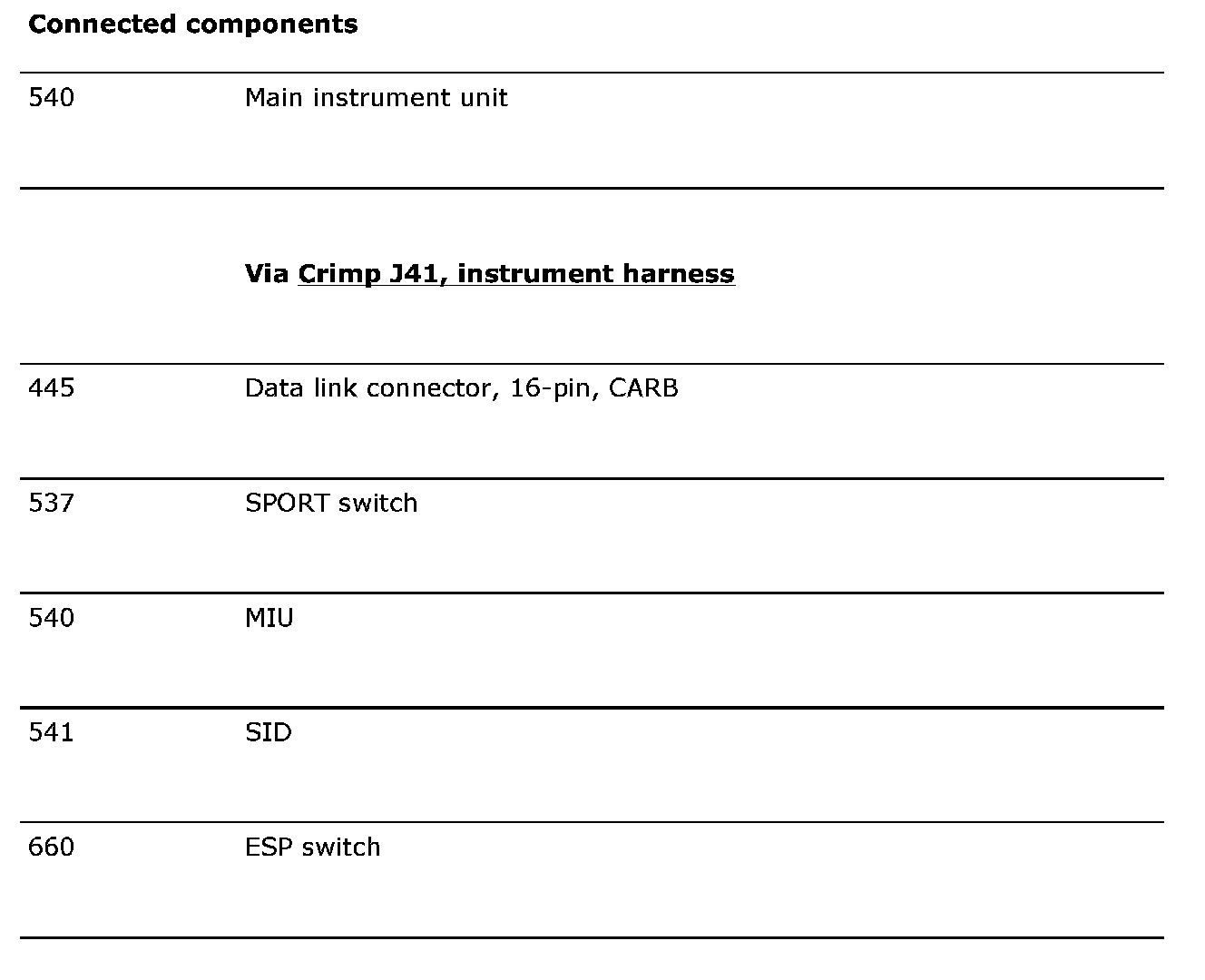

Connected Components:
