Home
>>
Saab
>>
2005
>>
9-5 Linear (9600) L4-2.3L Turbo (2.3t)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Locations
>>
Ground Locations
>>
Grounding Point, G41P
Grounding Point, G41P

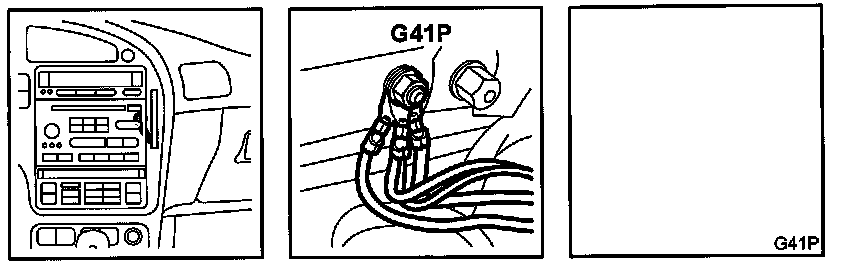

Location:
Left grounding screw on middle of knee member (in cabin)

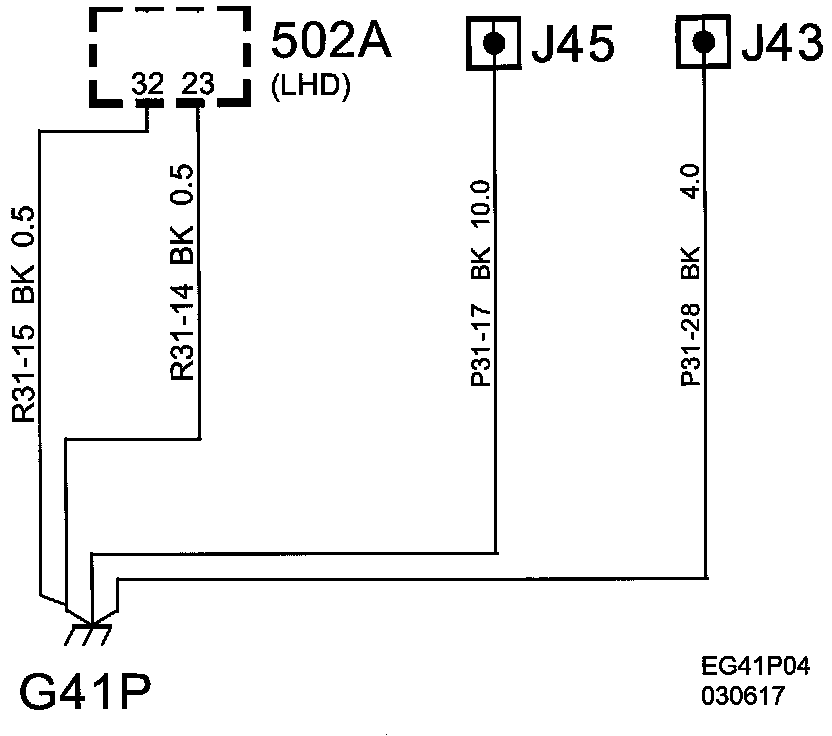

Grounding Point G41P:

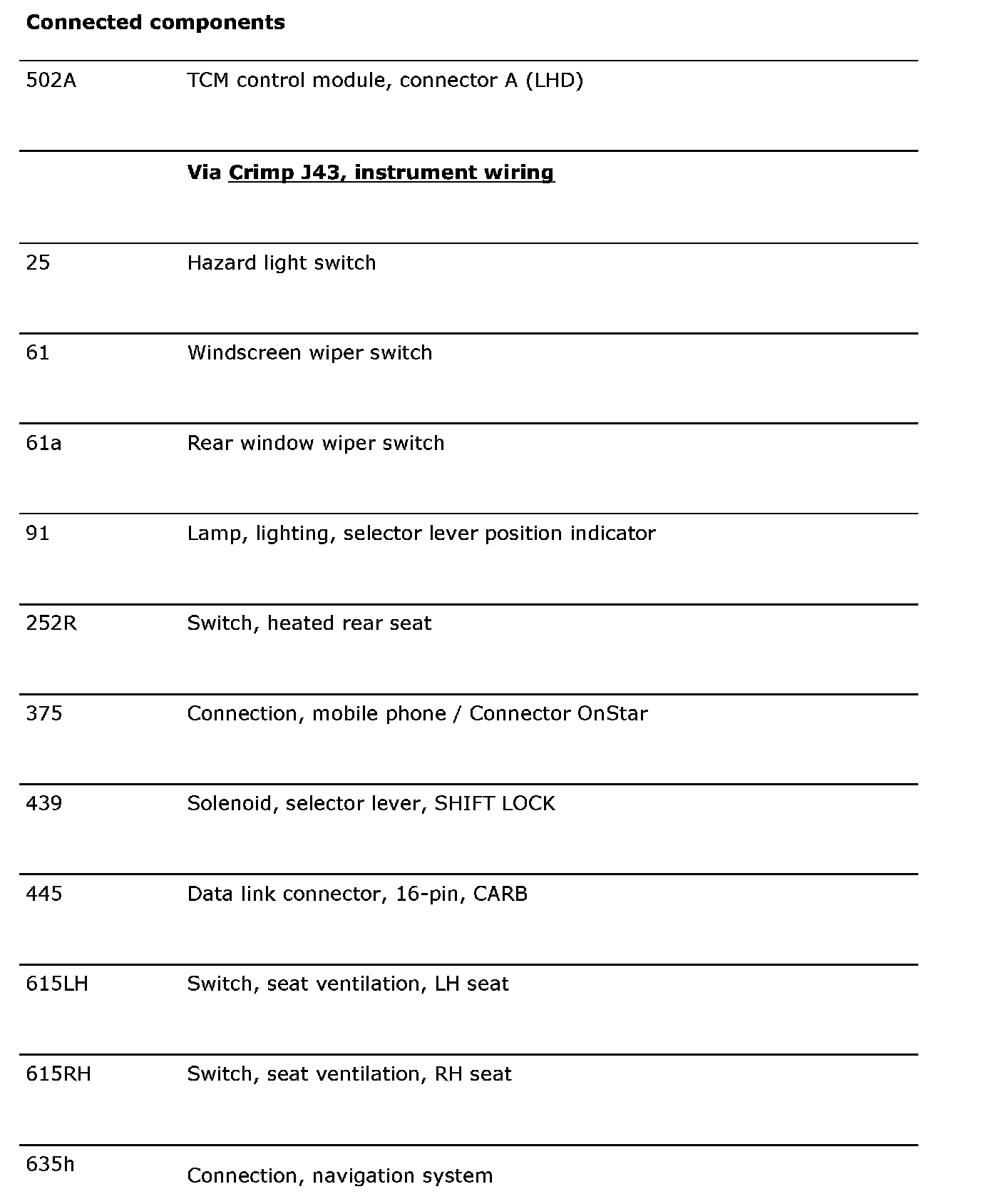

Connected Components (Part 1):

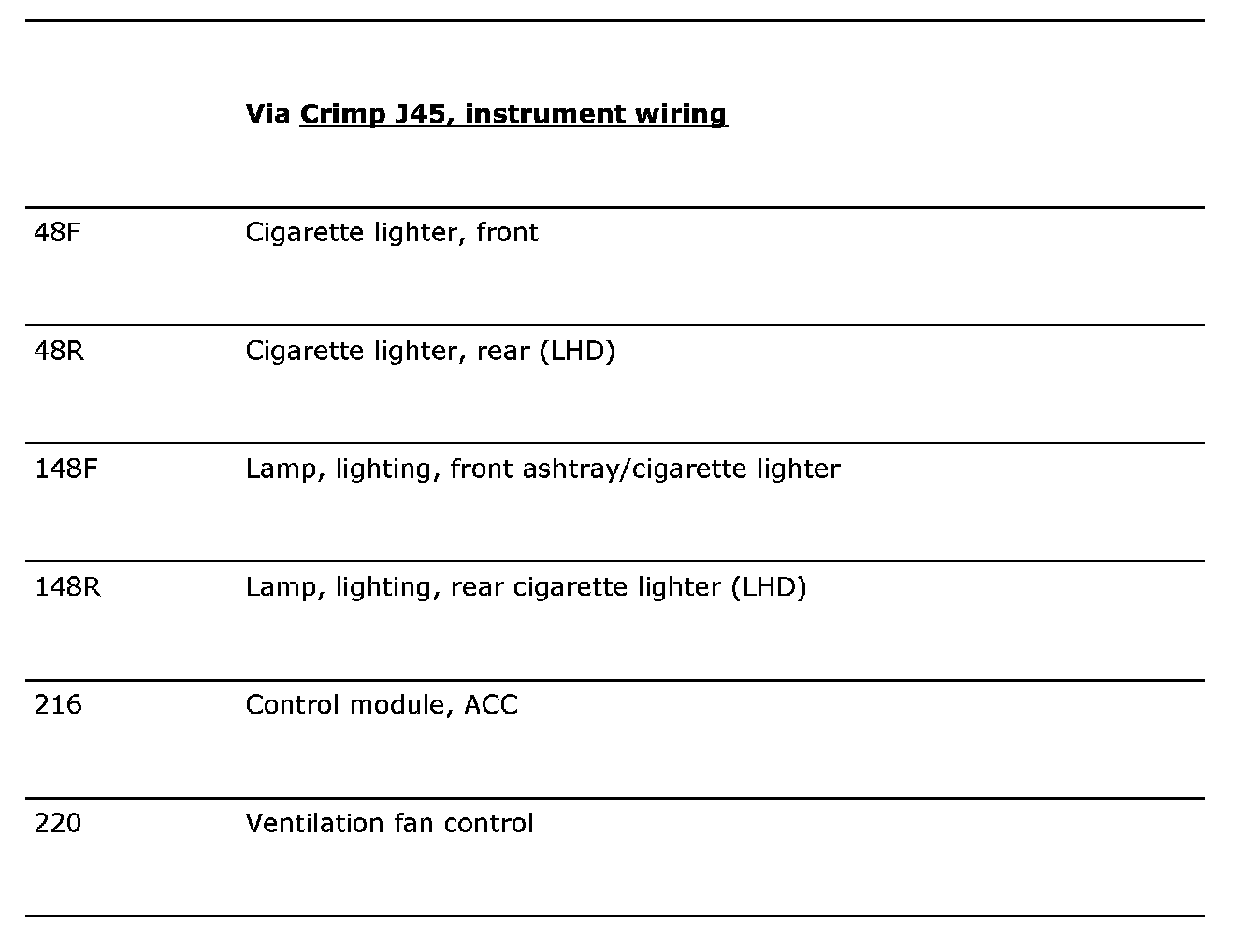

Connected Components (Part 2):
