Components Connected to K-Lead

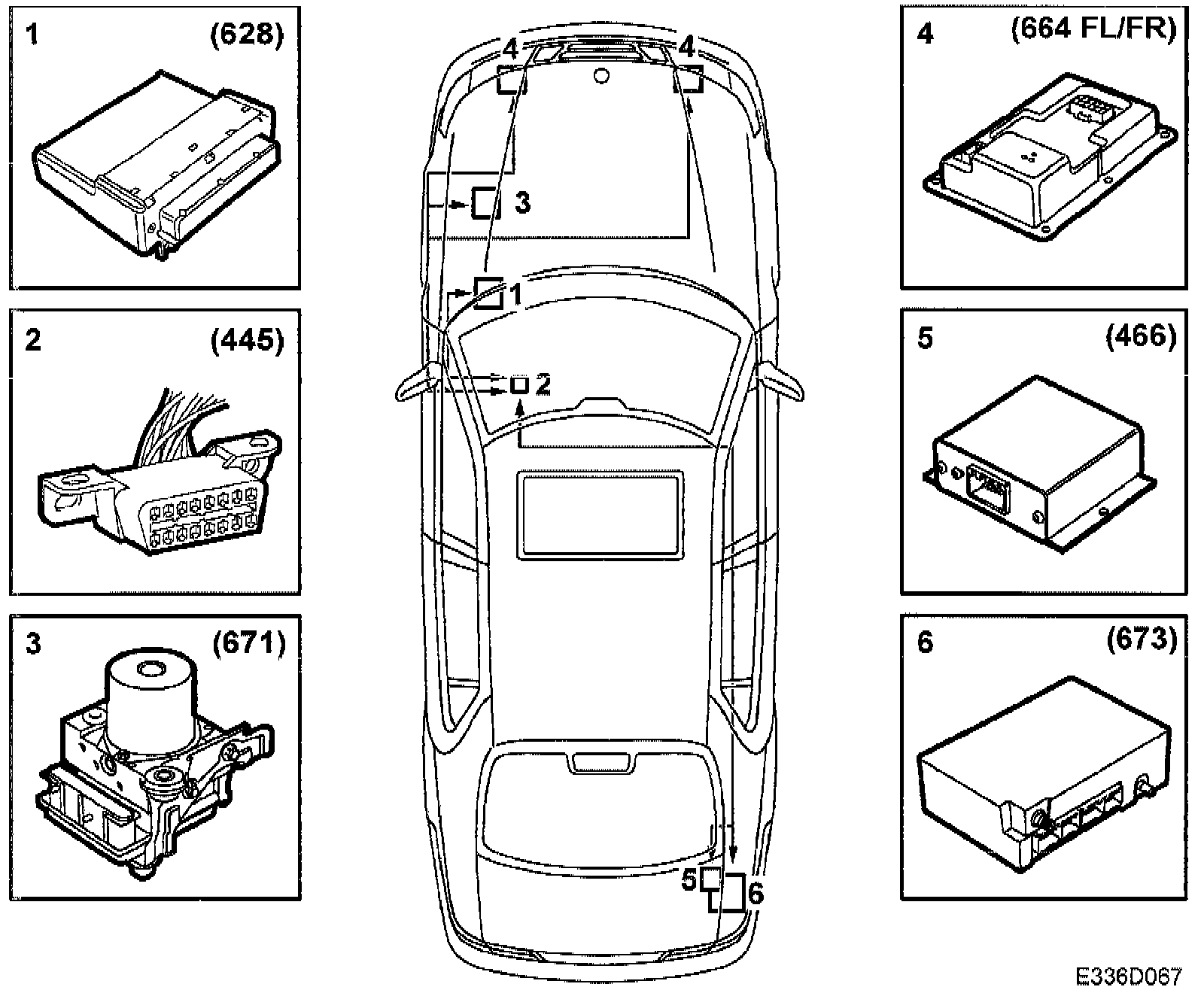

System Overview, Components Connected To K-lead, Petrol






1. DICE (Dashboard Integrated Central Electronics) (628)
2. Data link connector (H16-5/445)
3. ESP (Electronic Stability Program) (671)
4. AHL control module (Automatic Headlamp Levelling) (664) in headlamps with xenon lamp
5. Control module, OnStar, OIM (466)
6. Control module, OnStar, VCIM (673)
