Bus and Diagnostics Communication

System Overview, Bus And Diagnostics Communication, Petrol

System Overview, Function






For further information, see the following:

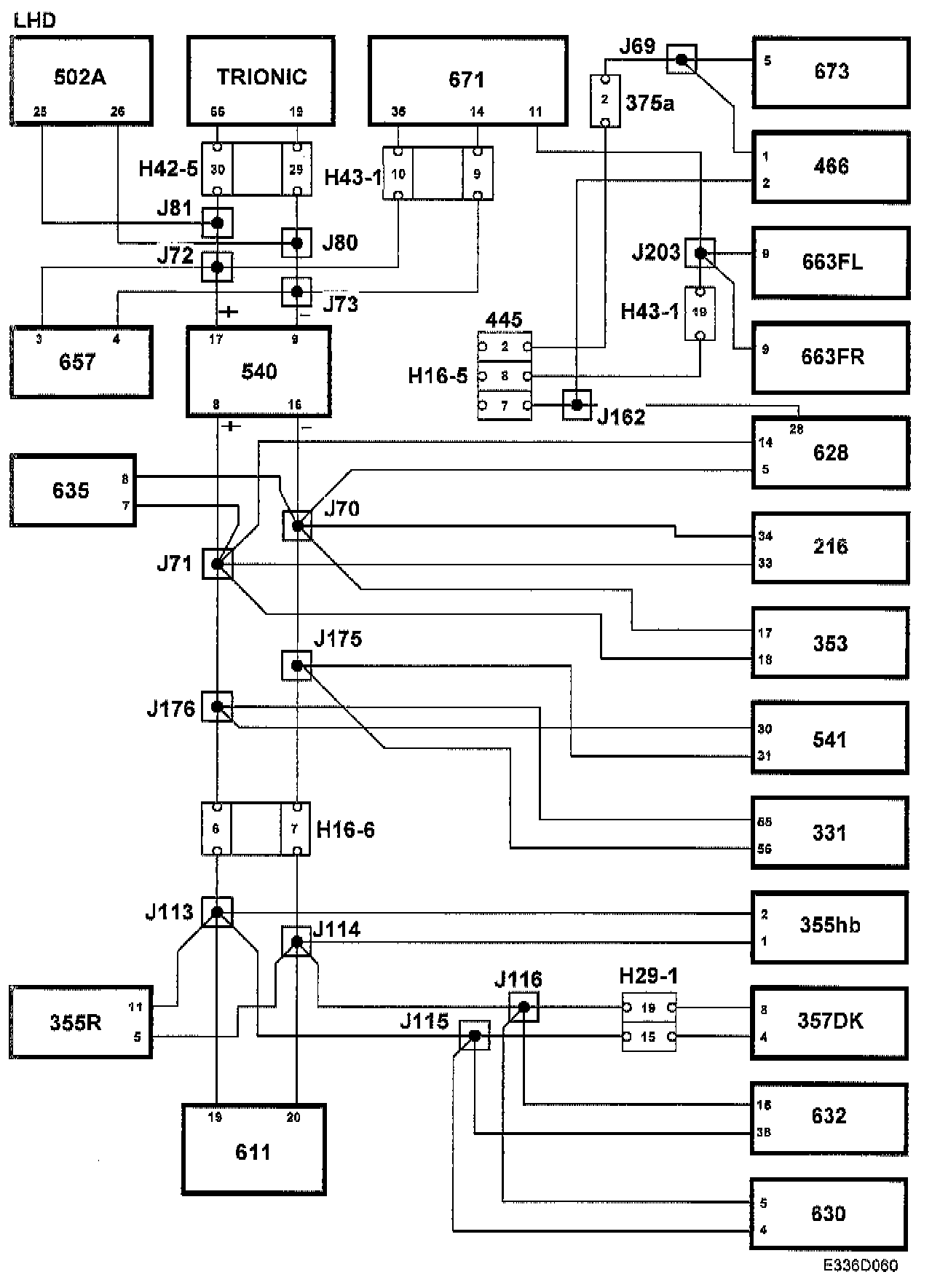

P-bus and I-bus
P Bus and I Bus
Bus diagnosis
Bus Diagnosis
System overview, components connected to K-lead
Components Connected to K-Lead

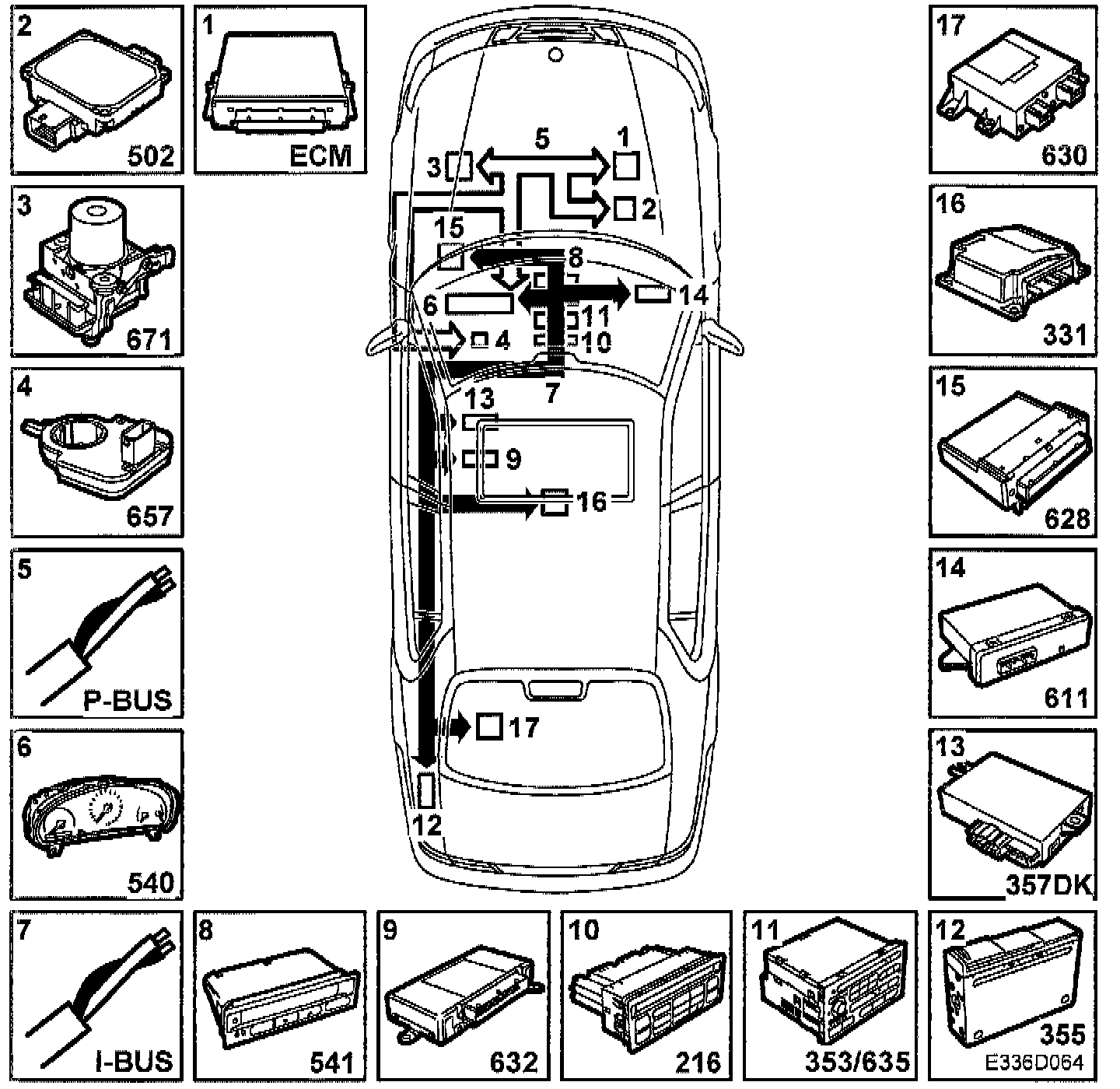

System Overview, Components






1. Trionic, engine management system, ECM (430/589)
2. TCM (Transmission Control Module), control module for automatic gearbox (502)
3. ESP (Stabilizer system) (671)
4. Steering angle sensor, SAS (657)
5. P-bus (Powertrain bus)
6. MIU (Main Instrument Unit) (540)
7. I-bus (Instrument bus)
8. SID (Saab Information Display) (541)
9. TWICE (Theft Warning Integrated Central Electronics) (632)
10. ACC (Automatic Climate Control) (216)
11. Audio system, head unit (353)
12. CDC (CD changer) (355)
13. PSM (Power Seat Memory) (357Dk)
14. PMM (Power Mirror Memory), door mirror memory (611)
15. DICE (Dashboard Integrated Central Electronics) (628)
16. Airbag (SRS) (331)
17. SPA (Saab Parking Assistance) (630)
