PMM (Power Mirror Memory)
PMM (Power Mirror Memory)
Bus Signals, PMM
For a more in-depth description of the car's bus system, see System overview, bus and diagnostic communication, petrol.

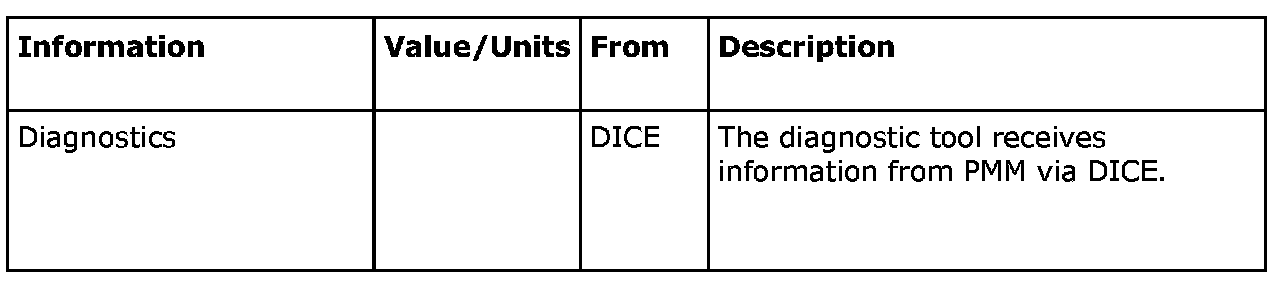

The PMM uses the following information:

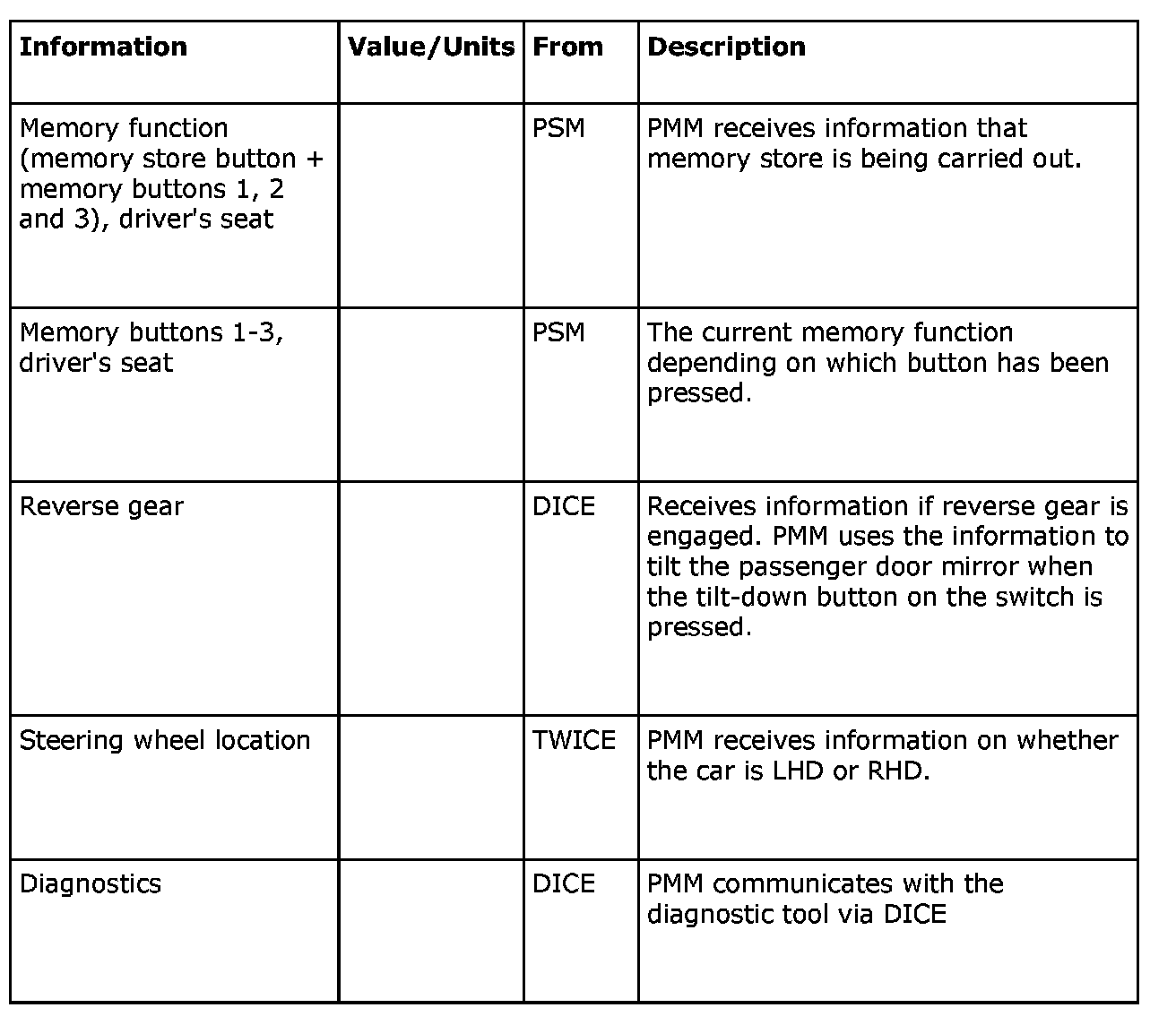

PMM outputs the following information:
