Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Description and Operation >> Bus Operation By System >> Bus Messages >> TWICE

TWICE



Bus Messages, TWICE
For a further description of the car's bus system, see System overview, bus and diagnostics communication, petrol.

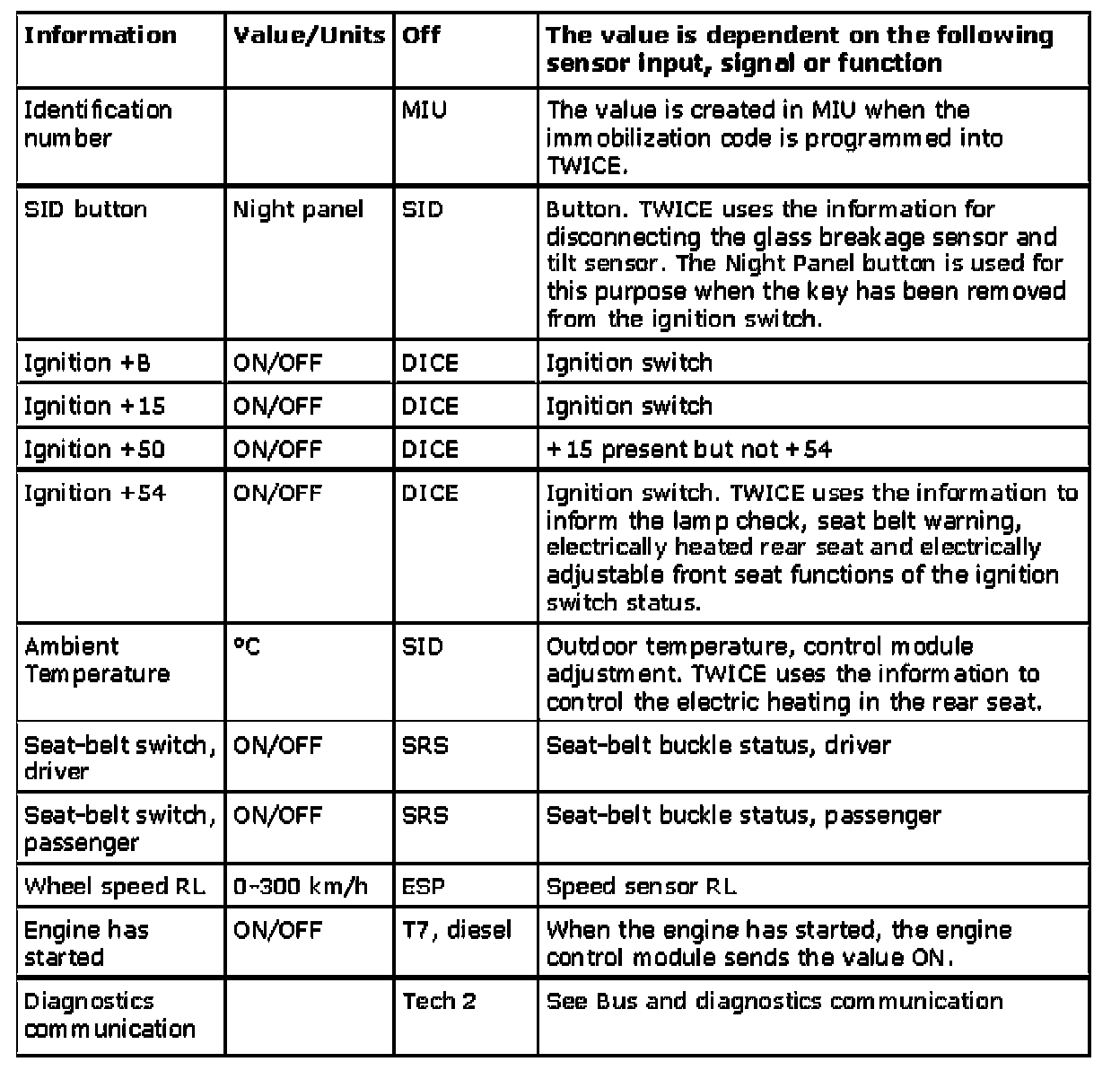

TWICE Uses The Following Information






TWICE Sends Out The Following Information

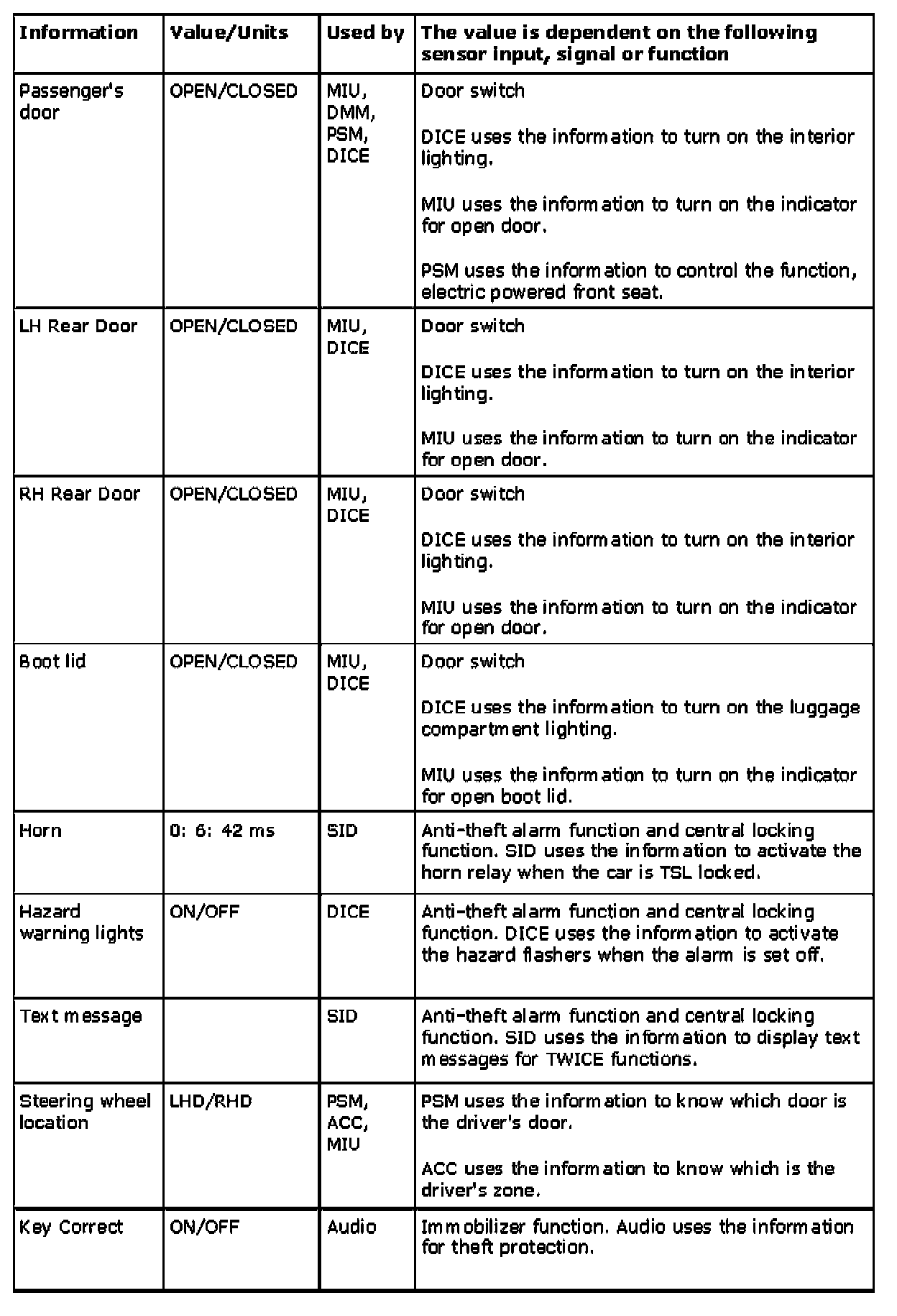

Part 1:

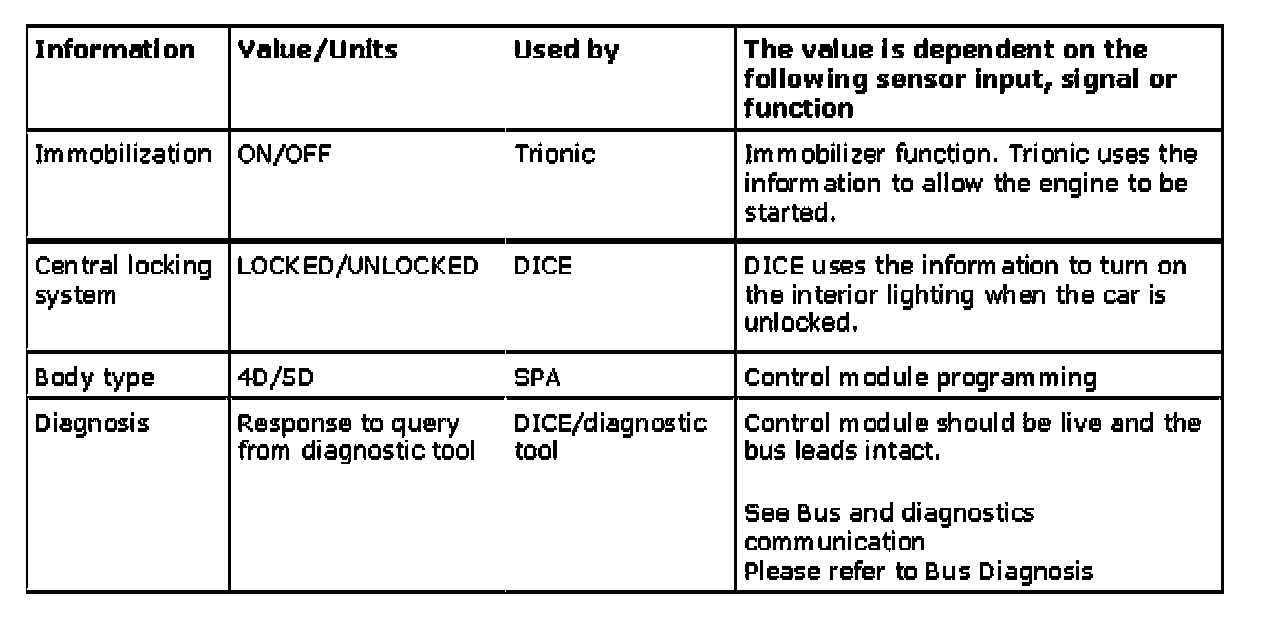

Part 2:

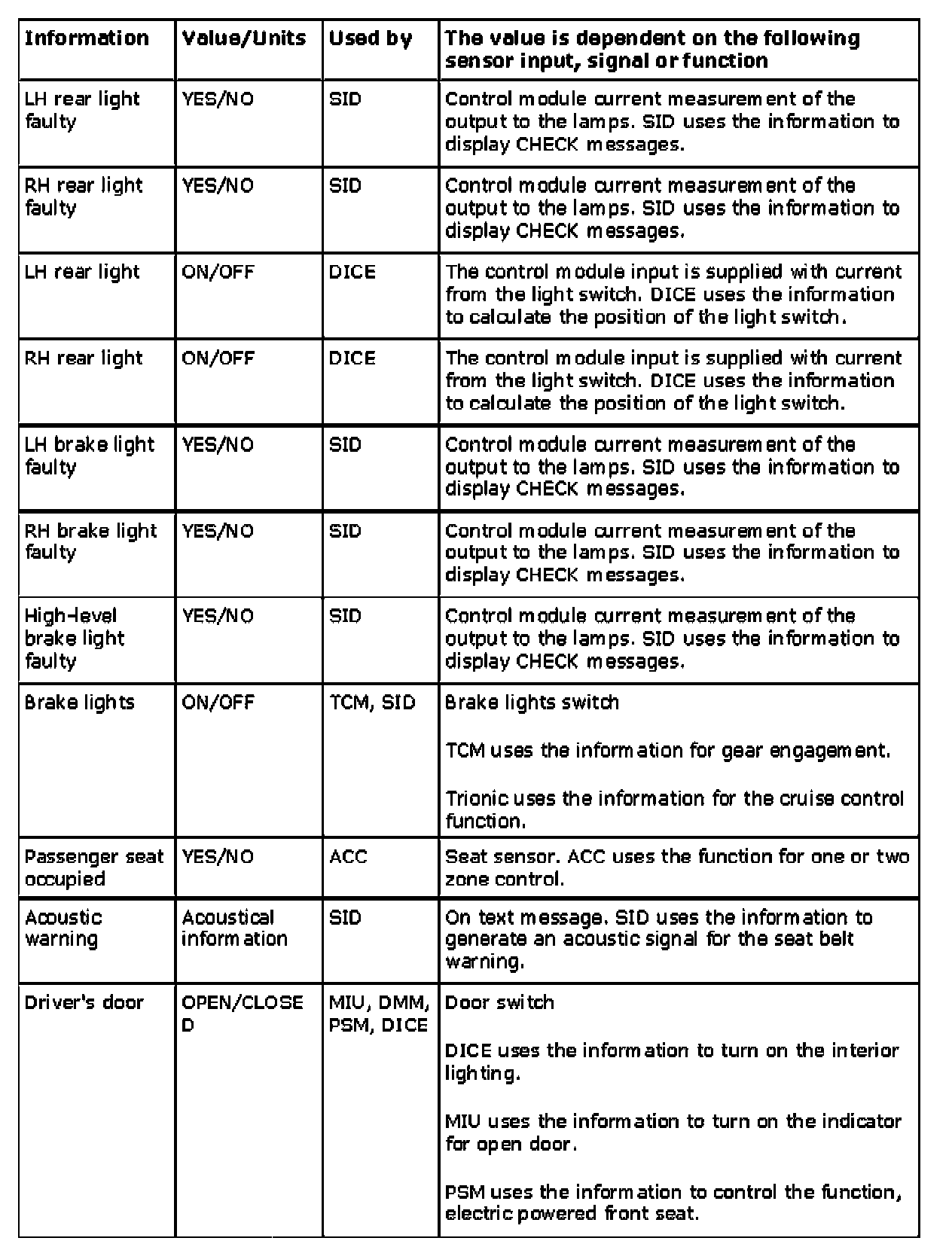

Part 3:
