TCM



Bus Messages, TCM

For further information on the bus, see System overview, bus and diagnostic communication, petrol

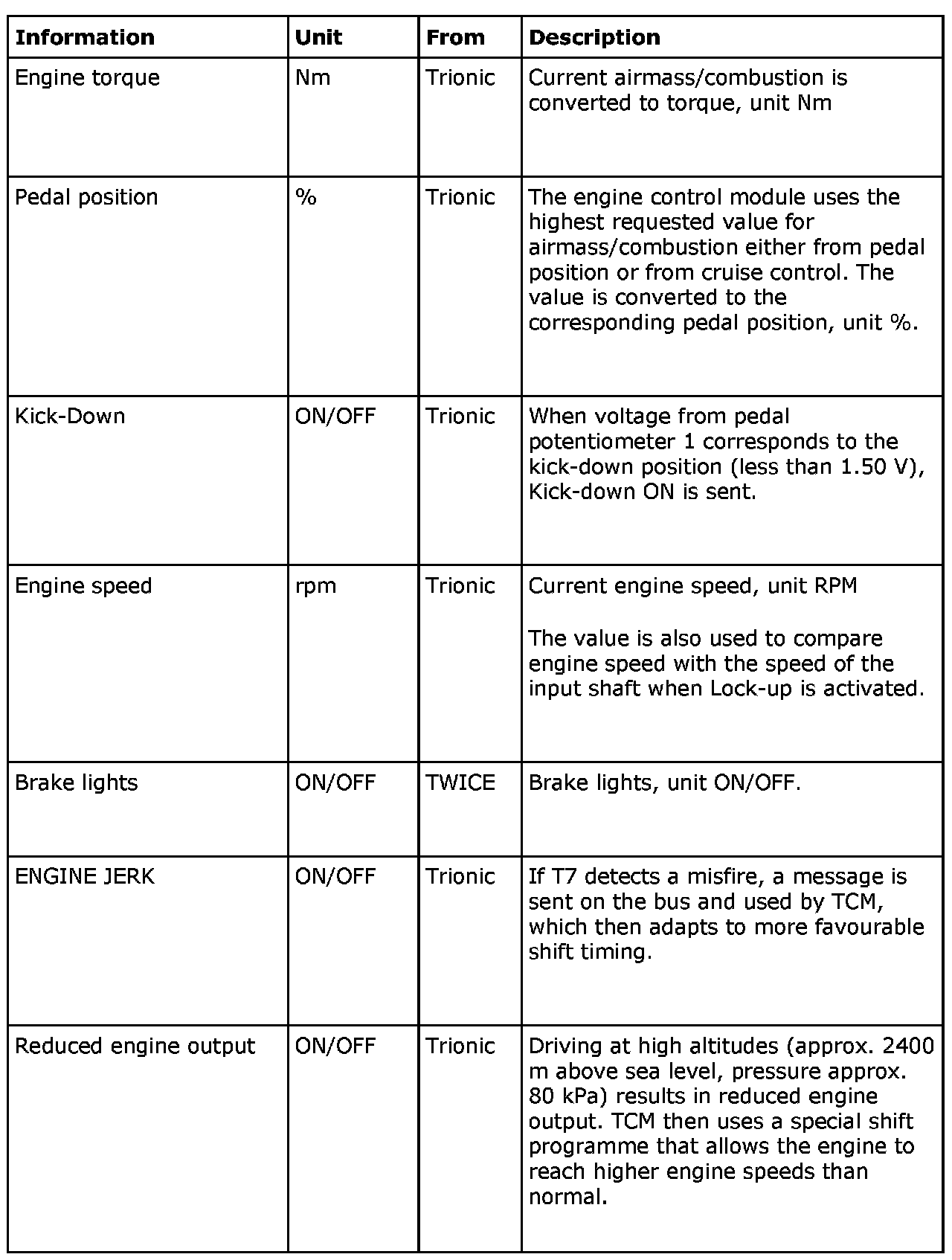

TCM uses the following information:

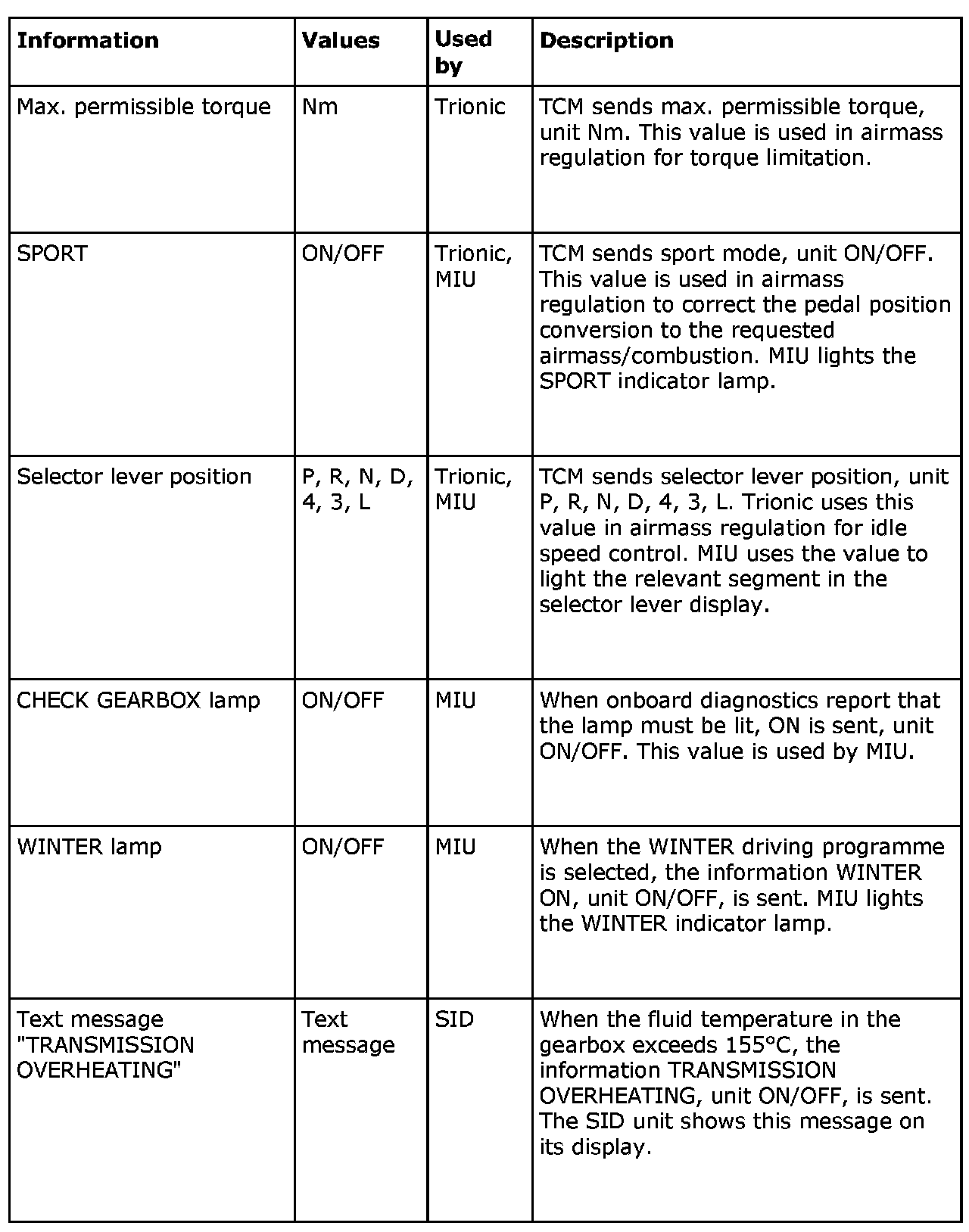

TCM sends the following information:
