Main Instrument Unit



Bus Message, Main Instrument Unit
For a further description of the car's bus system, see System overview, bus and diagnostics communication, petrol.

The MIU Uses The Following Information:

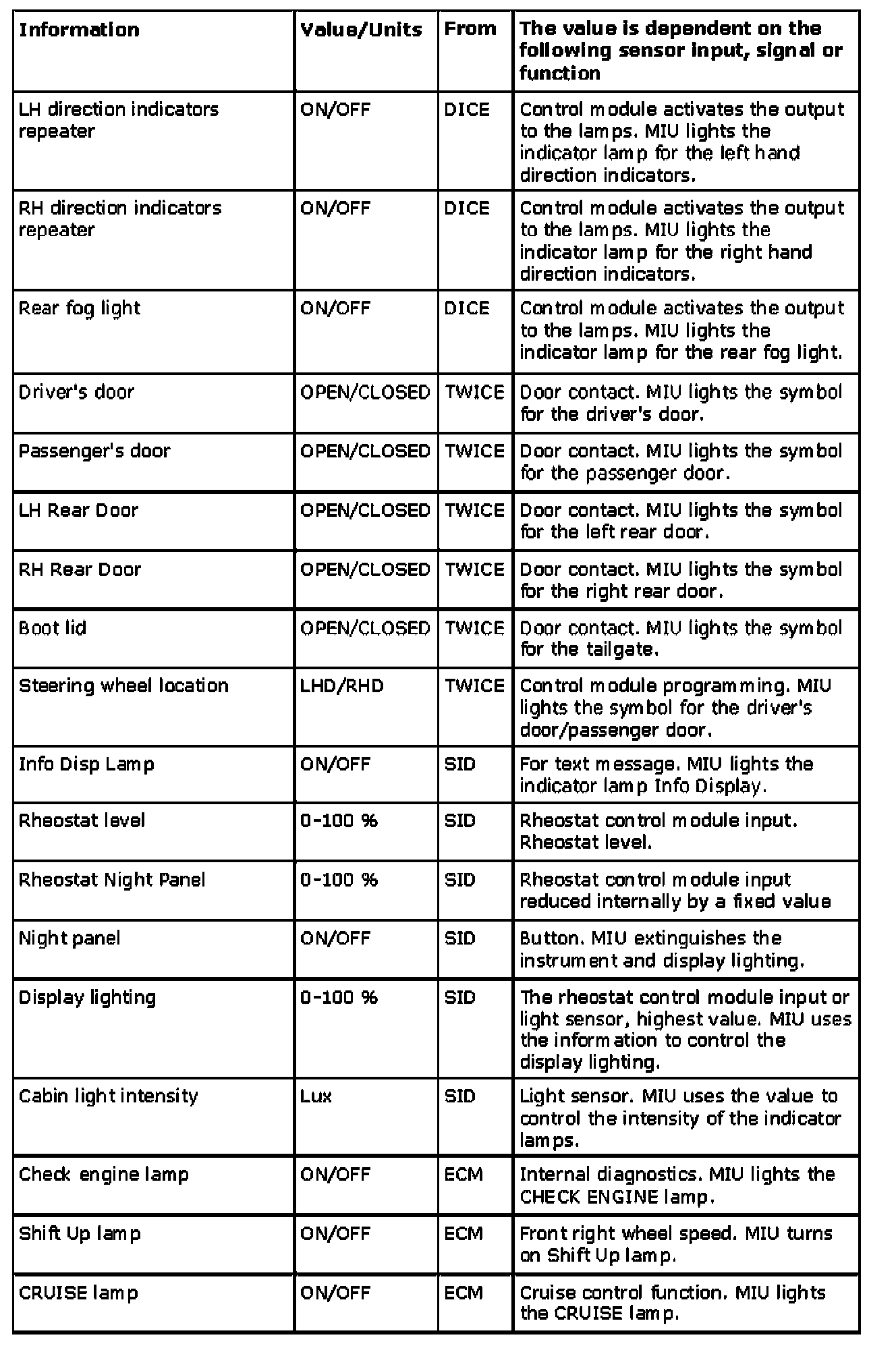

Part 1:

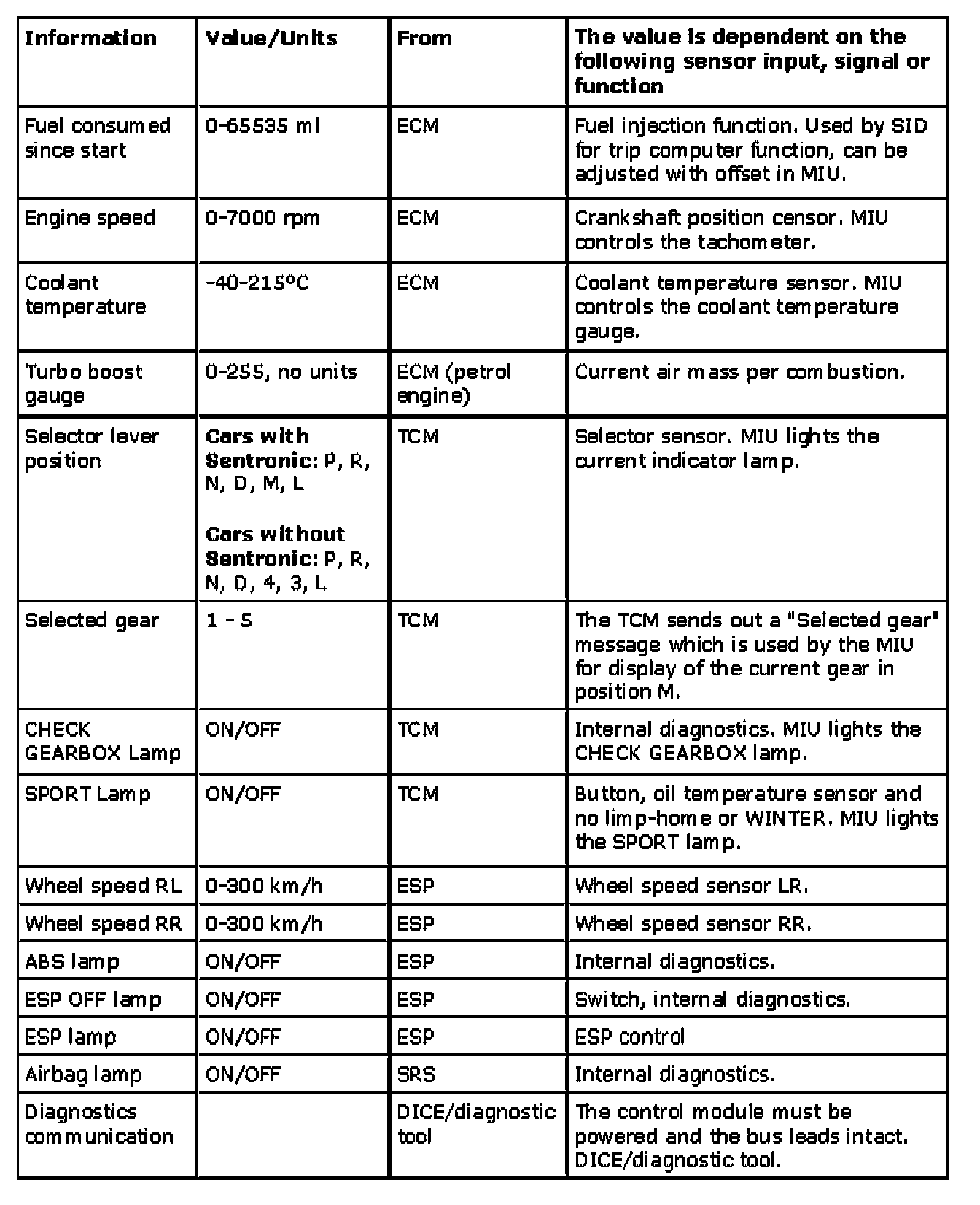

Part 2:






The MIU Sends The Following Information:
