Lighting (DICE, TWICE, SID)



Bus Messages, Lighting (DICE, TWICE, SID)

For further information on the bus, see System overview, bus and diagnostic communication, petrol

Bus messages containing lighting information, see the following.

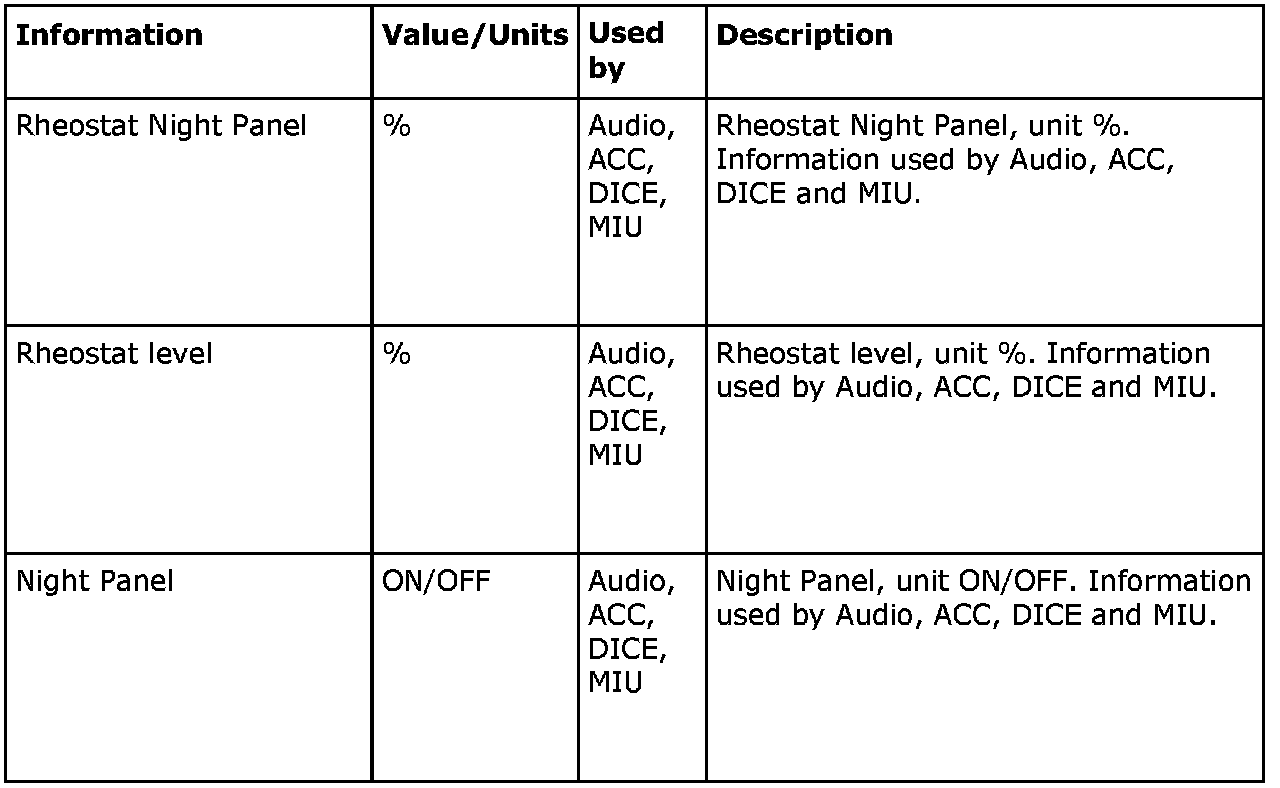

DICE sends the following information, lighting:

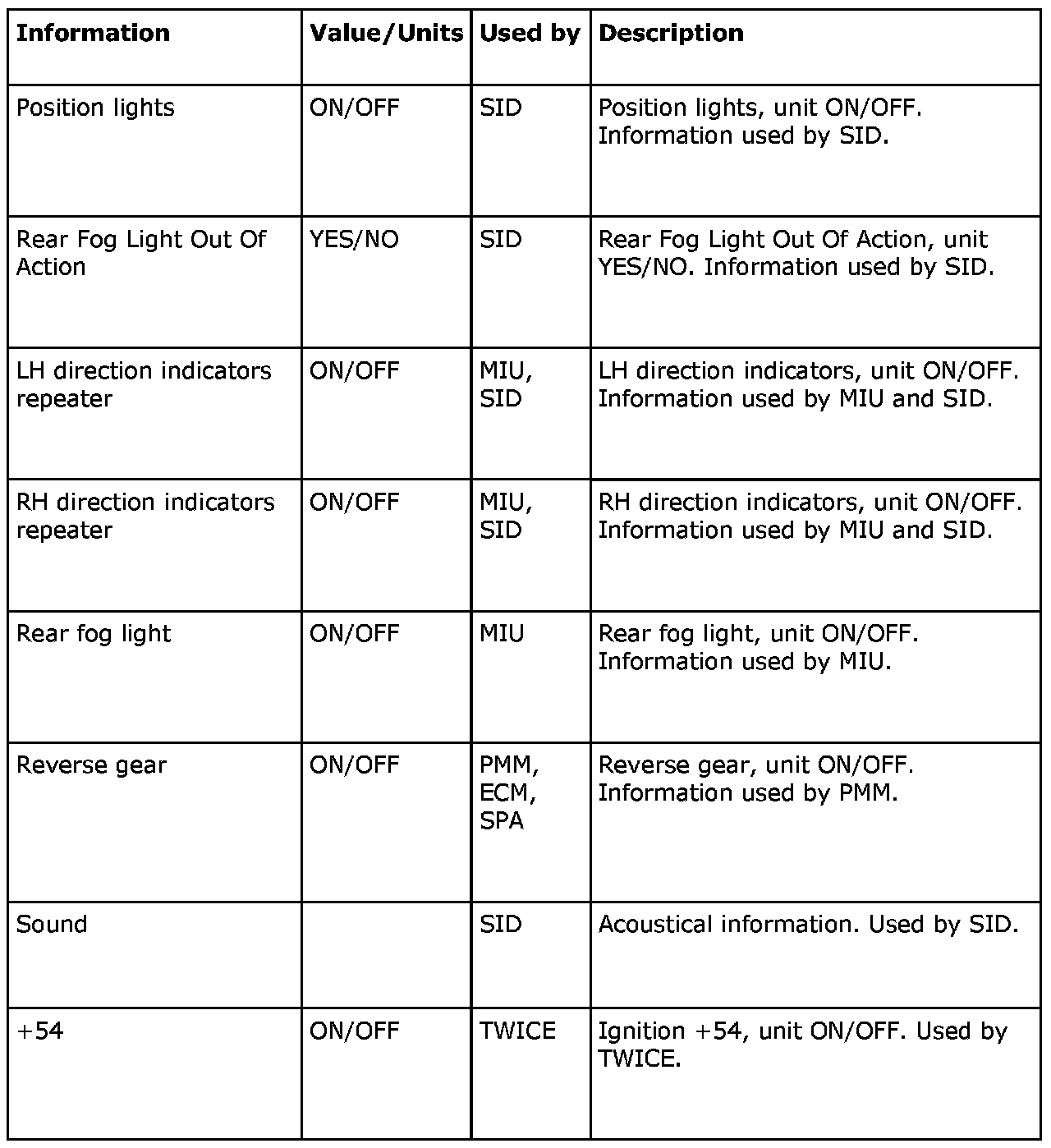

TWICE sends the following information, lighting:


Part 1:

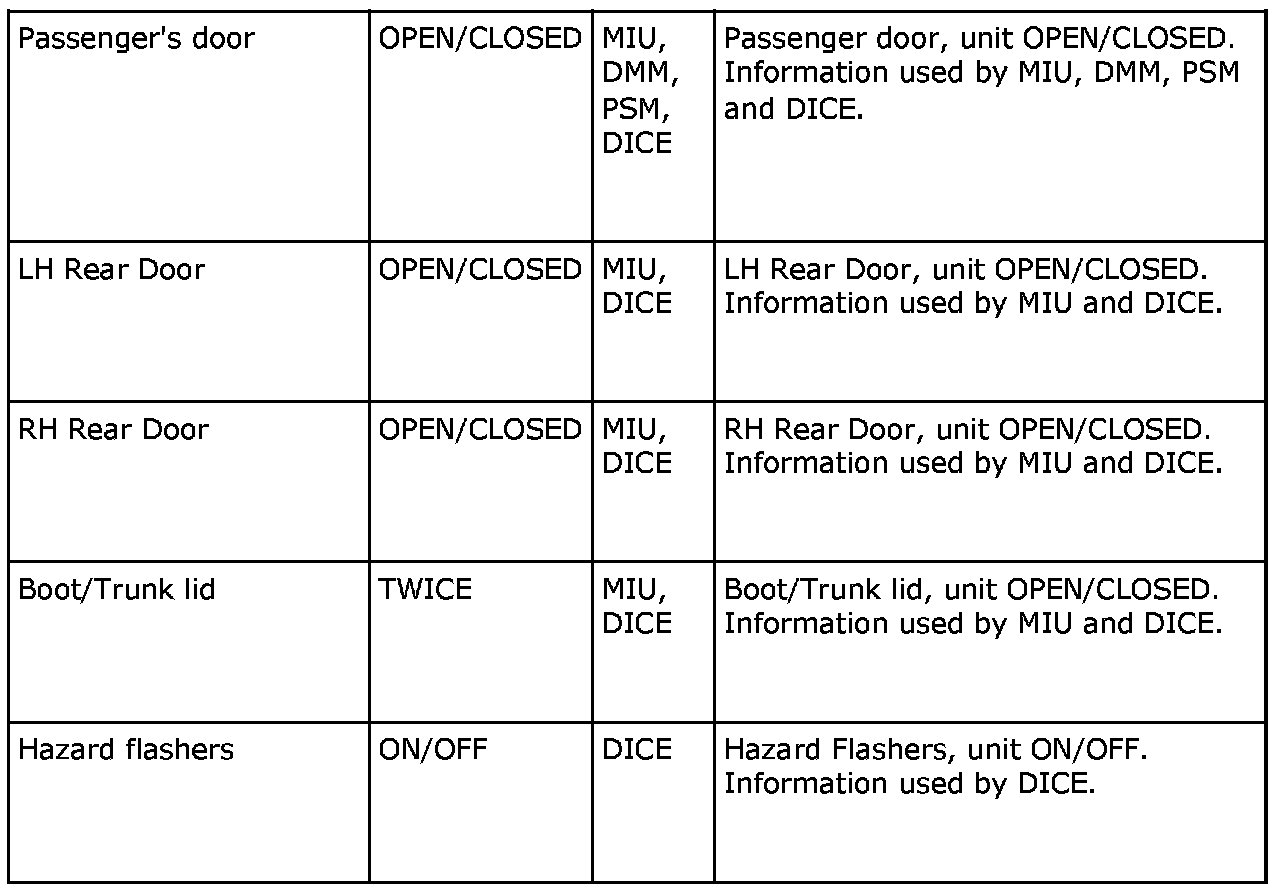

Part 2:






SID sends the following information, lighting:
