Information Display (SID)

Bus message, Information Display (SID)

For further information on the bus, see System overview, bus and diagnostic communication, petrol.

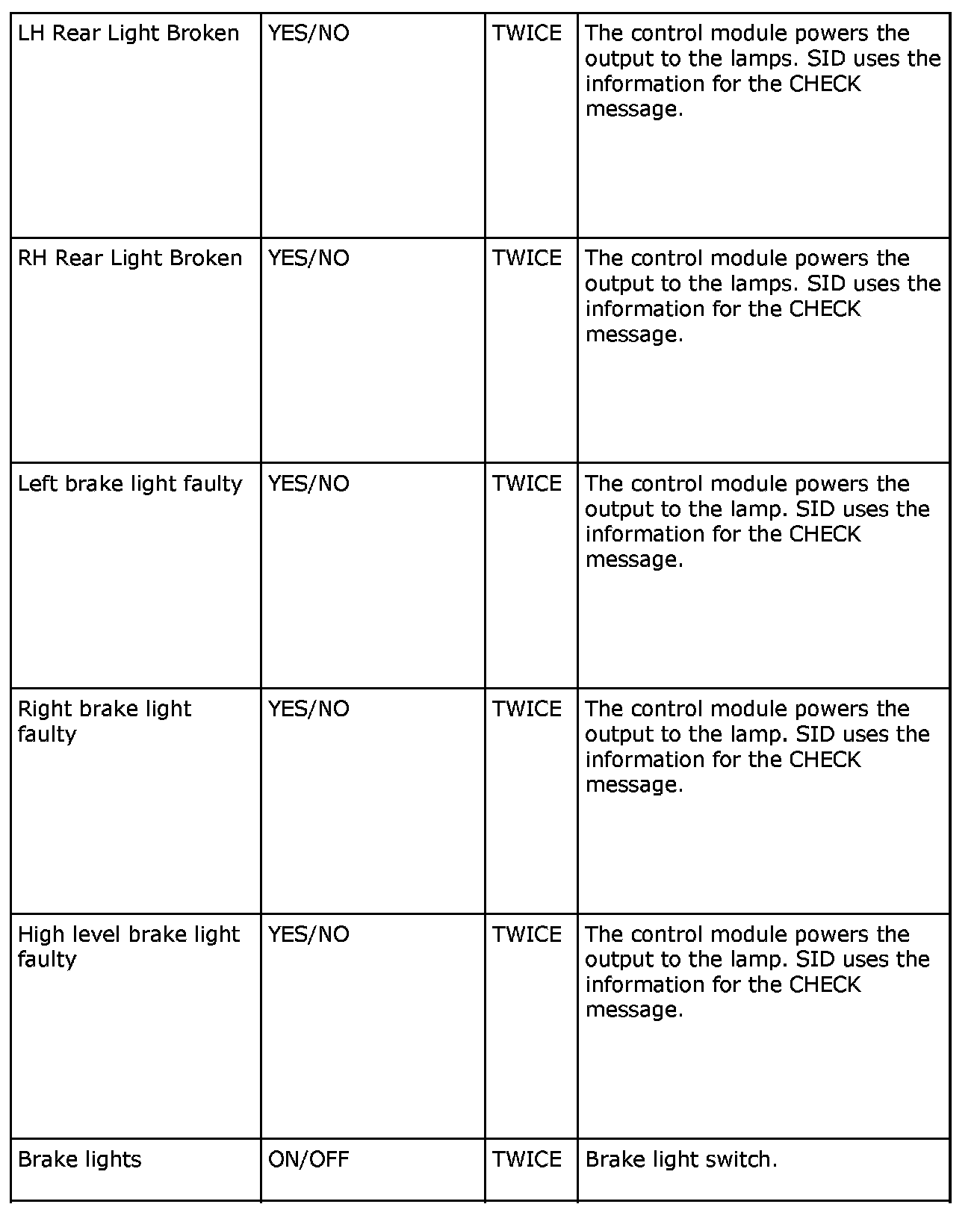

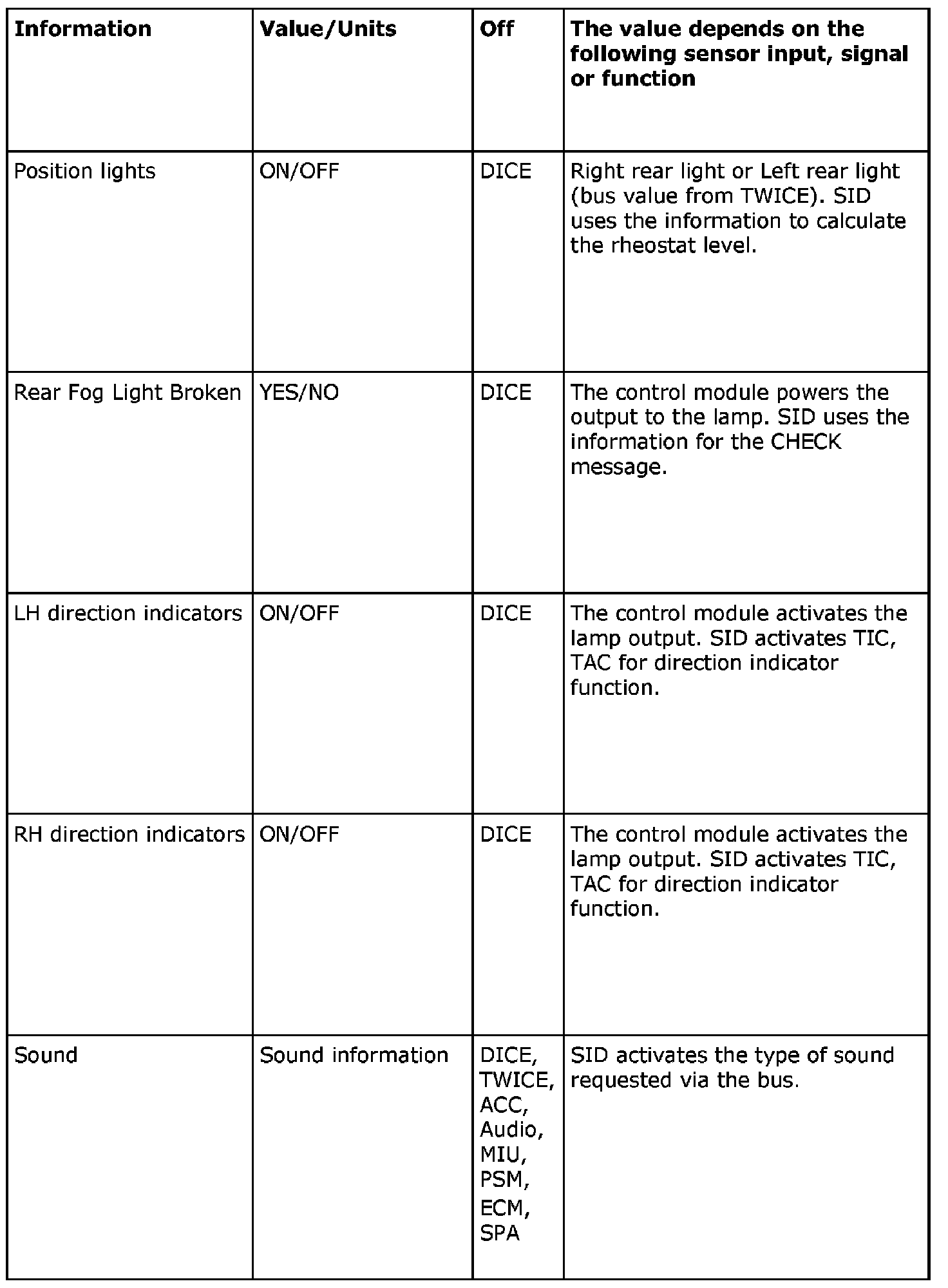

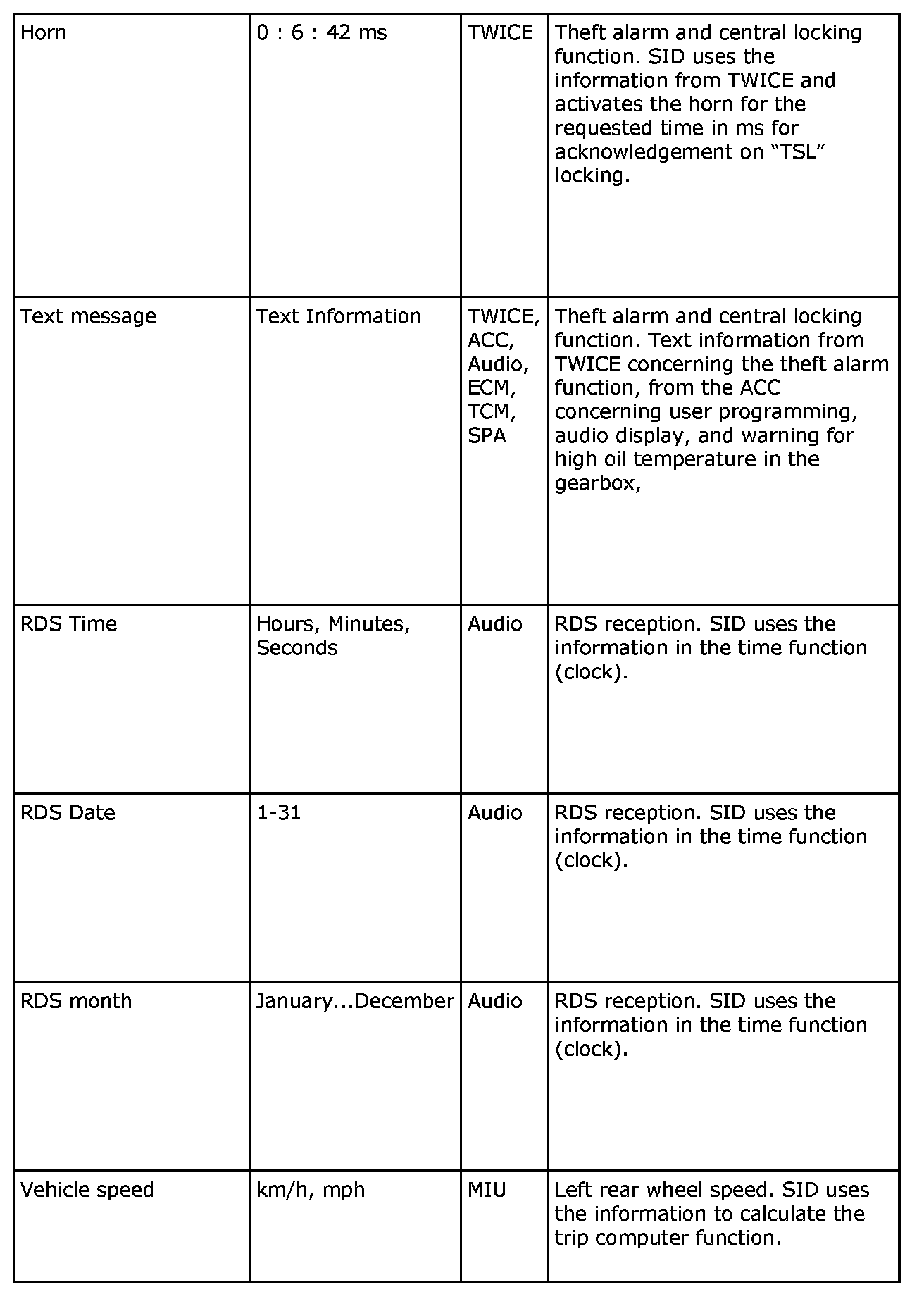

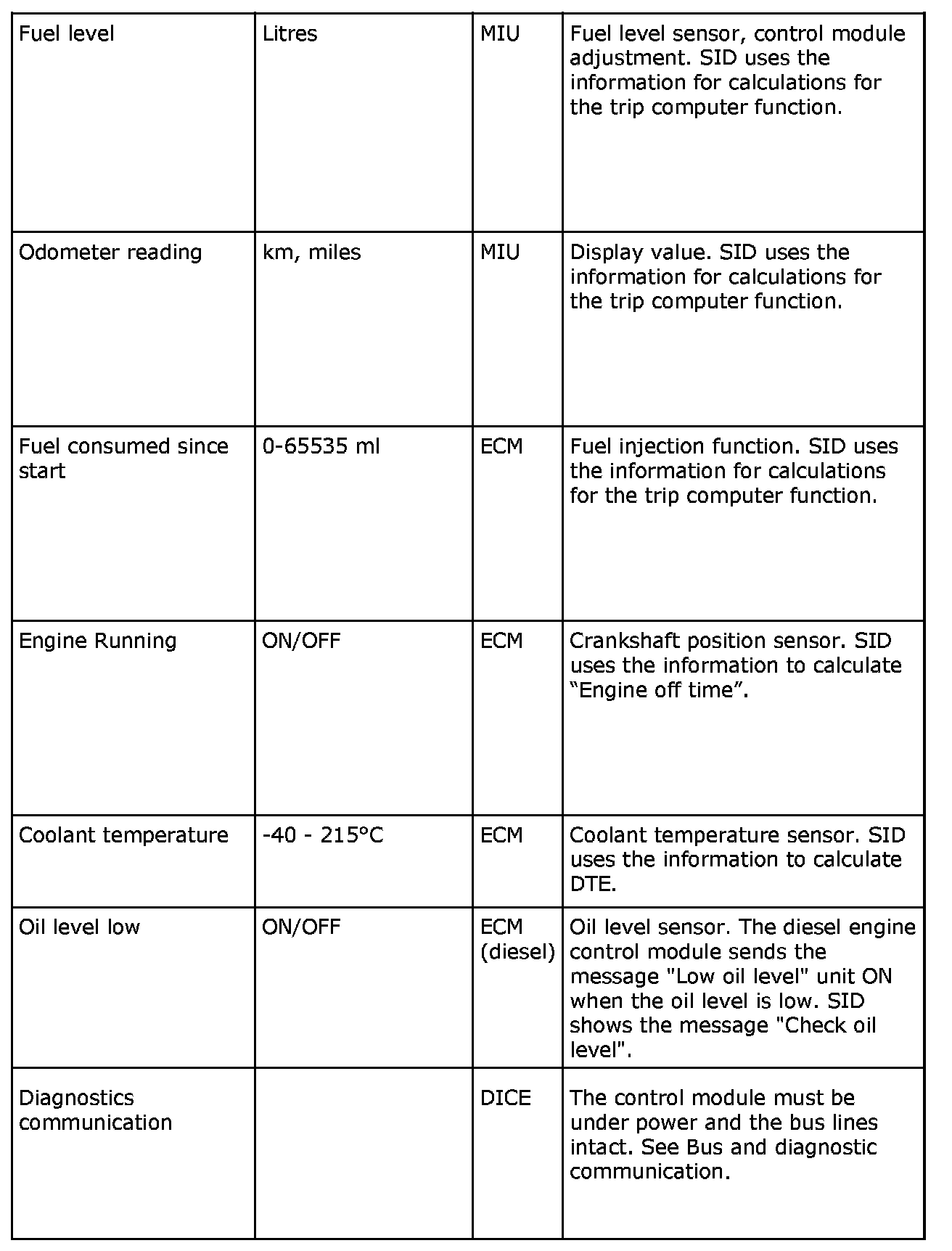

SID uses the following information

Part 1:

Part 2:

Part 3:

Part 4:

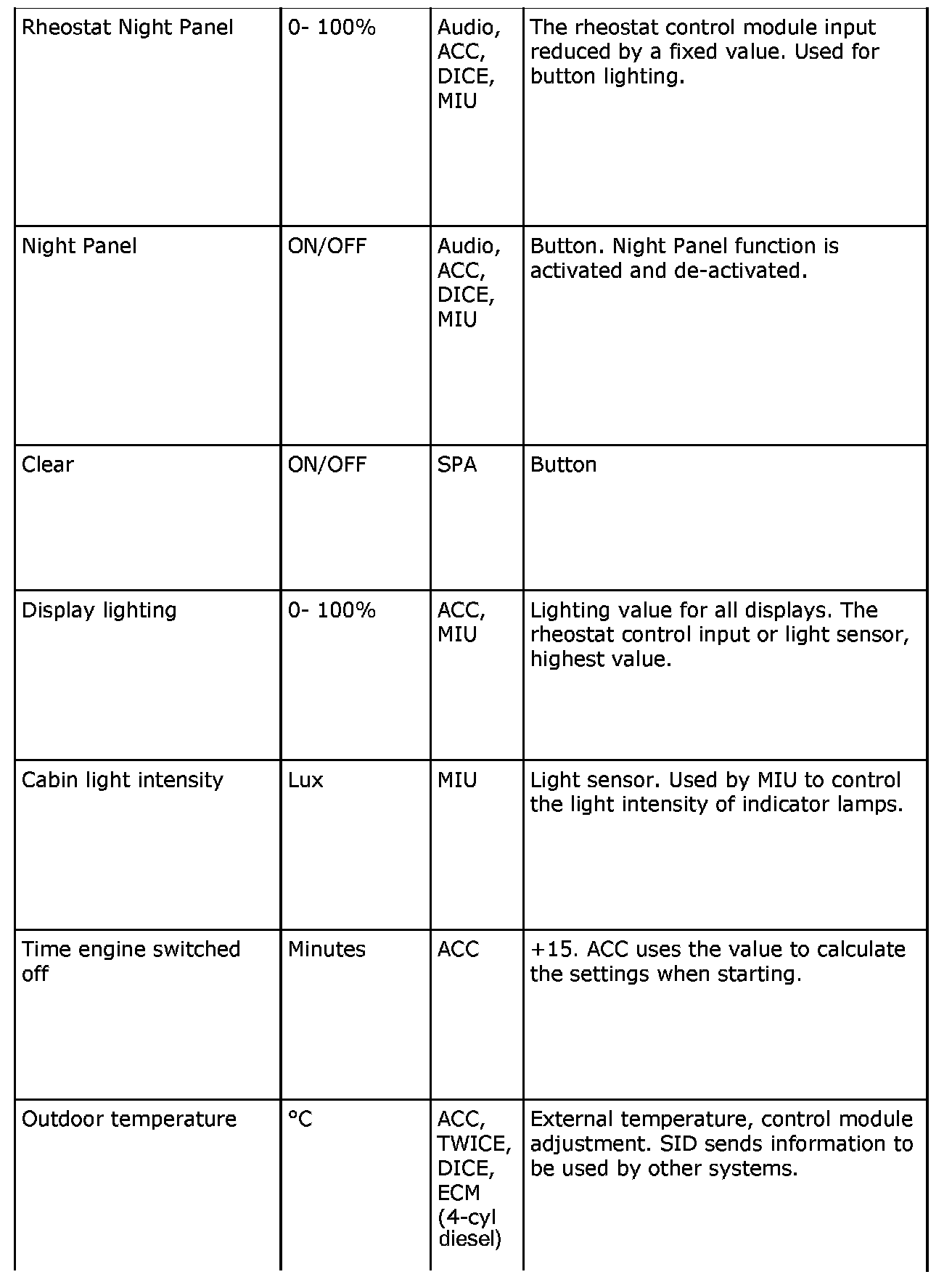

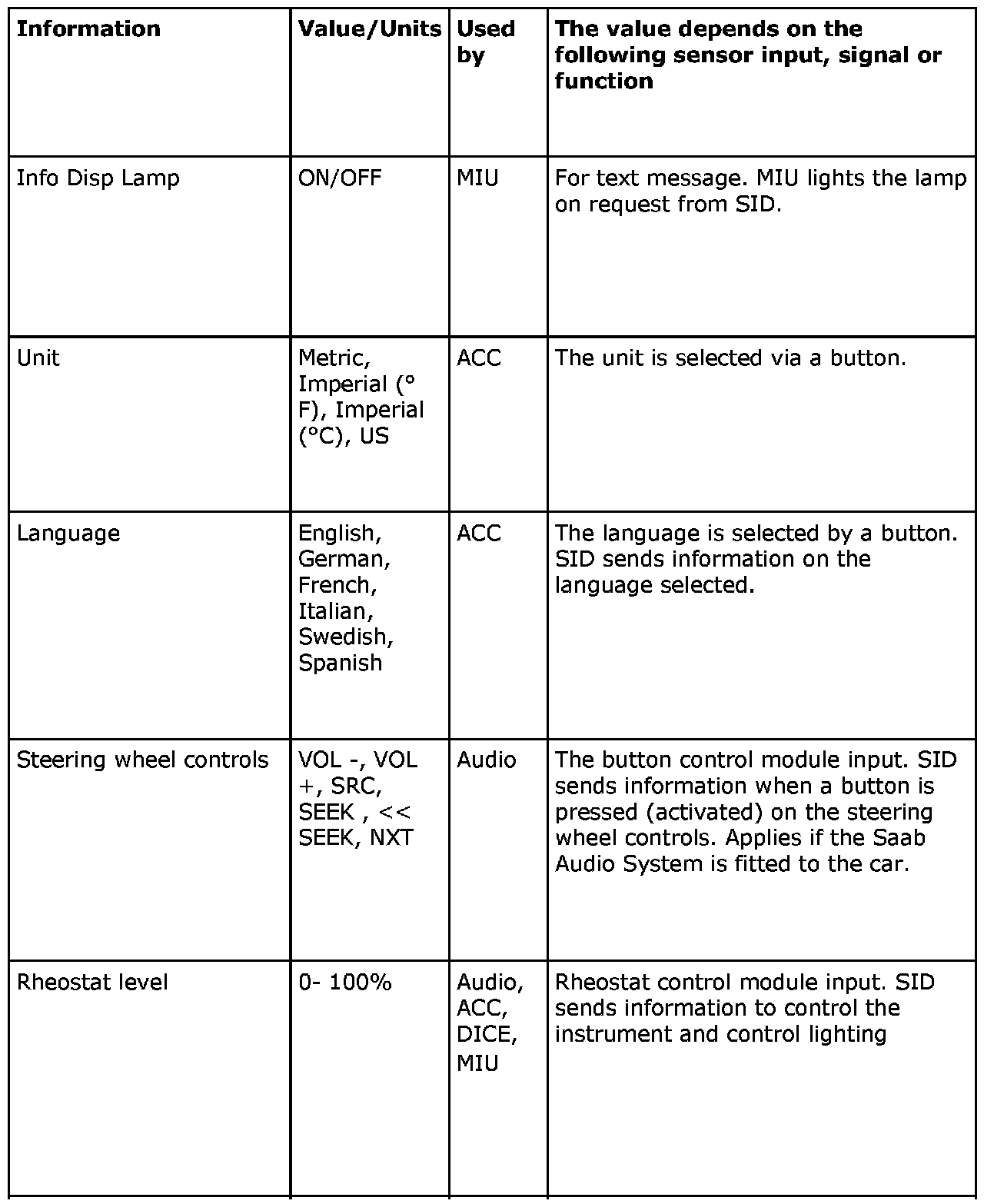

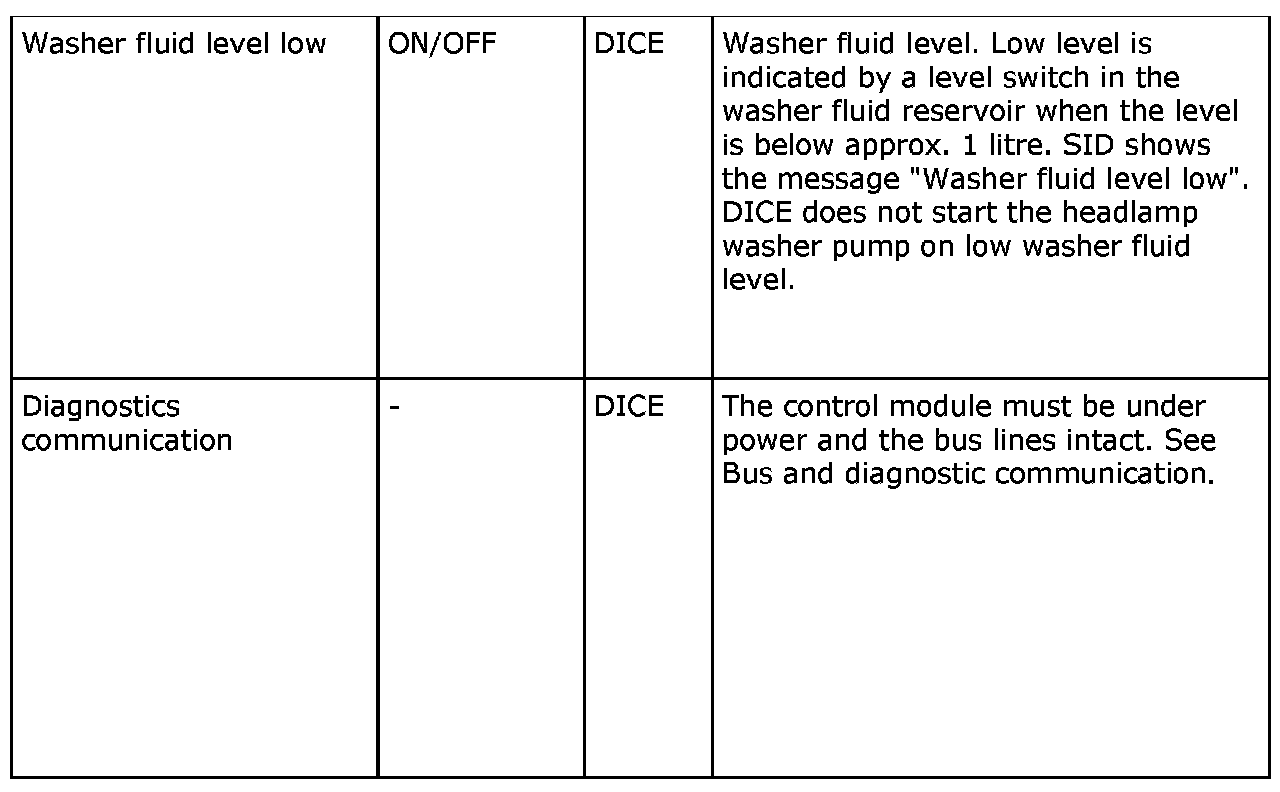

The SID sends out the following information

Part 1:

Part 2:

Part 3:
