Audio Navigation System

Bus Message, Audio Navigation System
For a further description of the car's bus system, see System overview, bus and diagnostics communication, petrol.

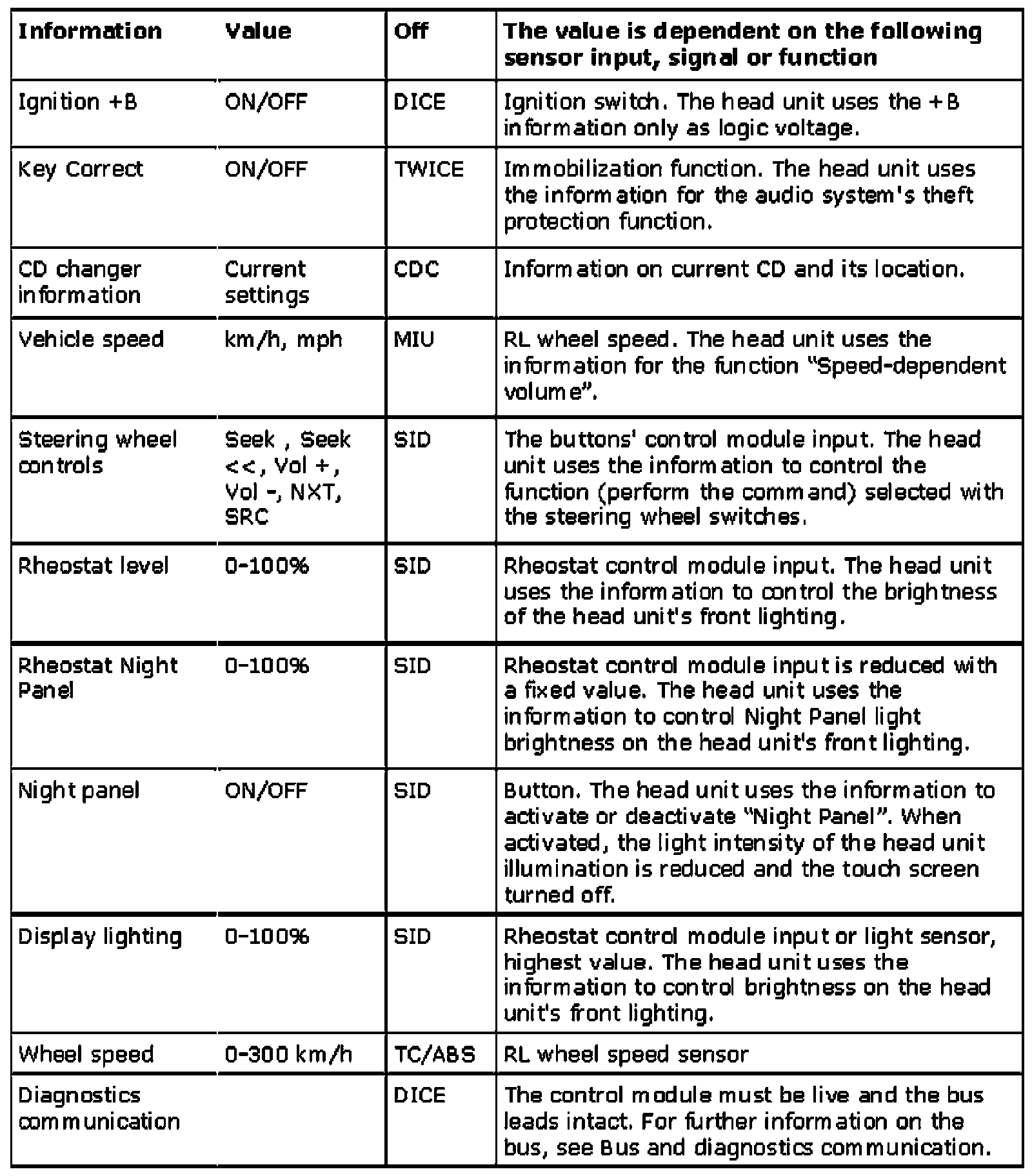

The Head Unit Uses The Following Information

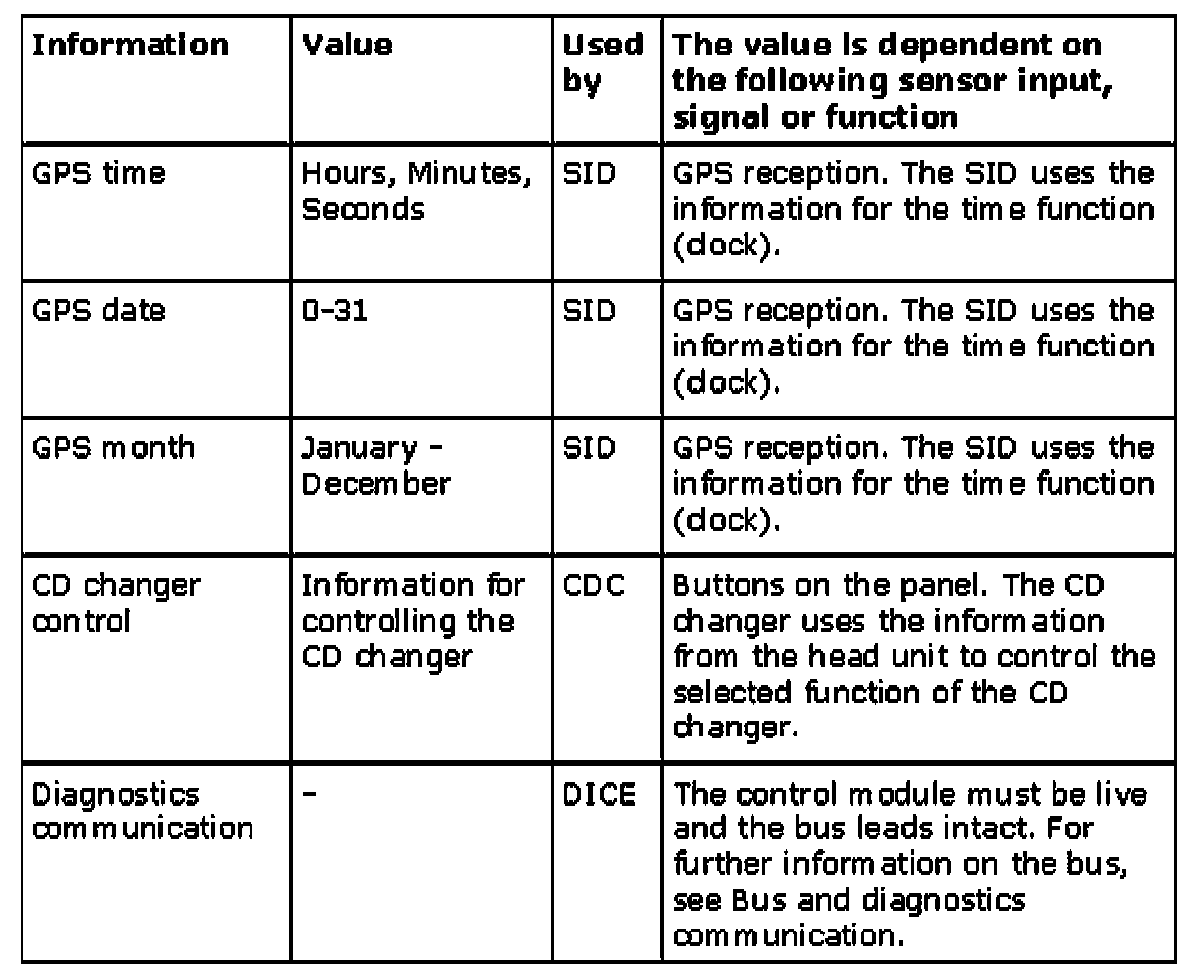

The Head Unit Transmits The Following Information
