Grounding Point G45 (Only 5D)

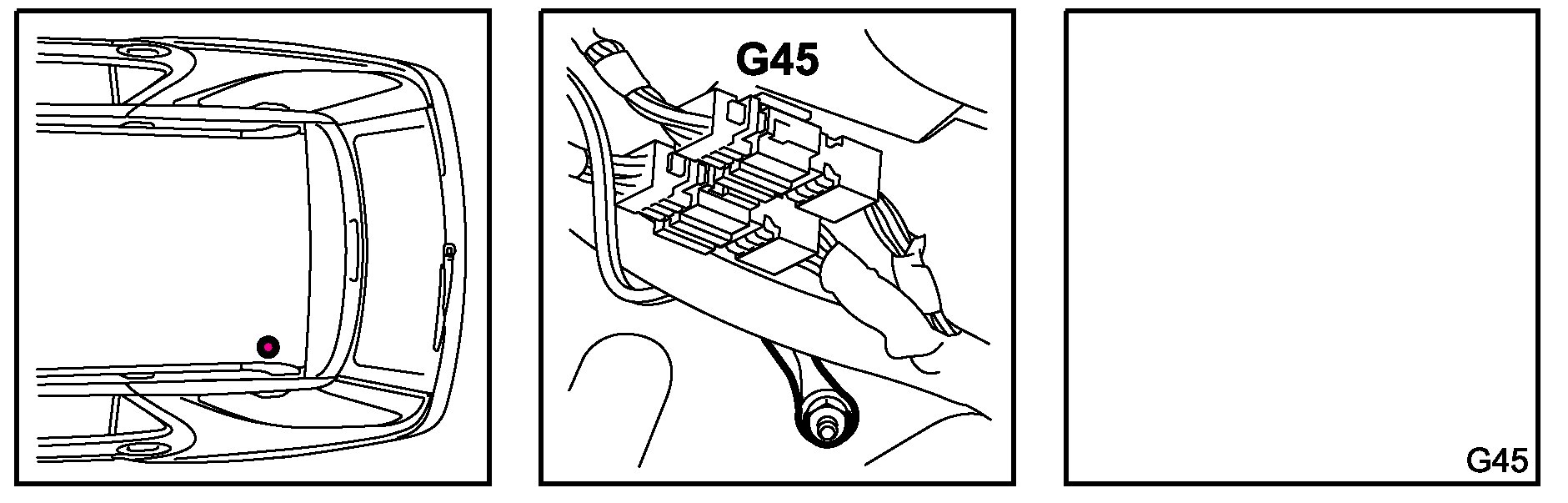

Location: In roof above LH D-pillar.

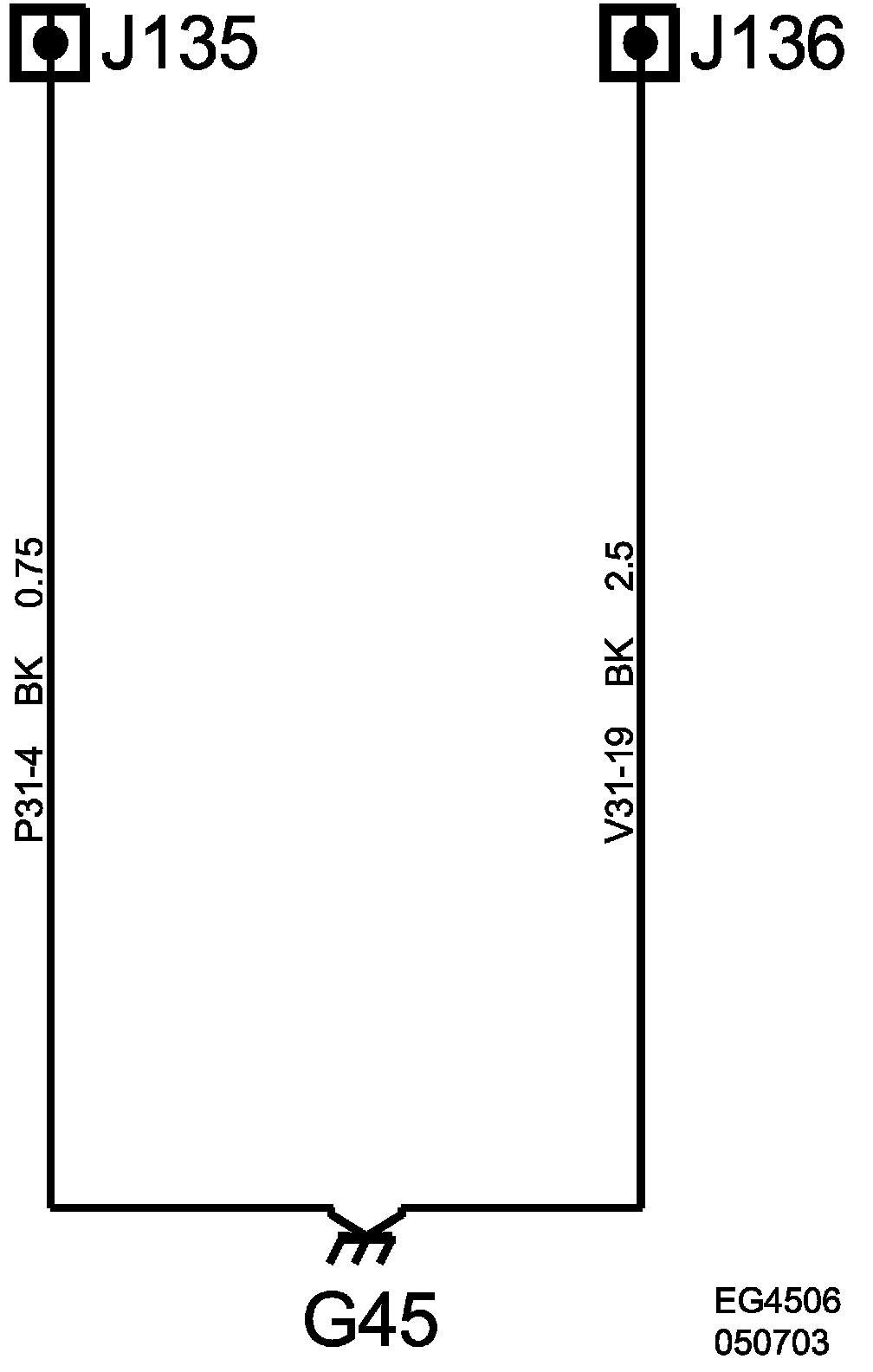

Grounding Point G45 (Only 5D):

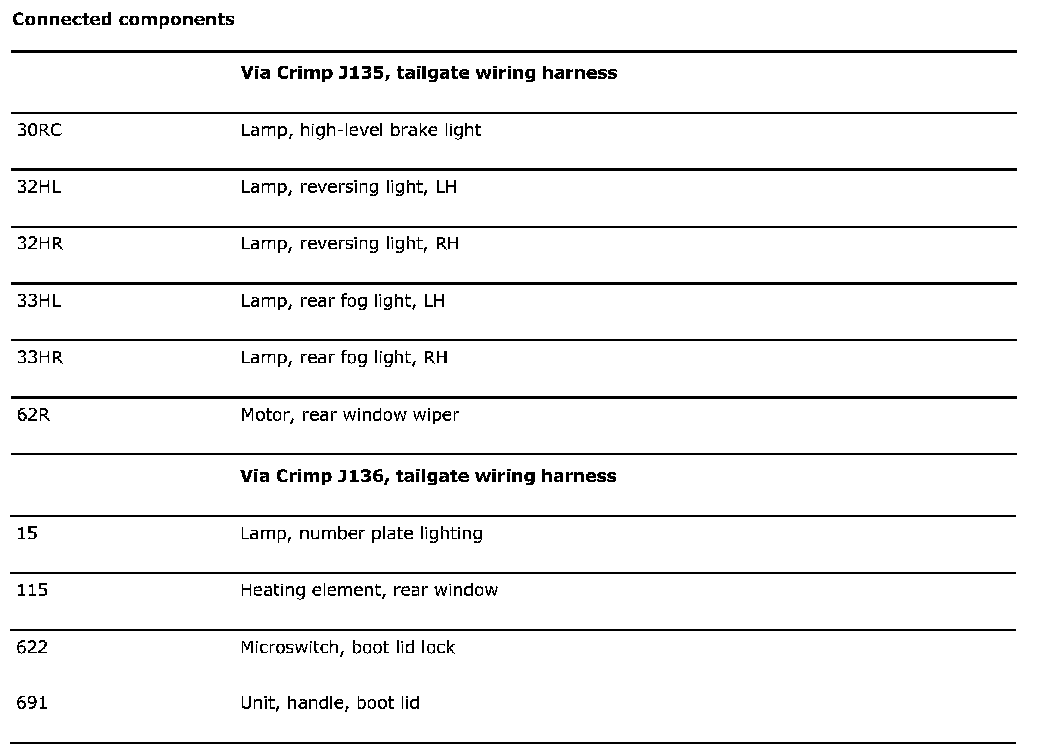

Connected Components:
