Grounding Point G24

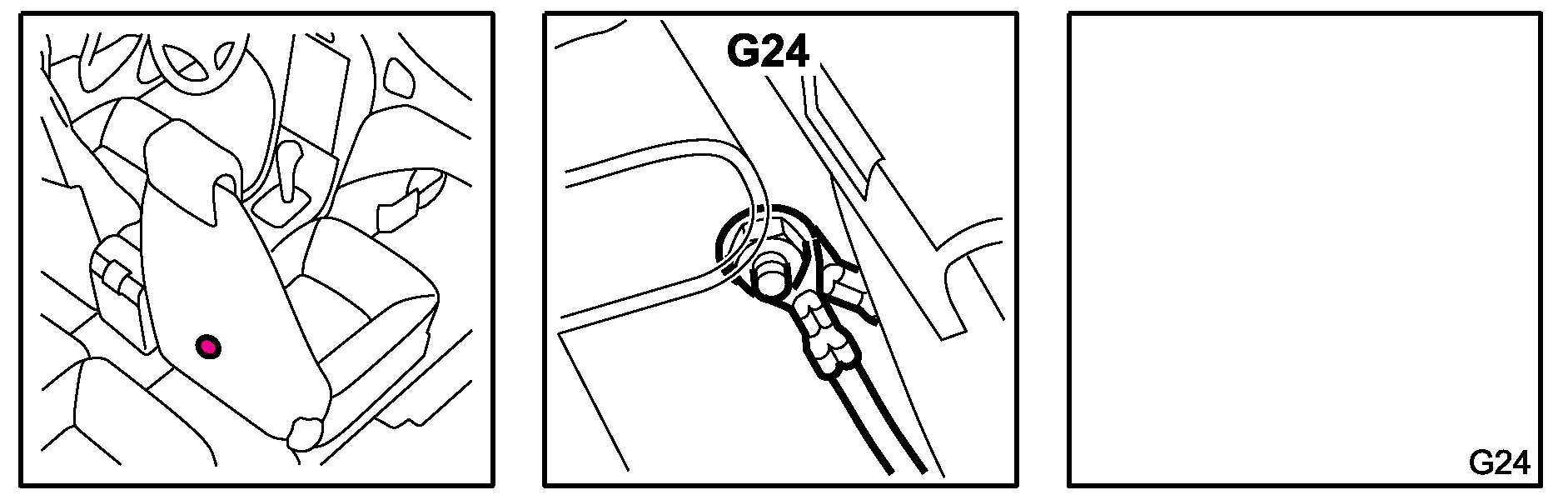

Location: On seat member under RH seat.

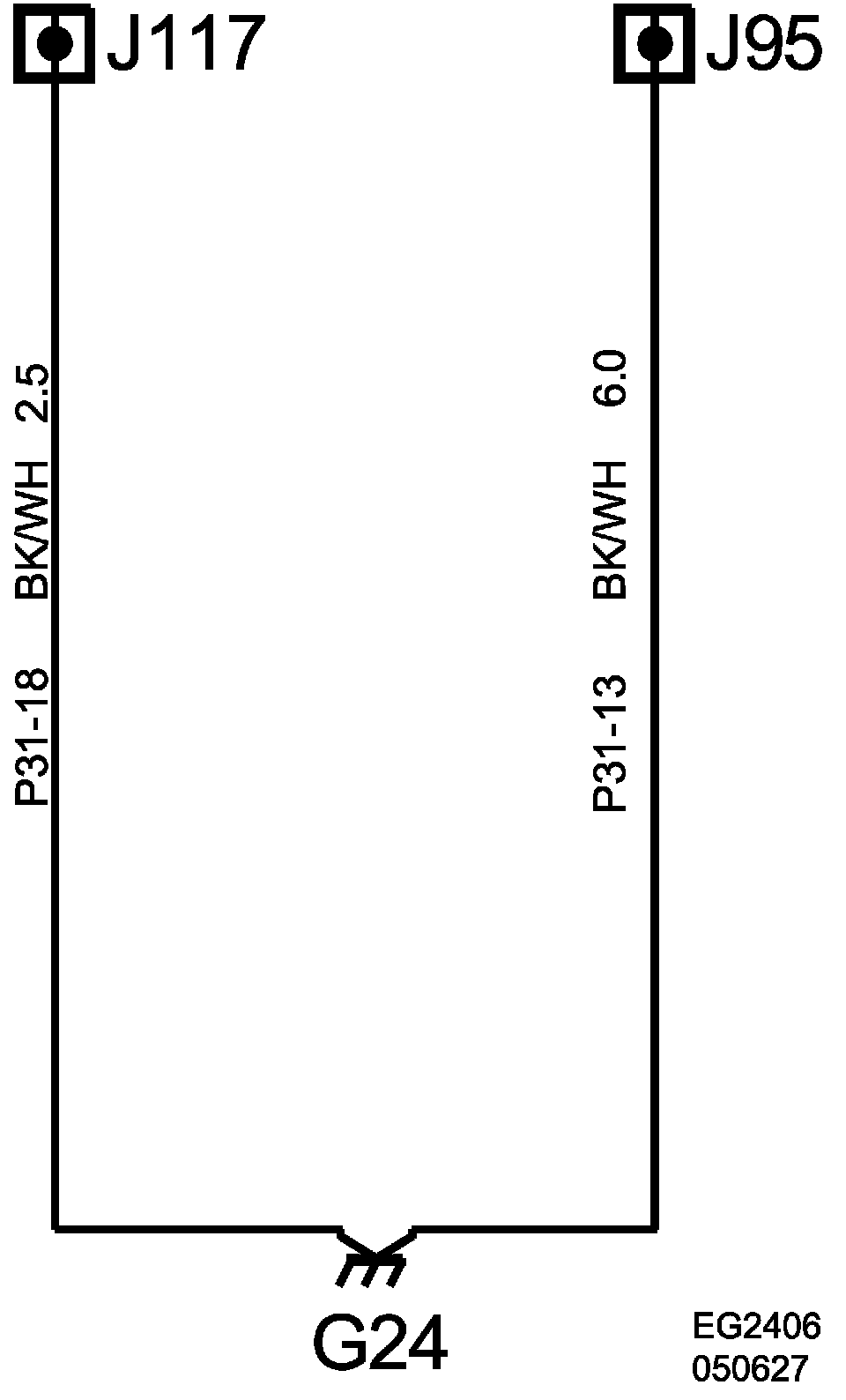

Grounding Point G24:

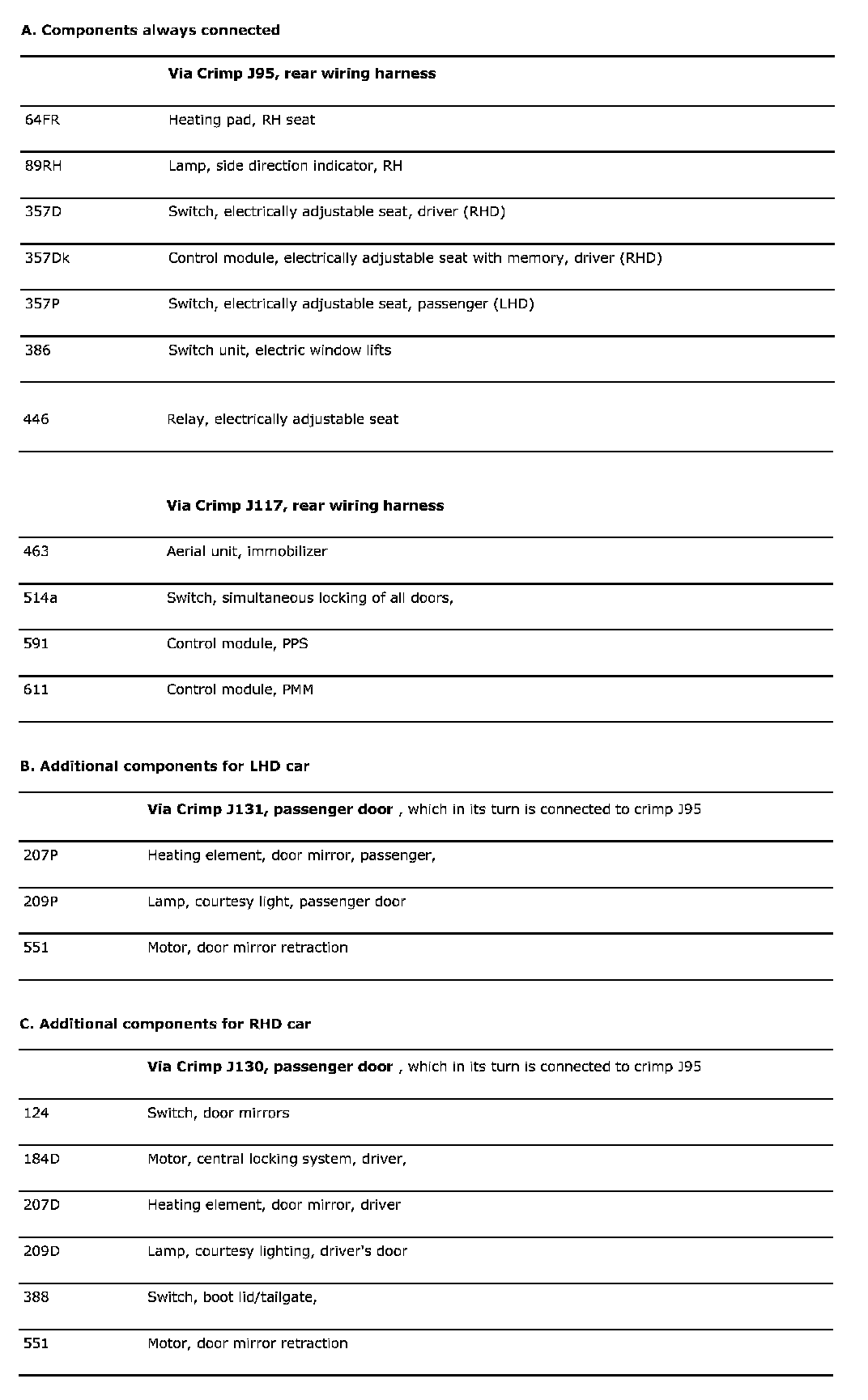

Connected Components:
