Grounding Point, G31



Grounding Point, G31


Grounding Point, G31:

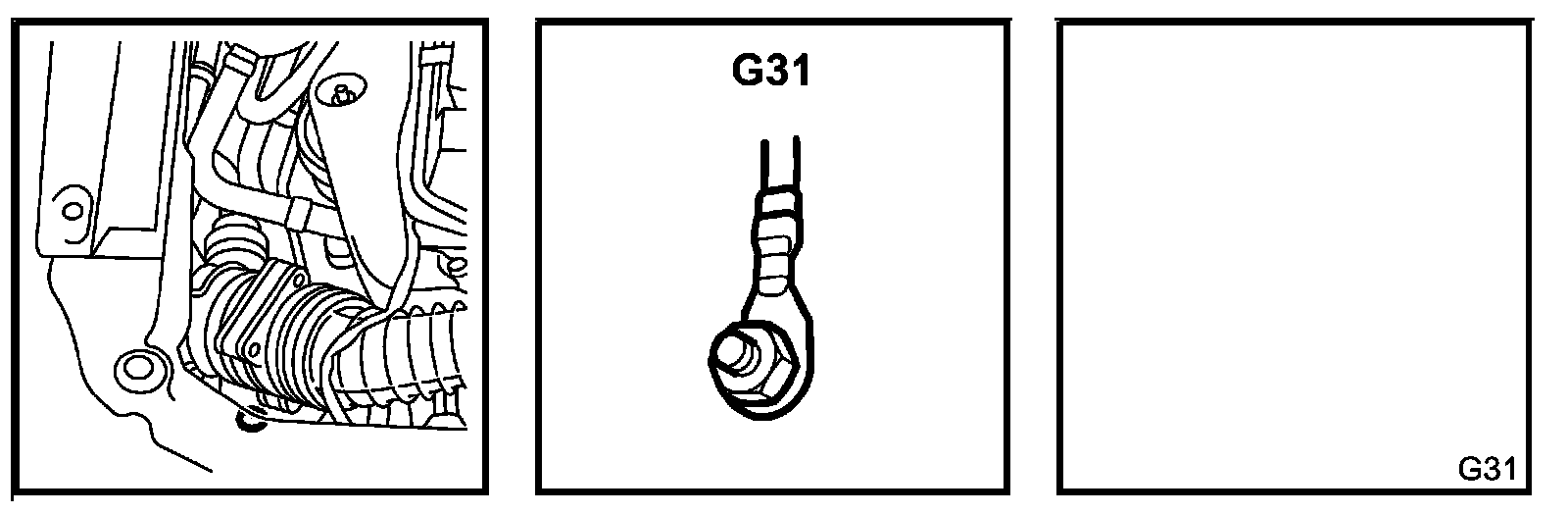

Location: On the RH structural member behind the headlamp.

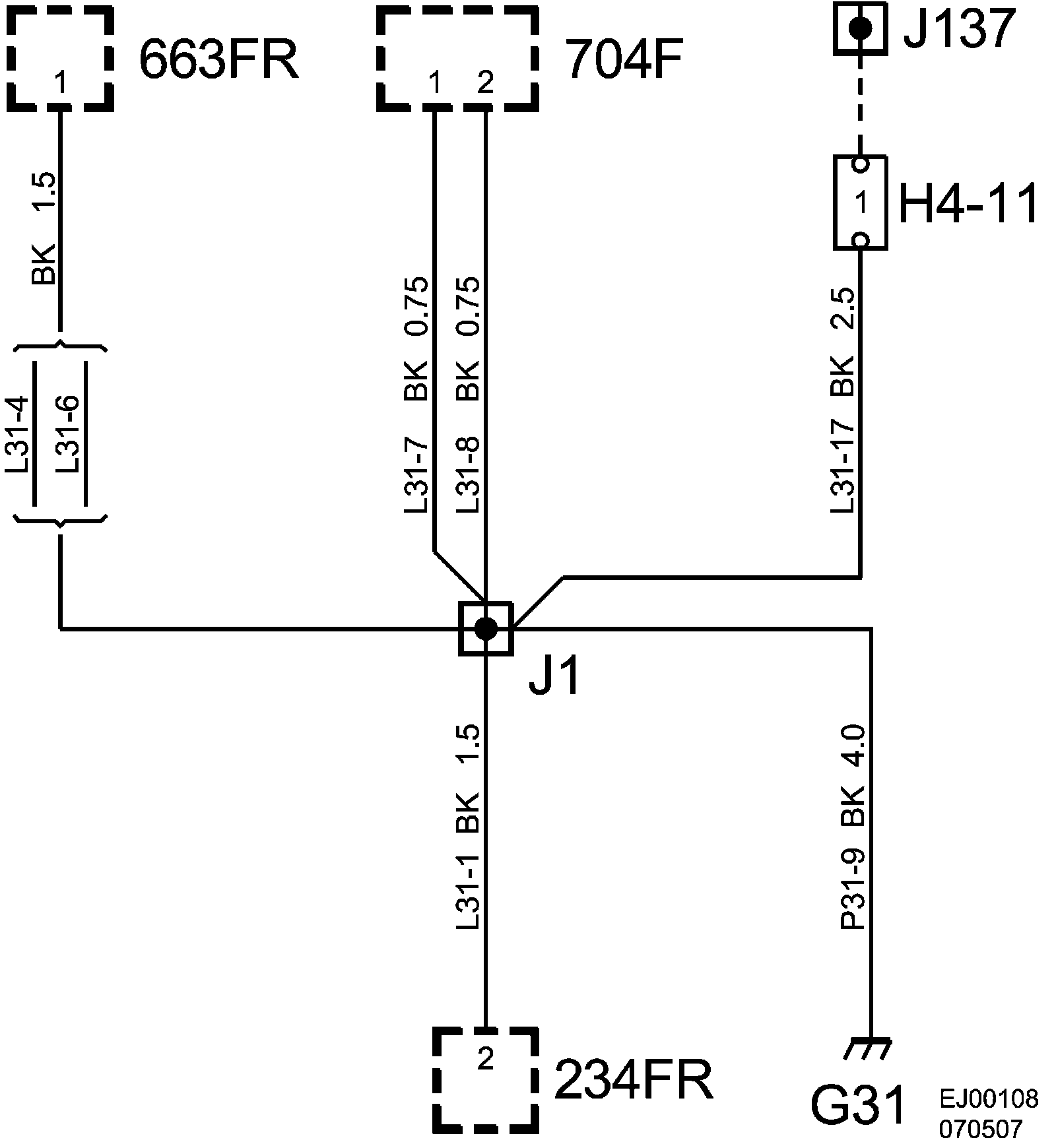

Connected components

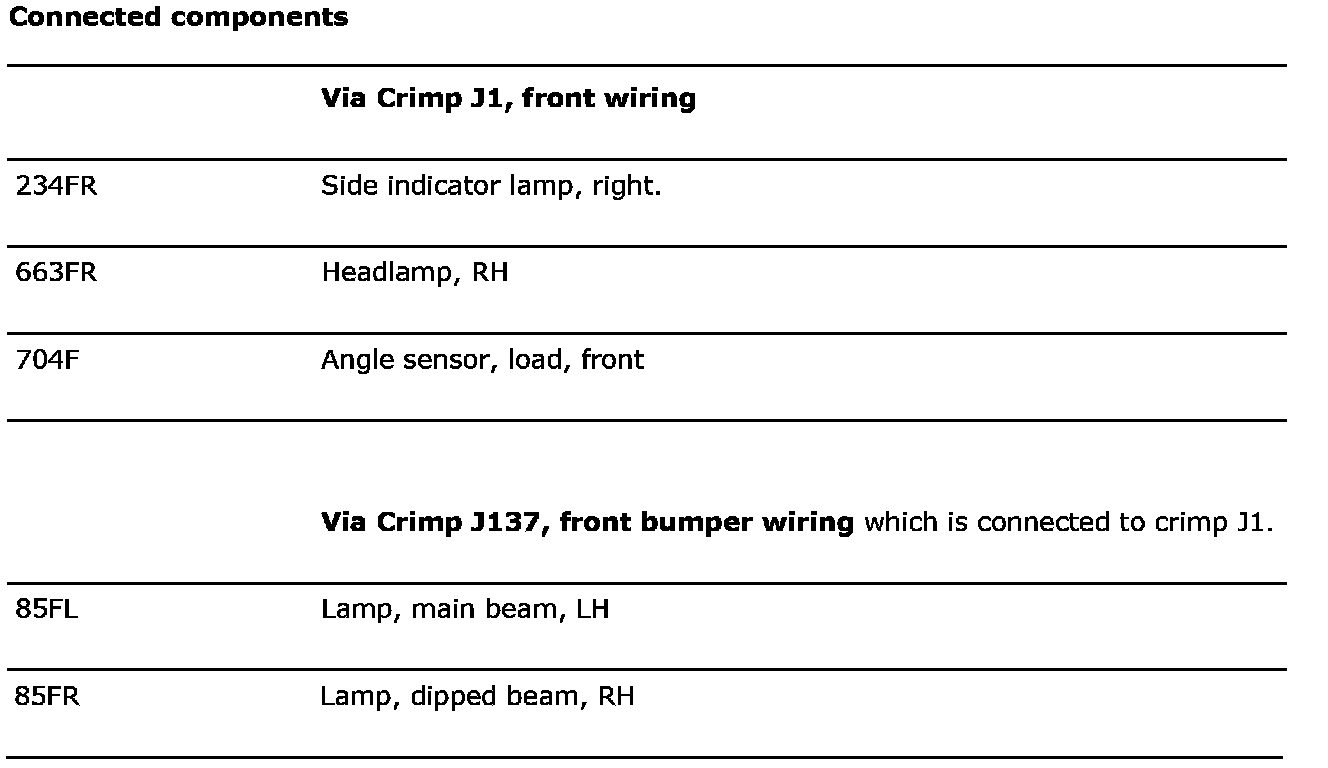

Connected Components:
