Front Direction Indicators

Direction Indicators, Front

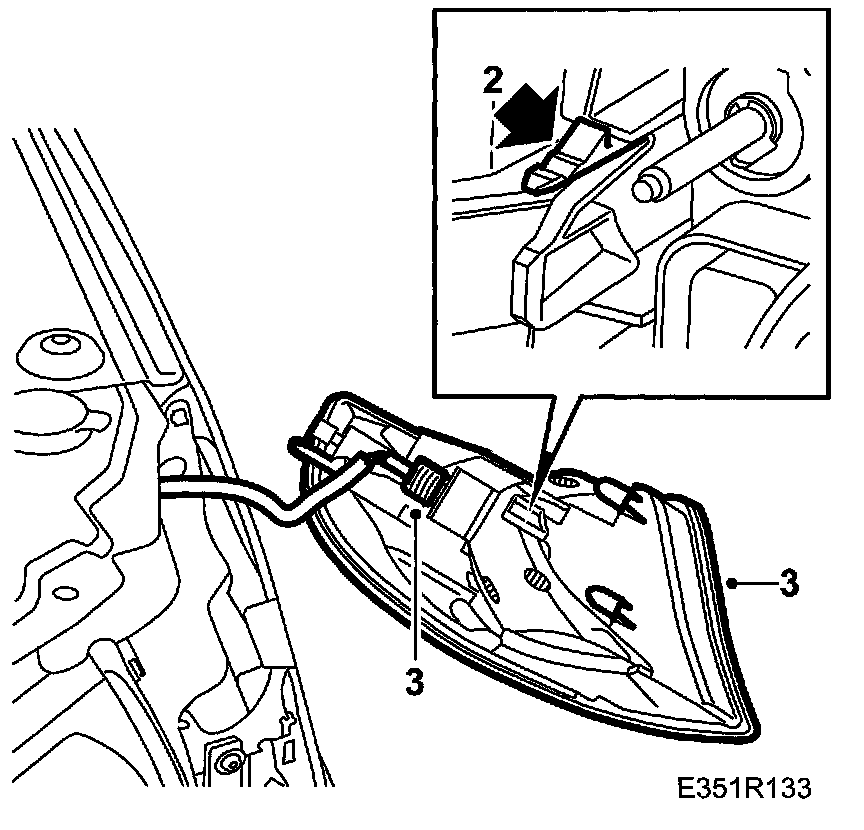

To remove
1. LH: Remove the upper part of the battery cover.
2. Depress the snap-lock catch and edge out the direction indicator.
3. Unplug the direction indicator connector and remove the direction indicator.

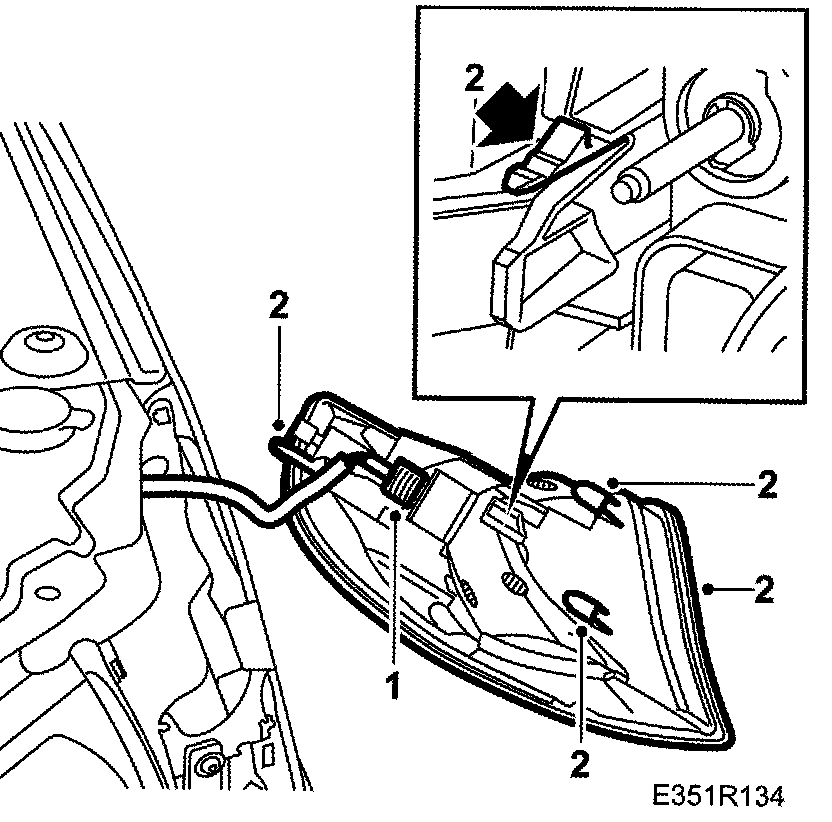

To fit







1. Plug in the direction indicator.
2. Place the direction indicator so that the three guide pins are correctly located. Press on the direction indicator, making sure the clip fastens properly.
3. LH: Fit the upper part of the battery cover.

Replacement of lamp bulb
1. Remove the bulb from the bulb holder. Twist the bulb anticlockwise.
2. Fit the bulb into the bulb holder. Twist the bulb clockwise.
