Outer Light Cluster - Wagon

Outer Light Cluster, Rear 5D

To remove

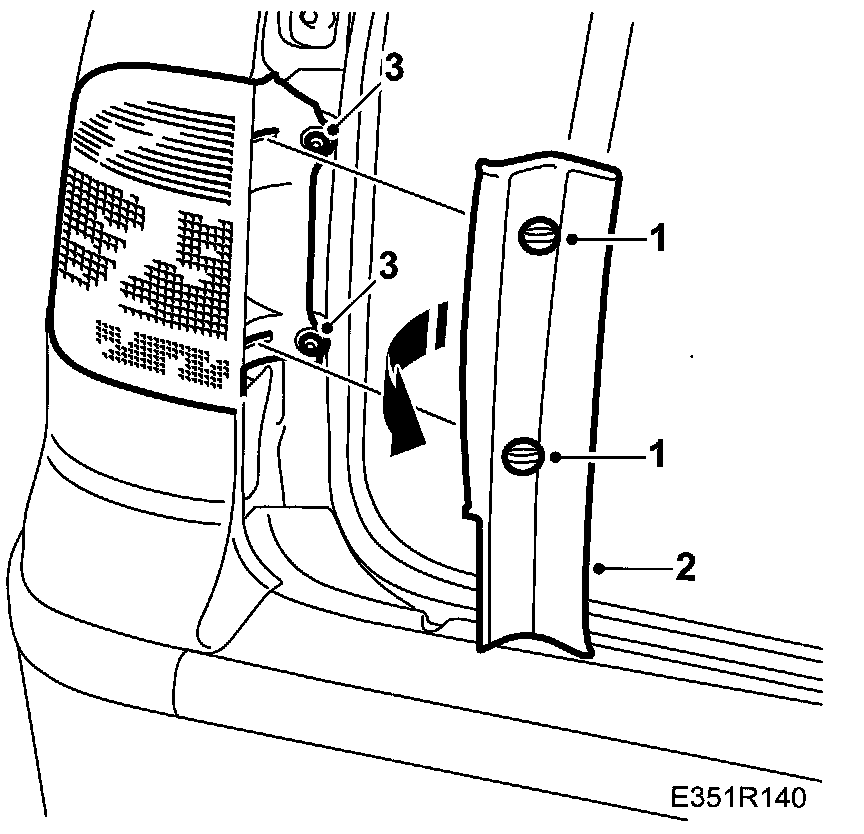

1. Open the door. Turn the retaining clip one quarter of a turn.







2. Remove the cover by pushing it back.
3. Remove the bolts.

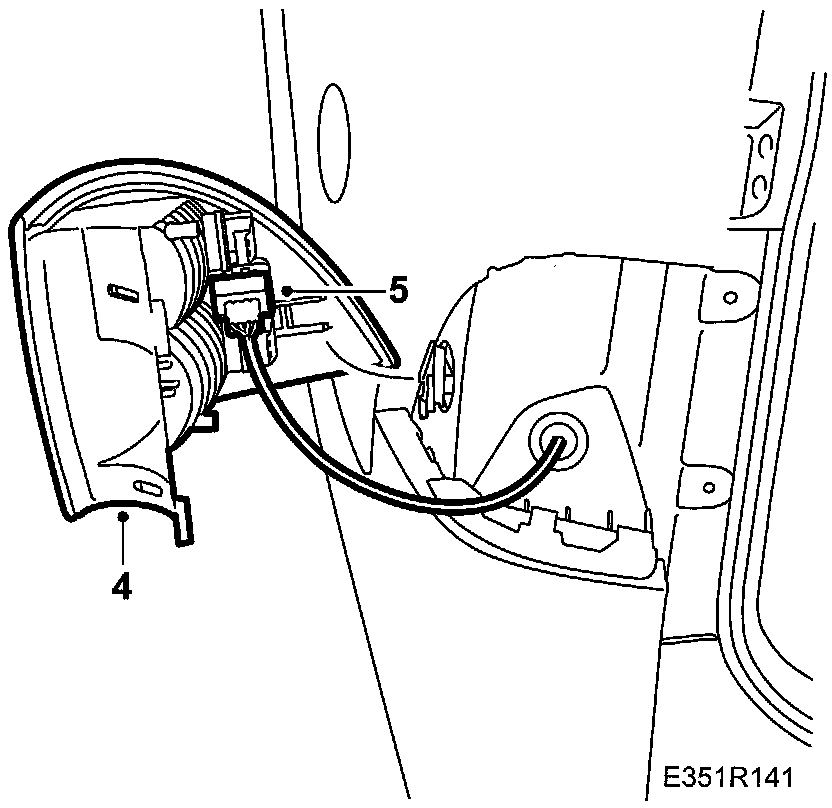

4. Pull out the light cluster at an angle and pull it away from the retaining clip.







5. Unplug the connector.

To fit

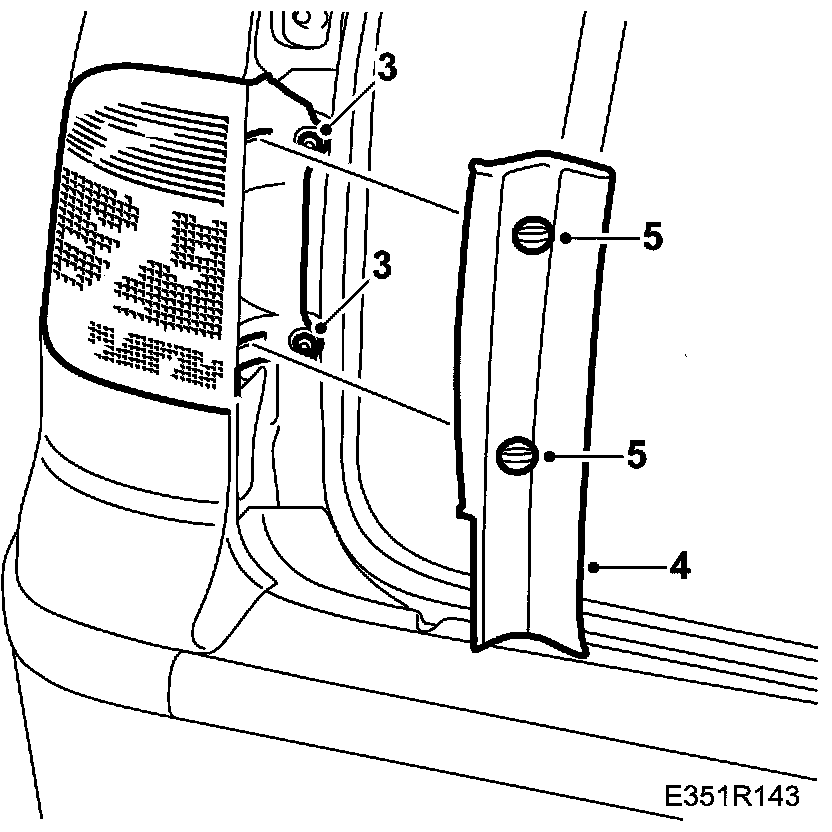

1. Plug in the connector.







2. Press the lamp into the clip.
3. Put the light cluster in place and fit the screws.







4. Fit the cover.
5. Turn the retaining clips back one quarter of a turn.
