Luggage Compartment Lighting

Luggage Compartment Lighting

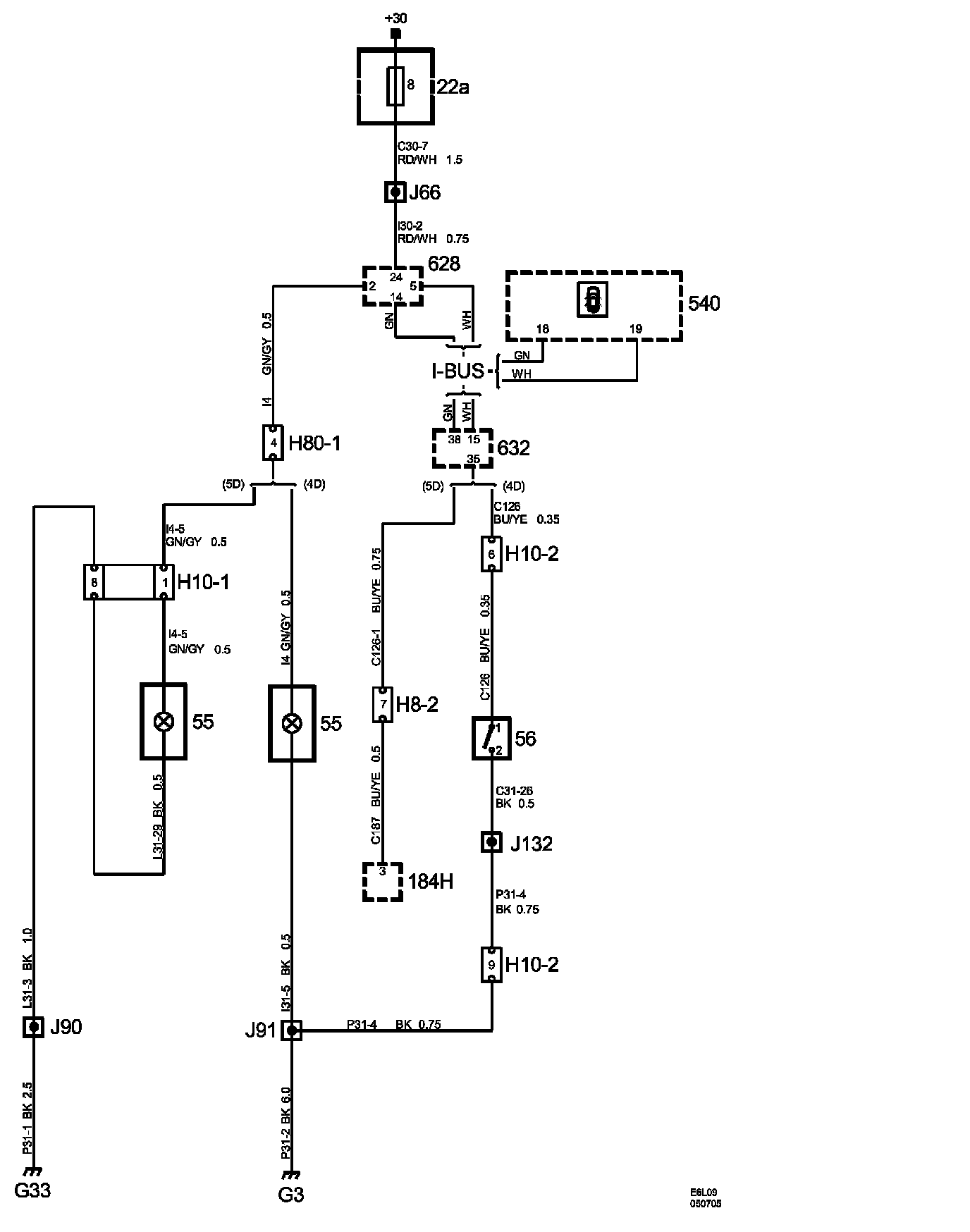

Luggage Compartment Lighting:

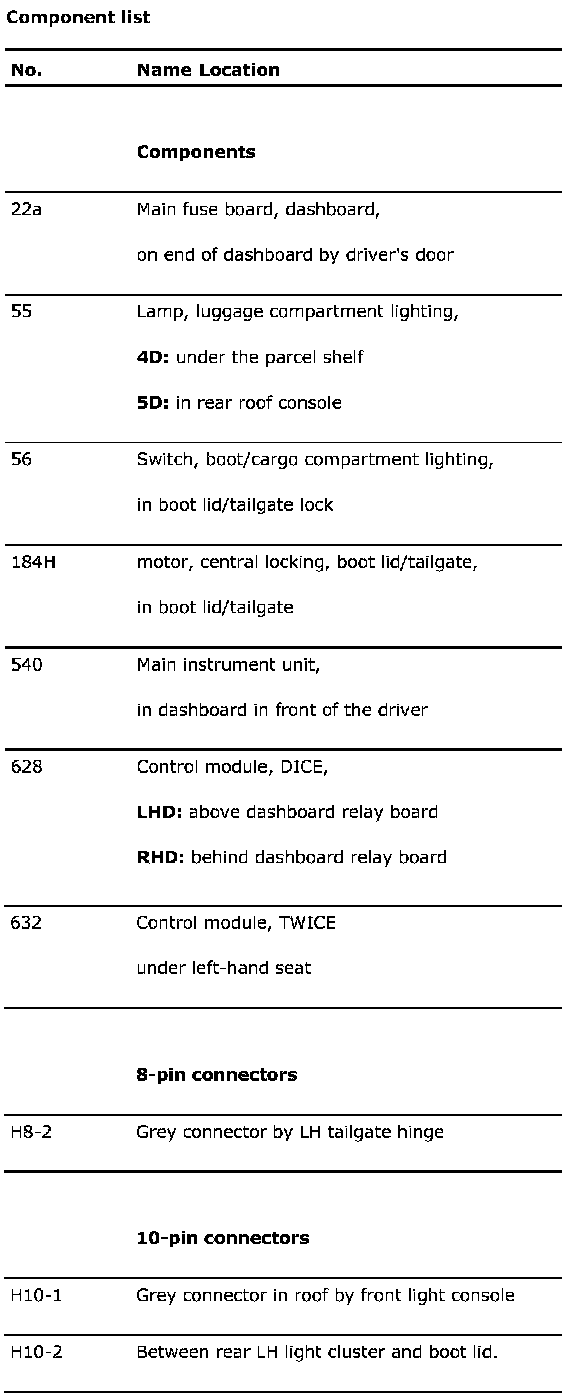

Component List (Part 1):

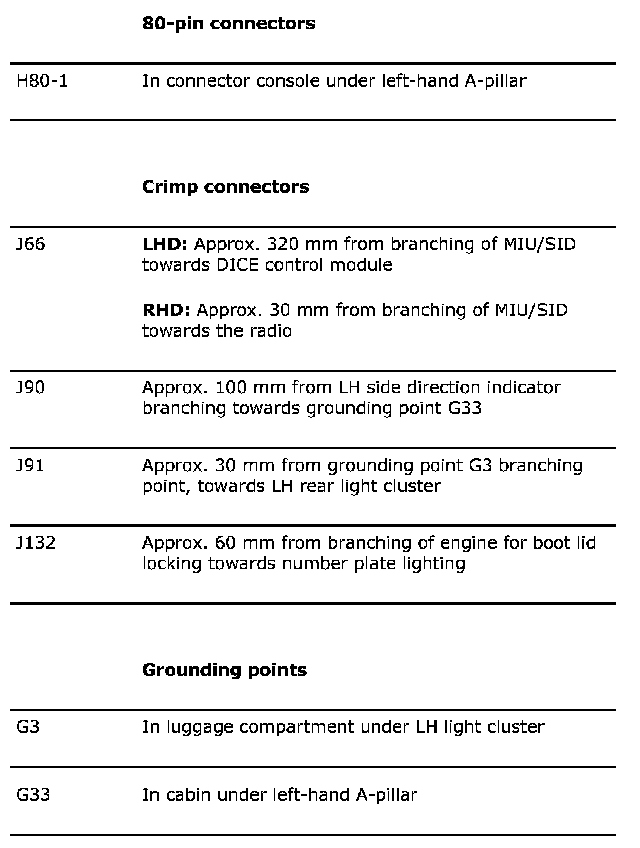

Component List (Part 2):
