Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Lighting and Horns >> Dome Lamp >> Diagrams >> Connector Views >> Lamp, Front Roof Lighting (50F)

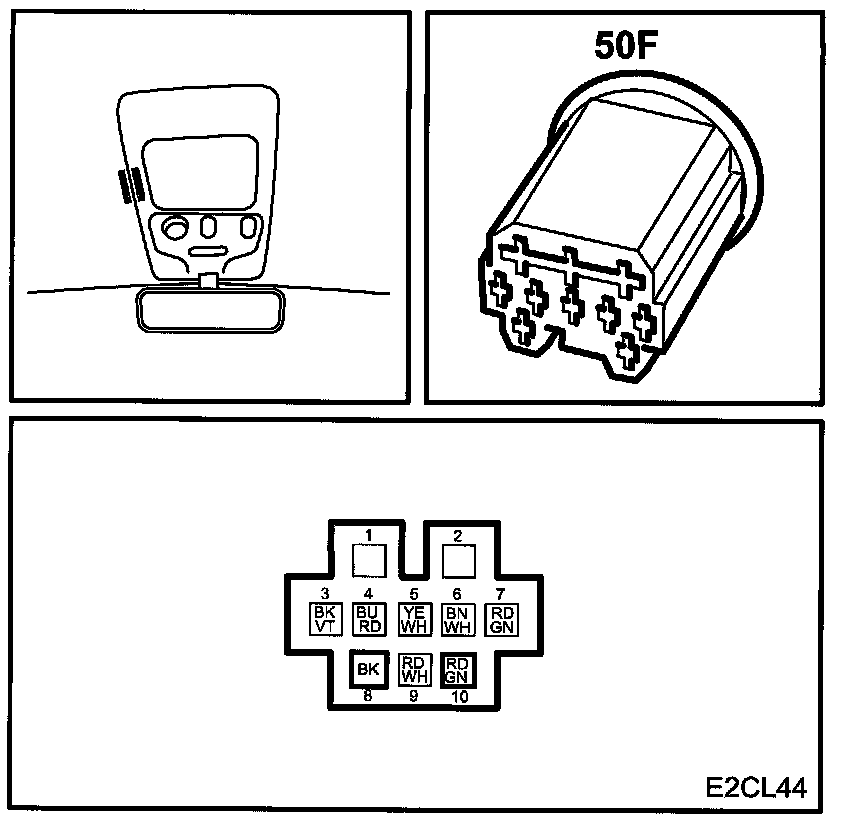

Lamp, Front Roof Lighting (50F)

Lamp, Front Roof Lighting (50F):
