Power Supply and Ground

Xenon Headlamps, Power Supply

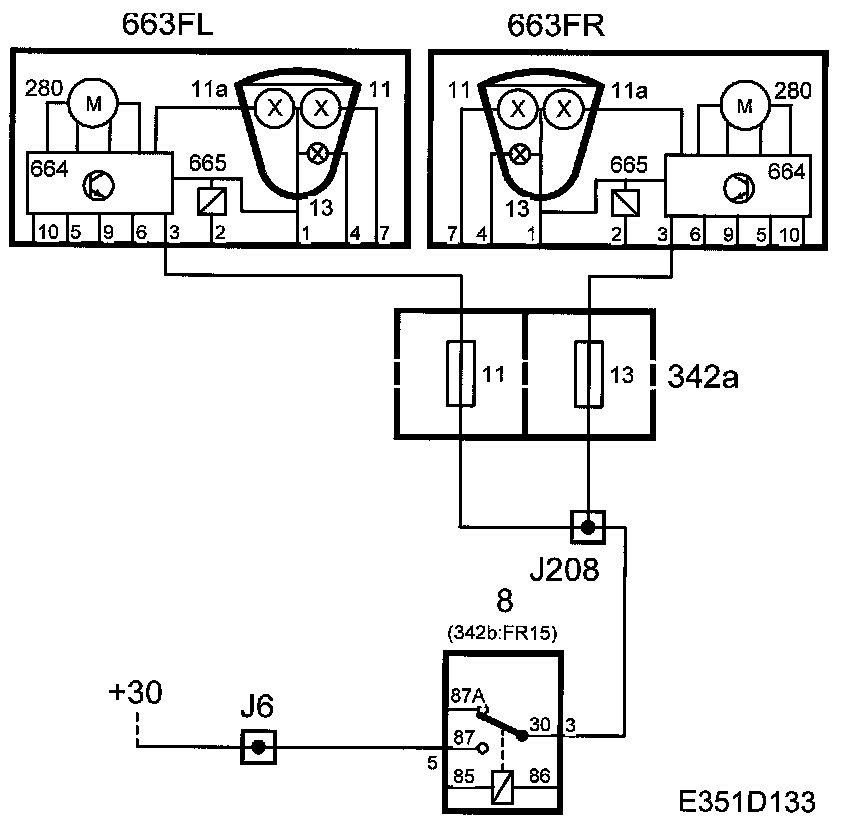

Main Voltage Supply










LH headlamp:
From relay (8) via fuse 11 in engine bay fuse box to headlamp, pin 3.

RH headlamp:
From relay (8) via fuse 13 in engine bay fuse box to headlamp, pin 3.

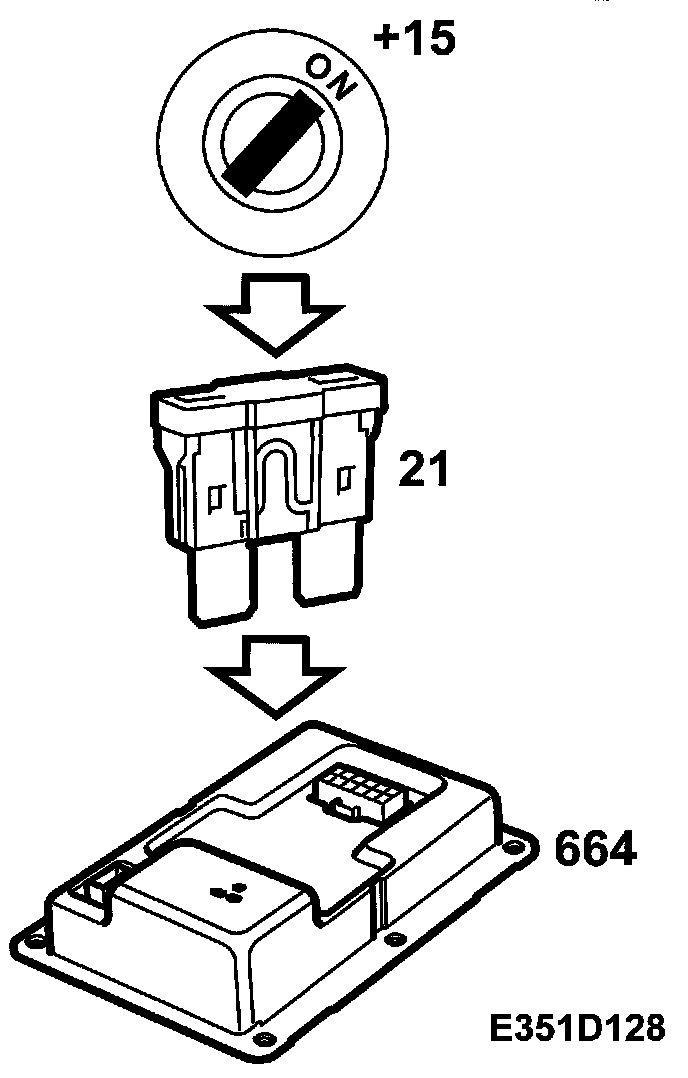

Power supply +15










From fuse 21 in dashboard fuse box to headlamp, pin 10.

This power supply keeps the control module awake in case of a break in the main voltage supply.

Xenon Headlamps, Ground

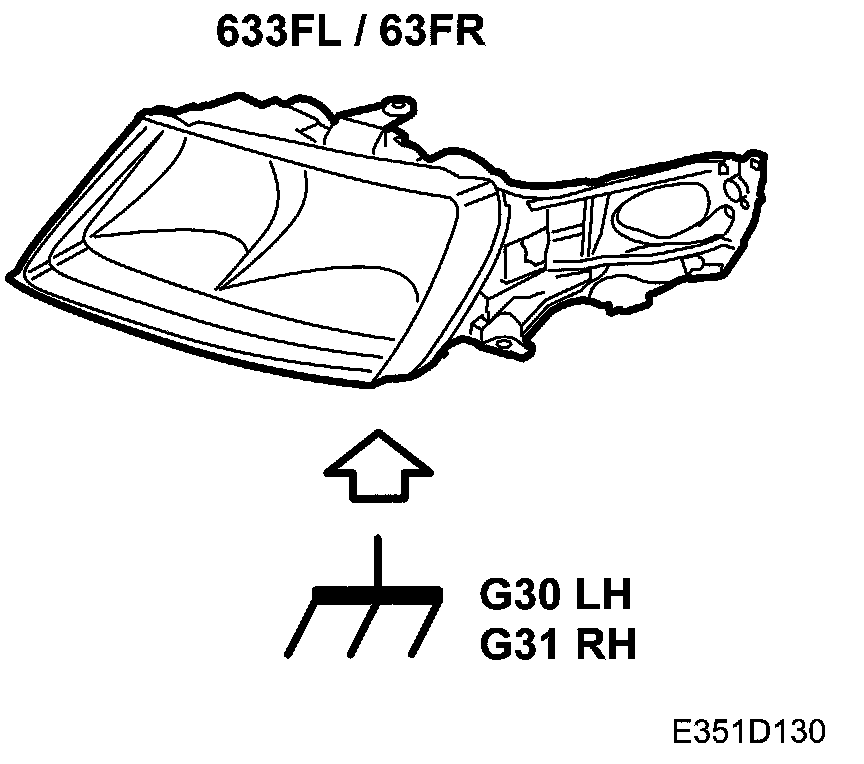

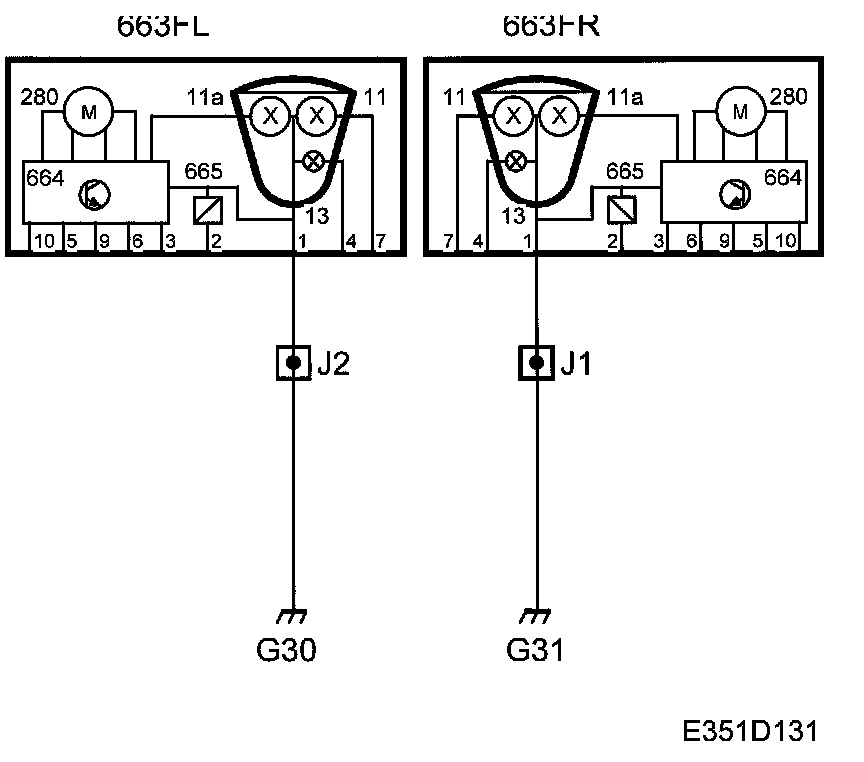

Ground connection

LH headlamp is grounded to grounding point G30 via pin 1.

RH headlamp is grounded to grounding point G31 via pin 1.
