Inputs and Outputs

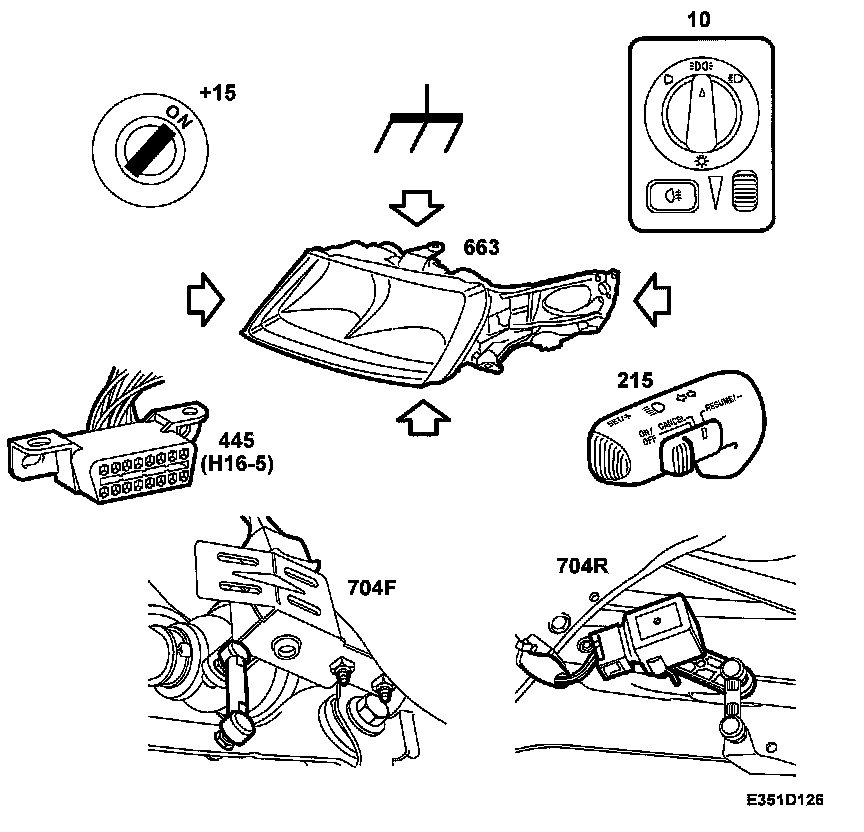

Xenon Headlamps, Inputs







^ Power supply +15
^ Ground
^ Light switch (10)
^ Dipswitch (215)
^ Load angle sensor, front (704F)
^ Load angle sensor, rear (704R)
^ Diagnostic communication (445)

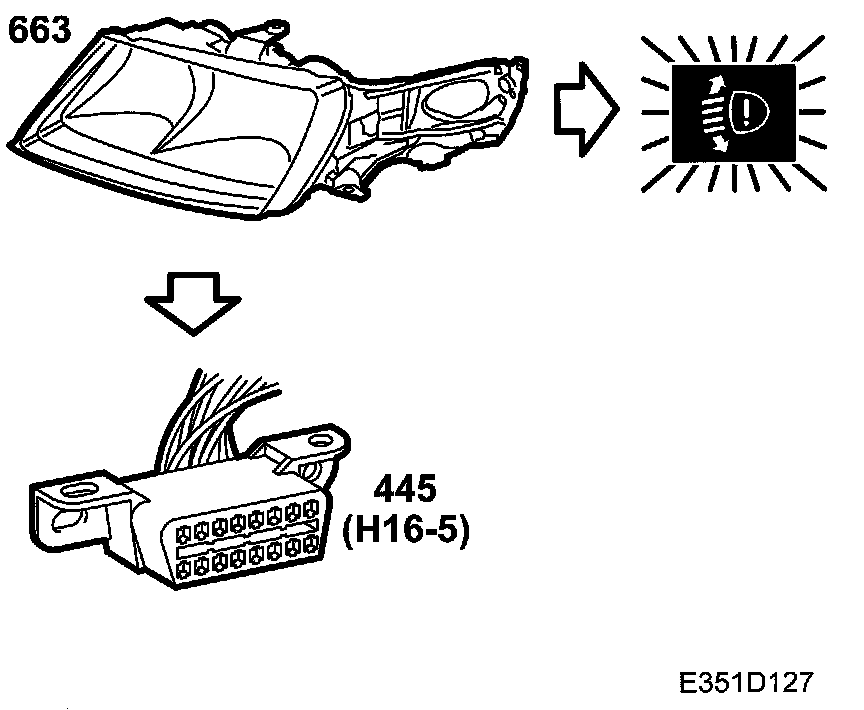

Xenon Headlamps, Outputs







^ Indicator lamp, xenon light system (662)
^ Diagnostic communication (445)
