Interior Lighting

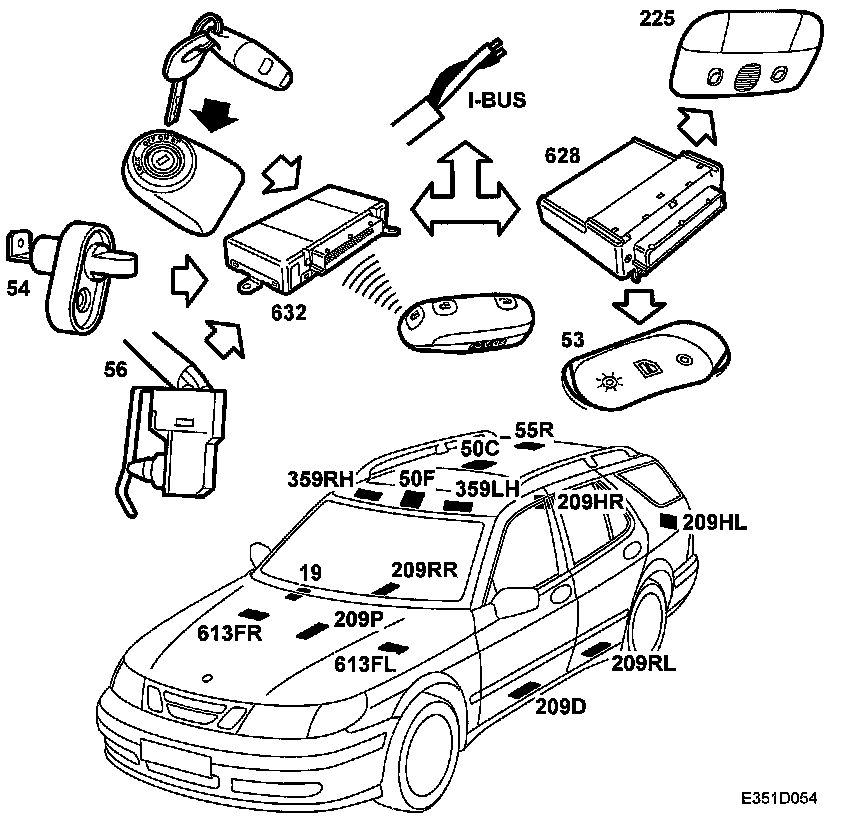

System Overview, Interior Lighting 5D







^ Door switch (54)
^ Switch, luggage compartment lighting (56)
^ Control module, TWICE (632)
^ Control module, DICE (628)
^ Interior lighting switch (53)
^ Control module, SID (541)
^ Glove box light (19)
^ Luggage compartment illumination (55R)
^ Roof lamp (50C, 50F)
^ Vanity mirror lighting (359)
^ Courtesy lights (209)
^ Reading lights (225)
^ Floor lighting (613)
^ Tailgate illumination (209HL/HR)
