Xenon Lamp System Indicator

Xenon lamp system indicator

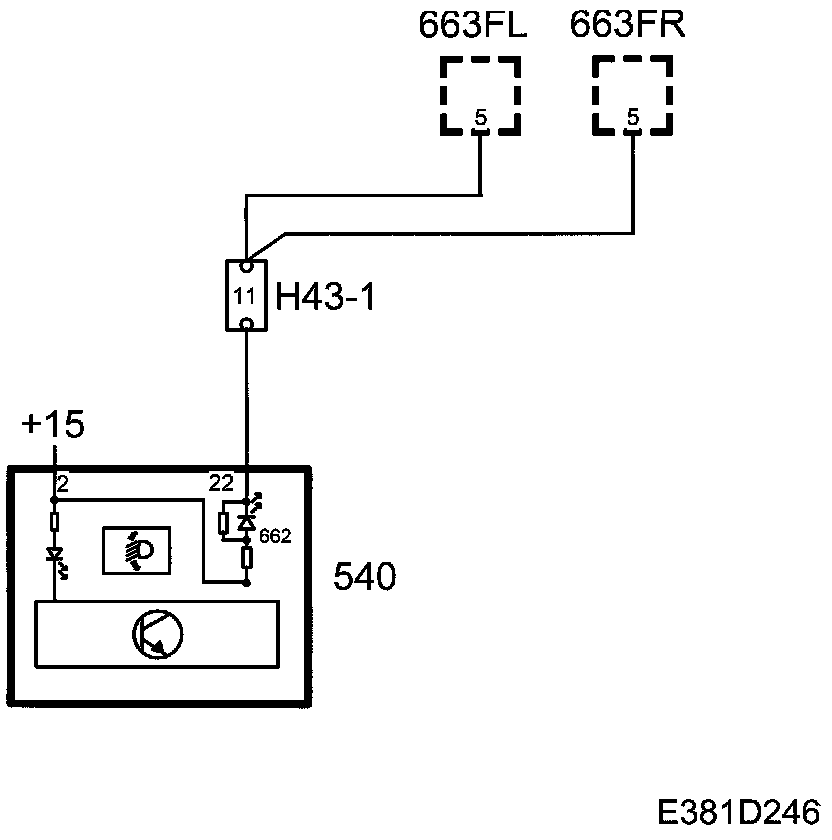

Schematic:

The indicator lamp warns the driver of a fault in the xenon lighting and automatic headlamp adjustment system.

The lamp is powered from the main instrument unit and grounded by the AHL control module on a system fault.

Diagnostics
The function has its own diagnostics in the sending system.
