Panel Layout

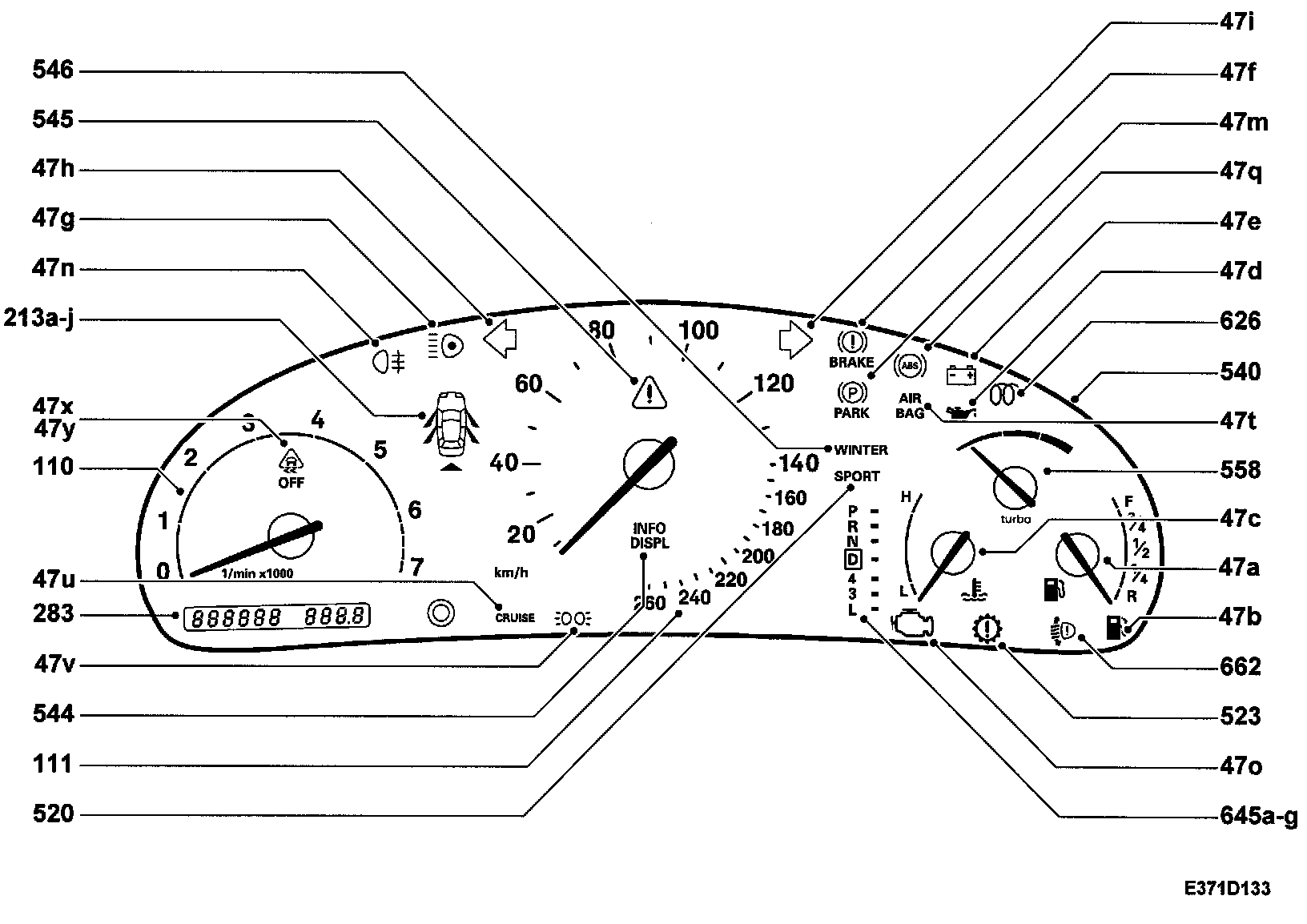

Instrument Panel View:

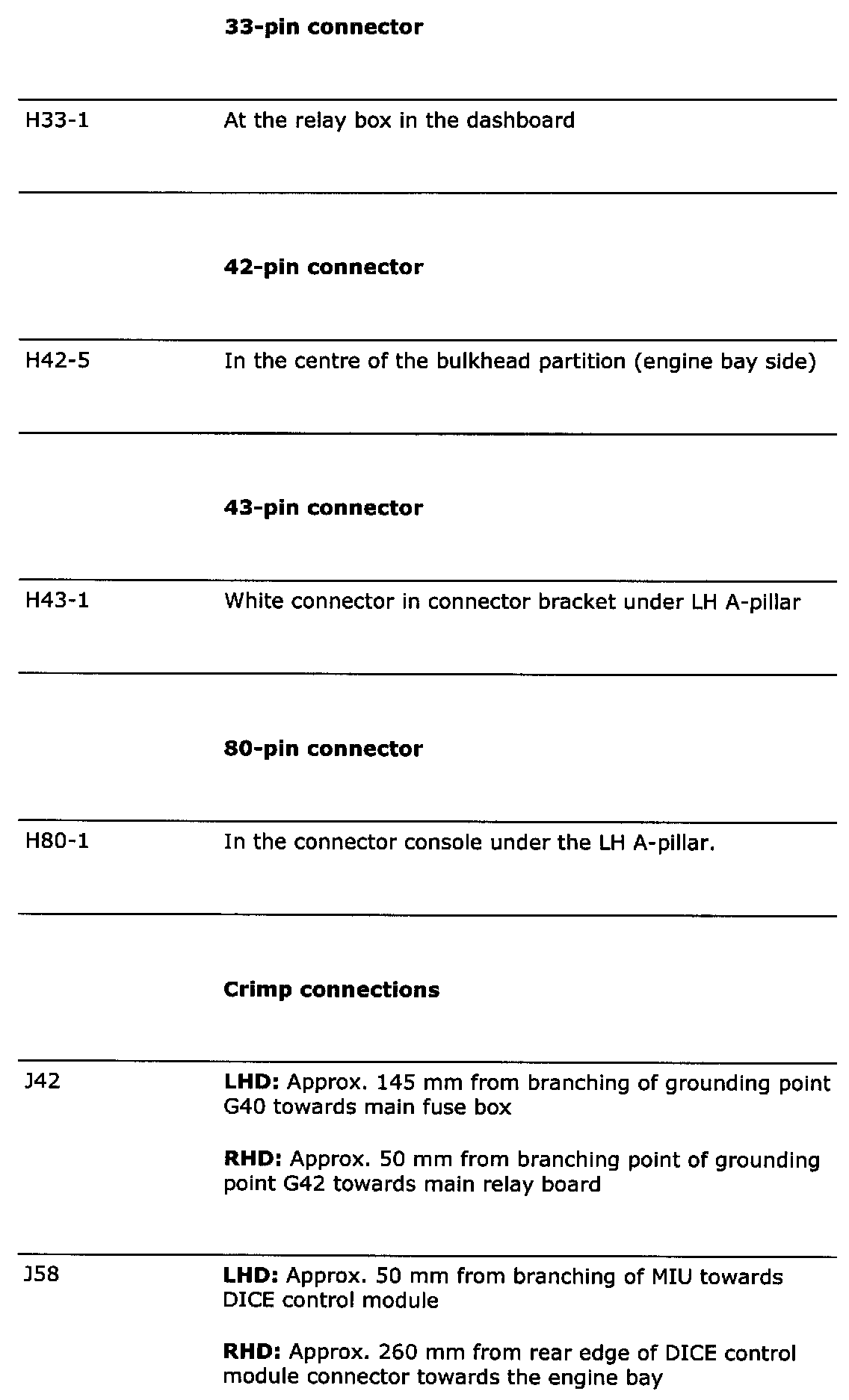

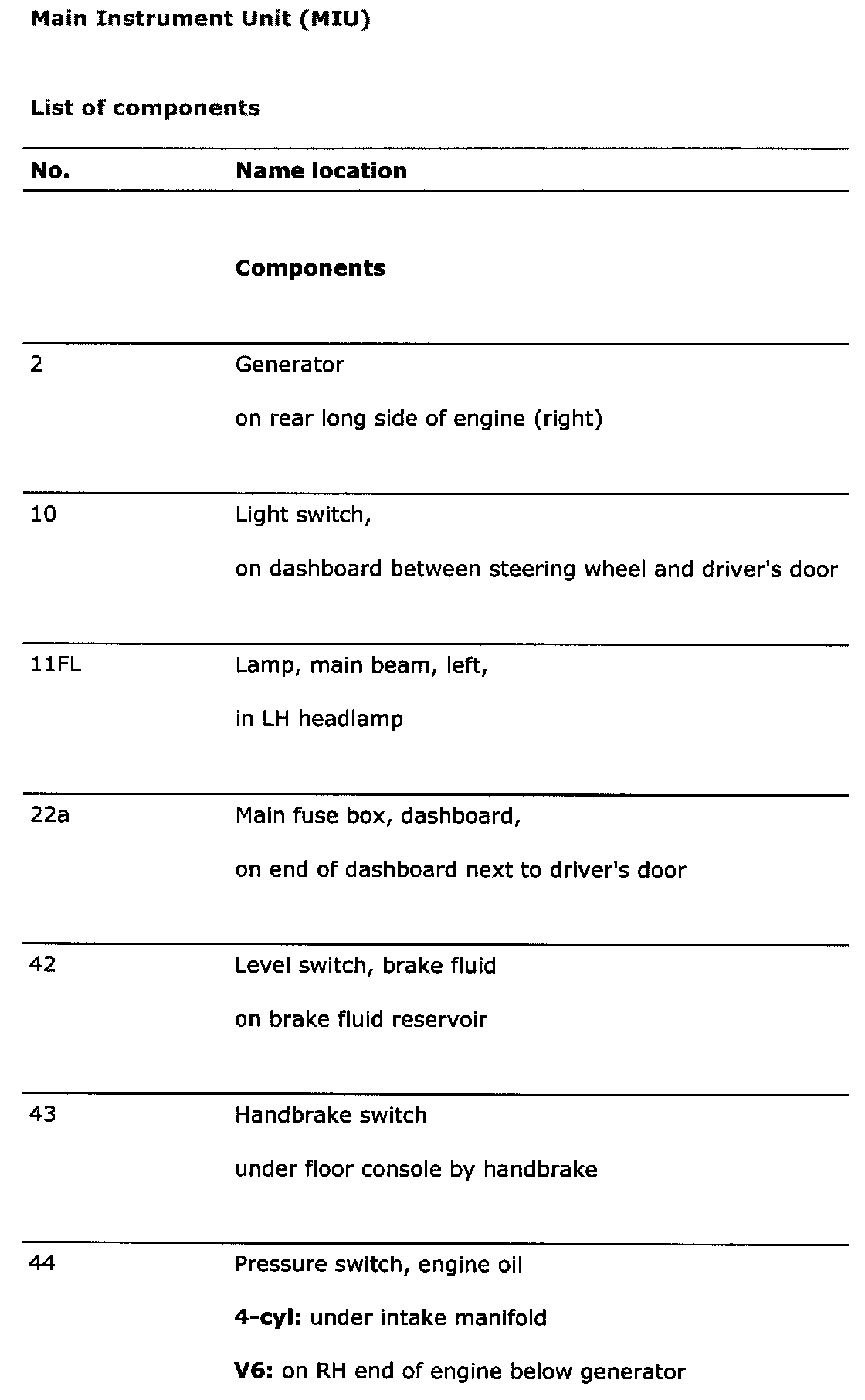

List Of Components (Part 1):

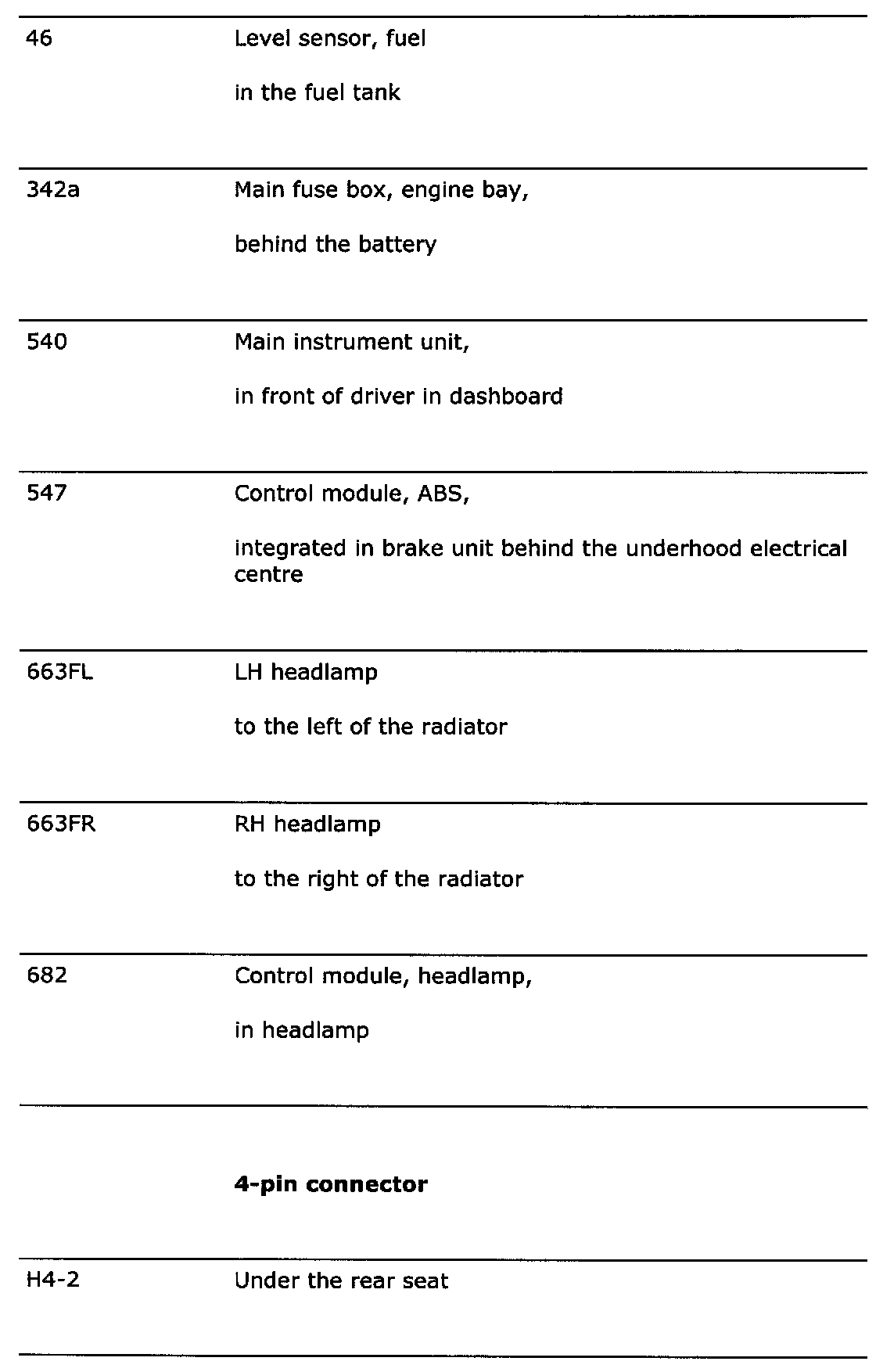

List Of Components (Part 2):

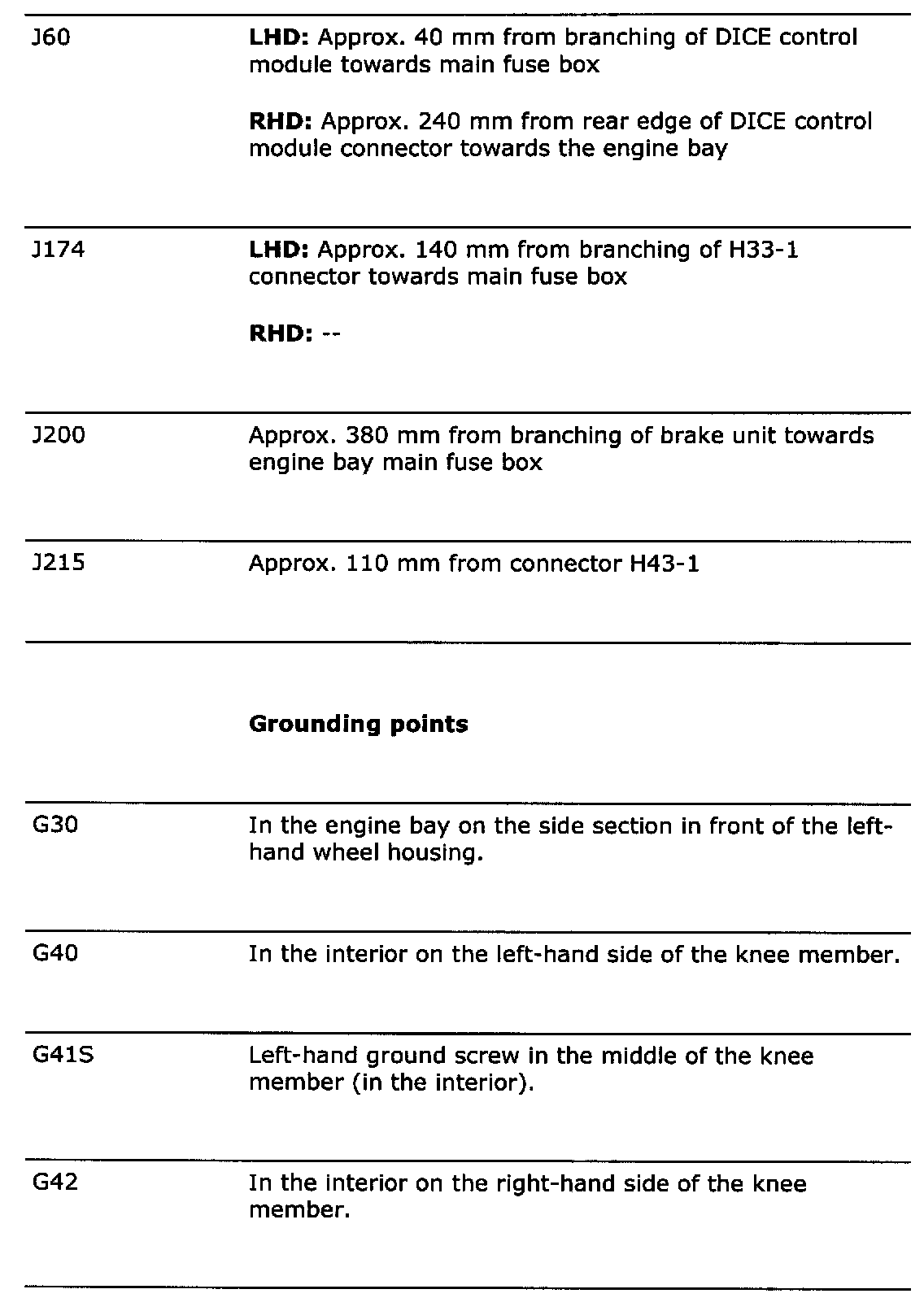

List Of Components (Part 3):





List Of Components (Part 4):






Warning and Indicator Lamps
