Control Module (SID)

Control Module (SID)

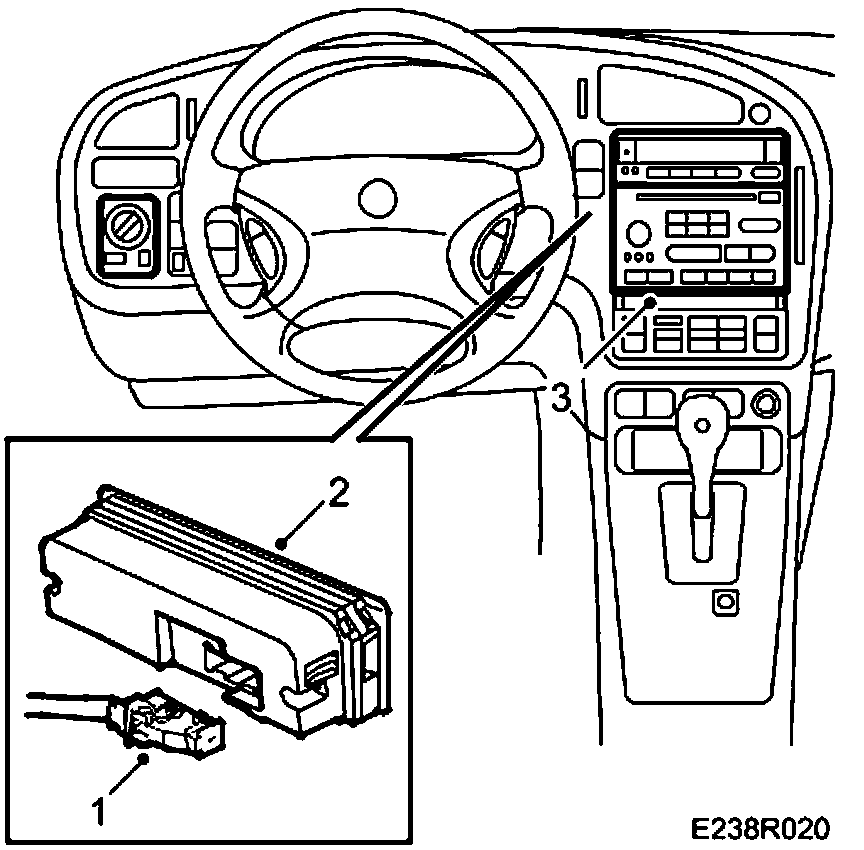

To Remove
1. Remove the main unit (audio) or radio.
2. Press out the SID from behind.
3. Undo the connector on the SID.

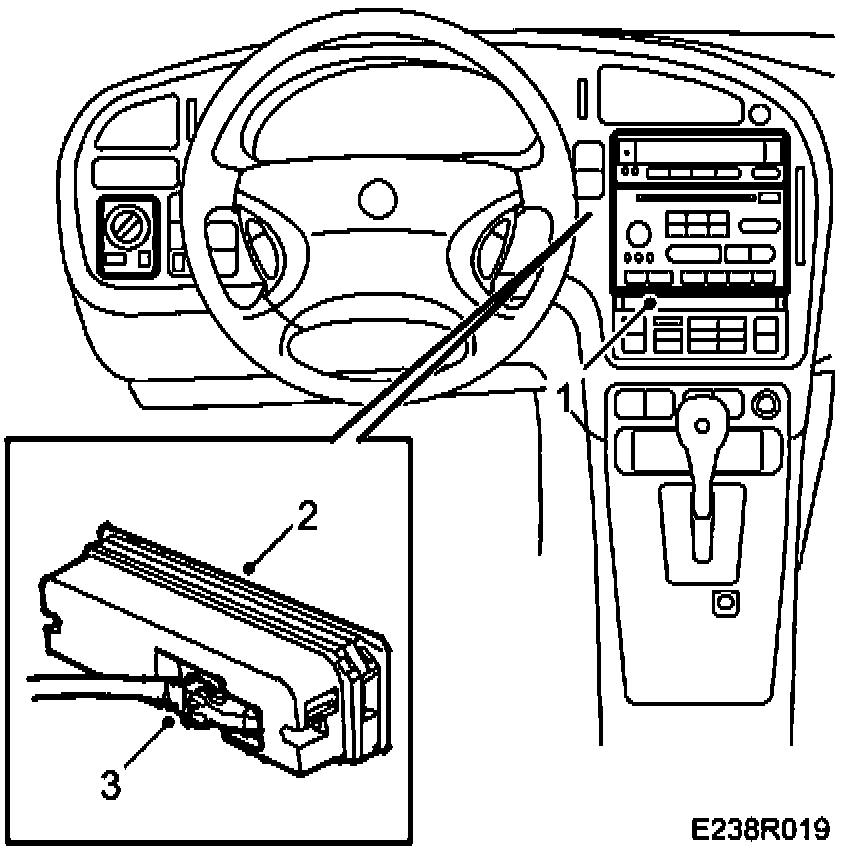

To Fit






1. Plug in the connector to the SID.
2. Slide in the SID.
3. Refit the main unit (audio) or radio.
4. When changing the SID unit, the parts must be programmed. Follow the instructions in the diagnostic tool menu "Programming".

NOTE: Restore settings on the SID unit clock.

Lamp bulbs

NOTE: It is recommended to replace all the bulbs in the SID unit at the same time as they all have the same life expectancy.

1. Remove the SID unit as described under
2. Open the cover.
3. Replace the bulbs, 4+2.

NOTE: Restore settings on the SID unit clock.

4. After changing the SID unit, the parts must be programmed. Follow the instructions in the diagnostic tool menu "Programming".
