Interior Light Sensor



Interior Light Sensor







General

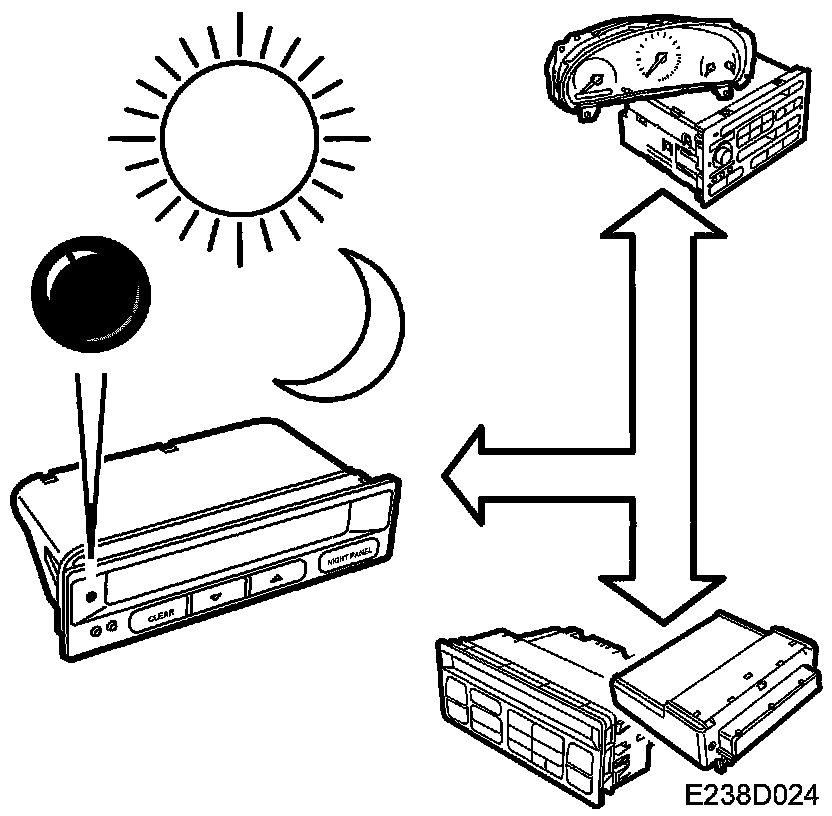

The sensor which measures the light intensity in the car is integrated in the SID. The measurement range is 0-2000 lux.

The SID uses the value to calculate a suitable display lighting level. The value is sent as bus information "LIGHTING INTENSITY IN CABIN" in lux.
