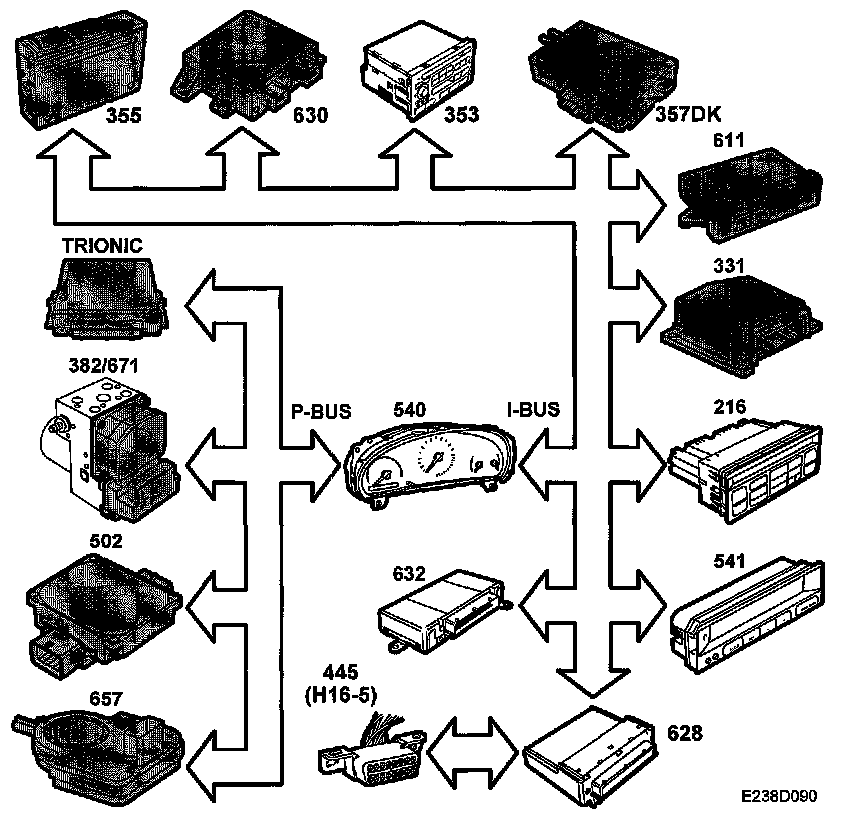

Control Module Outputs, Bus

Control Module Outputs, Bus

Cars with petrol engine







^ Info Disp lamp (on/off) is used by MIU (540)
^ Unit (Degree C/Degree F) is used by ACC (216)
^ Language (Swedish, English, German, French, Italian, Spanish) is used by ACC (216)
^ Steering wheel control is used by Audio (353)
^ Rheostat level (%) is used by Audio (353), ACC (216), DICE (632), MIU (540)
^ Rheostat Night Panel (%) is used by Audio (353), ACC (216), DICE (632), MIU (540)
^ Clear (on/off) used by SPA (630)
^ Night Panel (on/off) is used by Audio (353), ACC (216), DICE (628), MIU (540)
^ Display lighting (%) is used by Audio (353), ACC (216), DICE (628), MIU (540)
^ Cabin light intensity (Lux) is used by MIU (540)
^ Time Engine Off (Min) is used by ACC (216)
^ Exterior temperature (�C/�F) used by ACC (216), TWICE (632), DICE (628), PSG16 (595)
^ Washer fluid level low (ON/OFF) is used by DICE (628)
^ Glass breakage sensor (ON/OFF) used by TWICE (632).
- Diagnostics communication
