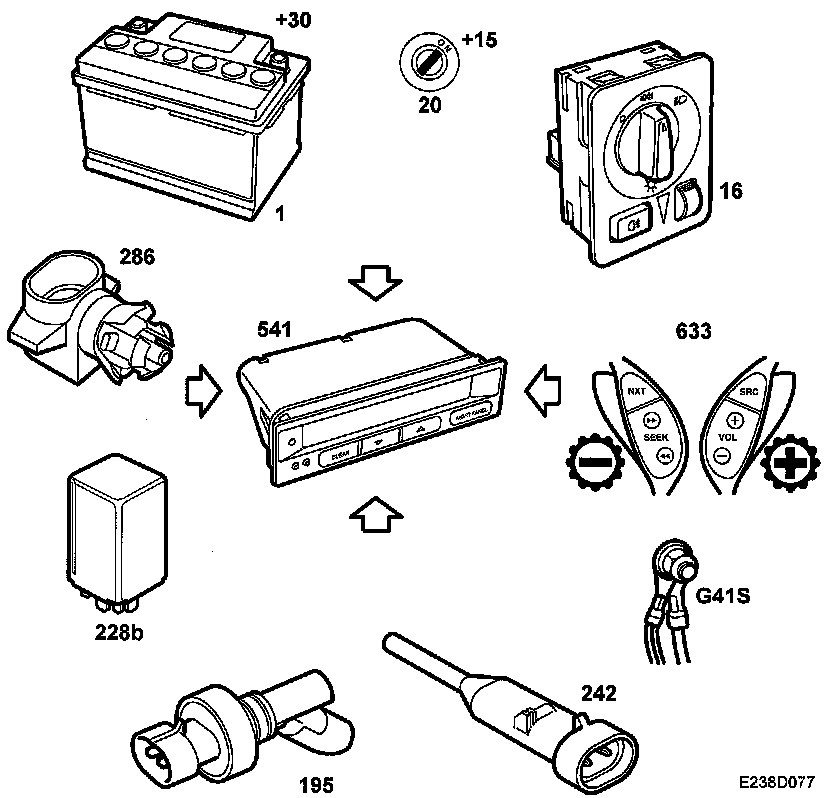

Control Module Inputs

Control Module Inputs







^ Power supply +30 (1)
^ Power supply +15 (20)
^ Ground (G41S)
^ Rheostat (16)
^ Steering wheel controls (633)
^ Coolant level low (242)
^ Washer fluid level low (195)
^ Filament monitor (228B)
^ Outside temperature sensor (286)
