Control Module Ground



Control Module Ground

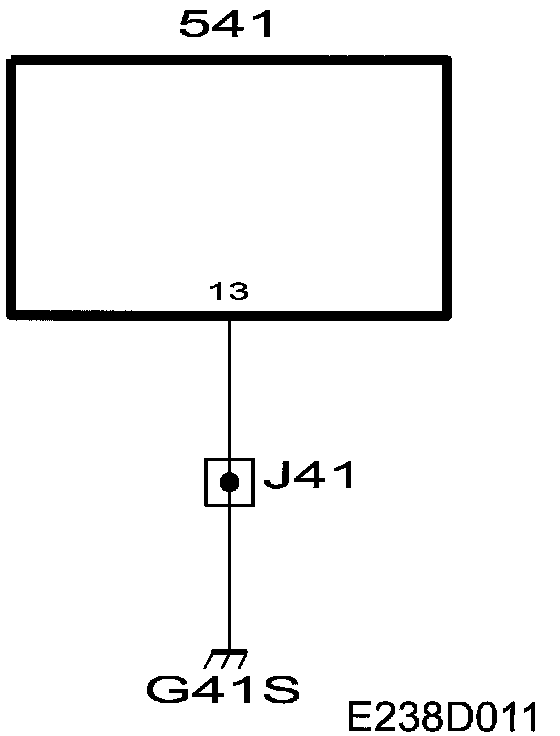

Ground connection

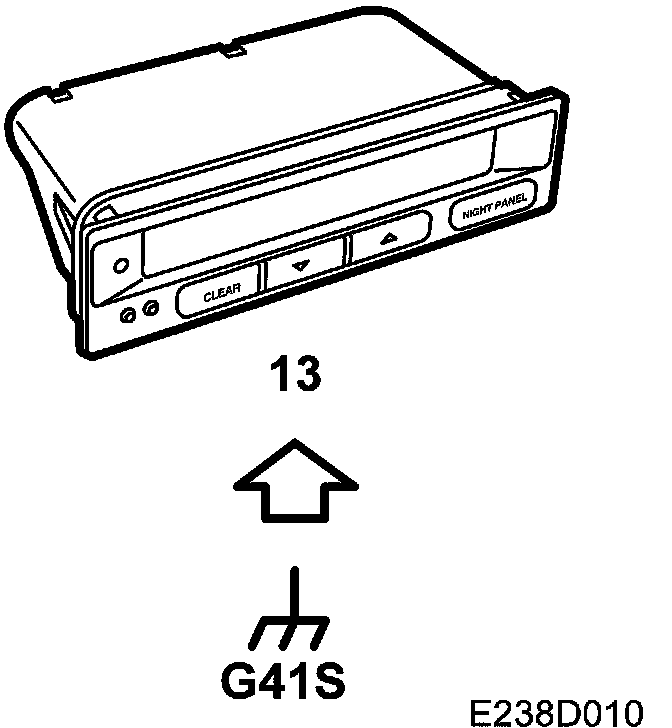

The SID is grounded via pin 13 at grounding point G41S.

Diagnostics
If there is no ground connection, the display will not be active and diagnostic communication will not be possible.

The SID will not generate any diagnostic trouble codes if the is no ground connection.
