Ground



Ground

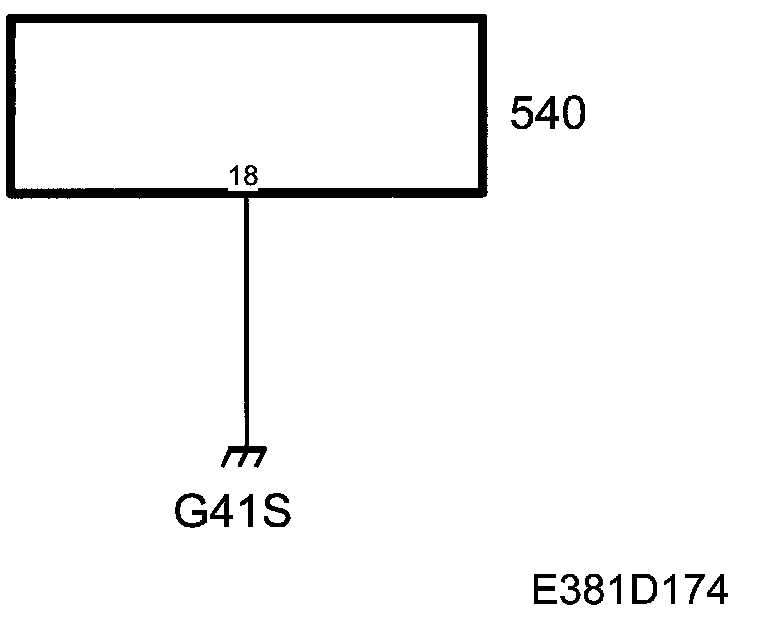

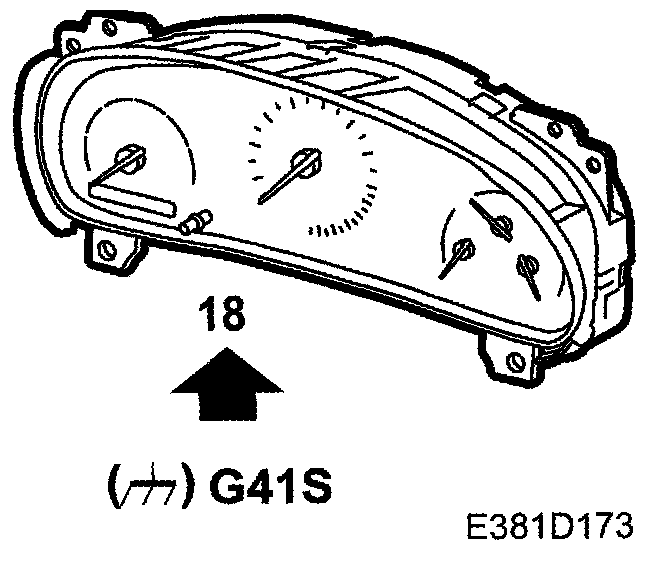

The main instrument unit is grounded through pin 18 to ground point G41S.

Diagnostics
If there is no ground, only the indicator lamp for the xenon lighting system will function as this is grounded outside the main instrument. Other functions will not work.

The function has no diagnostics.
