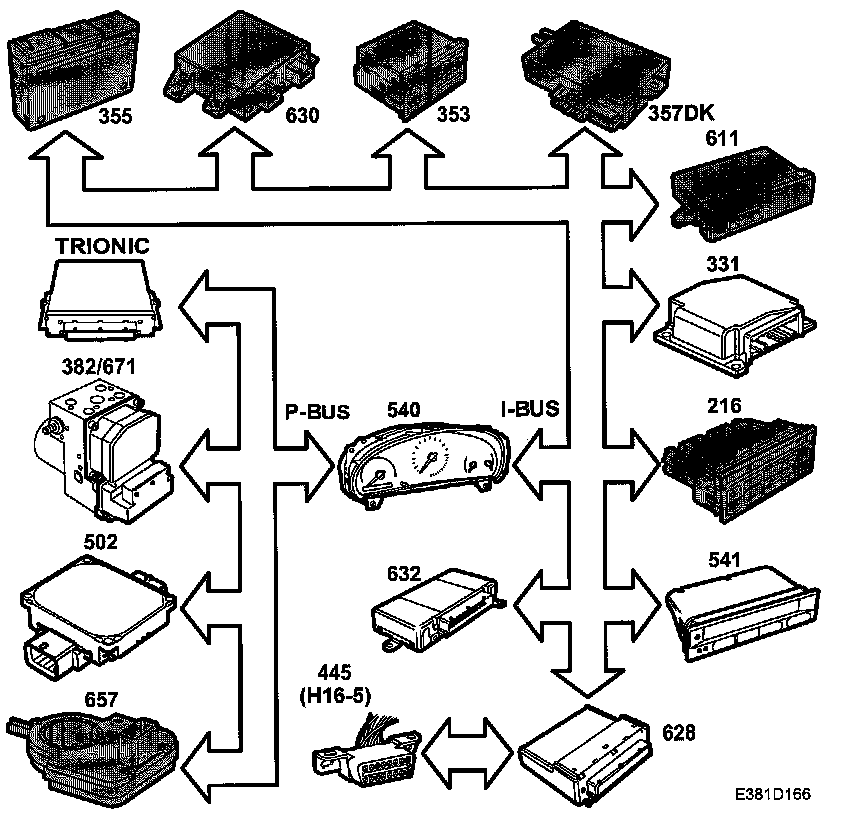

Control Module Inputs, Bus

Control Module Inputs, Bus

Cars with petrol engine







^ Engine speed information from ECM
^ Coolant temperature information from ECM
^ Fuel Consumed Since Start from ECM
^ Turbo boost gauge from Trionic
^ CHECK ENGINE indicator lamp from ECM
^ CRUISE indicator lamp from ECM
^ SHIFT UP indicator lamp from Trionic
^ CHECK GEARBOX indicator lamp from TCM (502)
^ SPORT indicator lamp from TCM (502)
^ WINTER indicator lamp from TCM (502)
^ Selector lever indicator from TCM (502)
^ ABS warning lamp from TC/ABS (382)
^ TCS/ESP OFF indicator lamp from TC/ABS (382) or ESP (671)
^ TCS/ESP indicator lamp from TC/ABS (382) or ESP (671)
^ AIRBAG warning lamp from SRS (331)
^ Rheostat level from SID (541)
^ Rheostat Night Panel from SID (541)
^ NIGHT PANEL from SID (541)
^ Display lighting value from SID (541)
^ Cabin light intensity value from SID (541)
^ INFO DISPL indicator lamp from SID (541)
^ Steering wheel location from TWICE (632)
^ "Door open" indicator lamp from TWICE (632)
^ LH direction indicator lamp from DICE (628)
^ RH direction indicator lamp from DICE (628)
^ Rear fog light indicator lamp from DICE (628)
^ Glow indicator lamp from ECM (diesel)
