Bus Message, Main Instrument Unit

Bus Message, Main Instrument Unit

For a further description of the car's bus system, see system overview, bus and diagnostics communication.

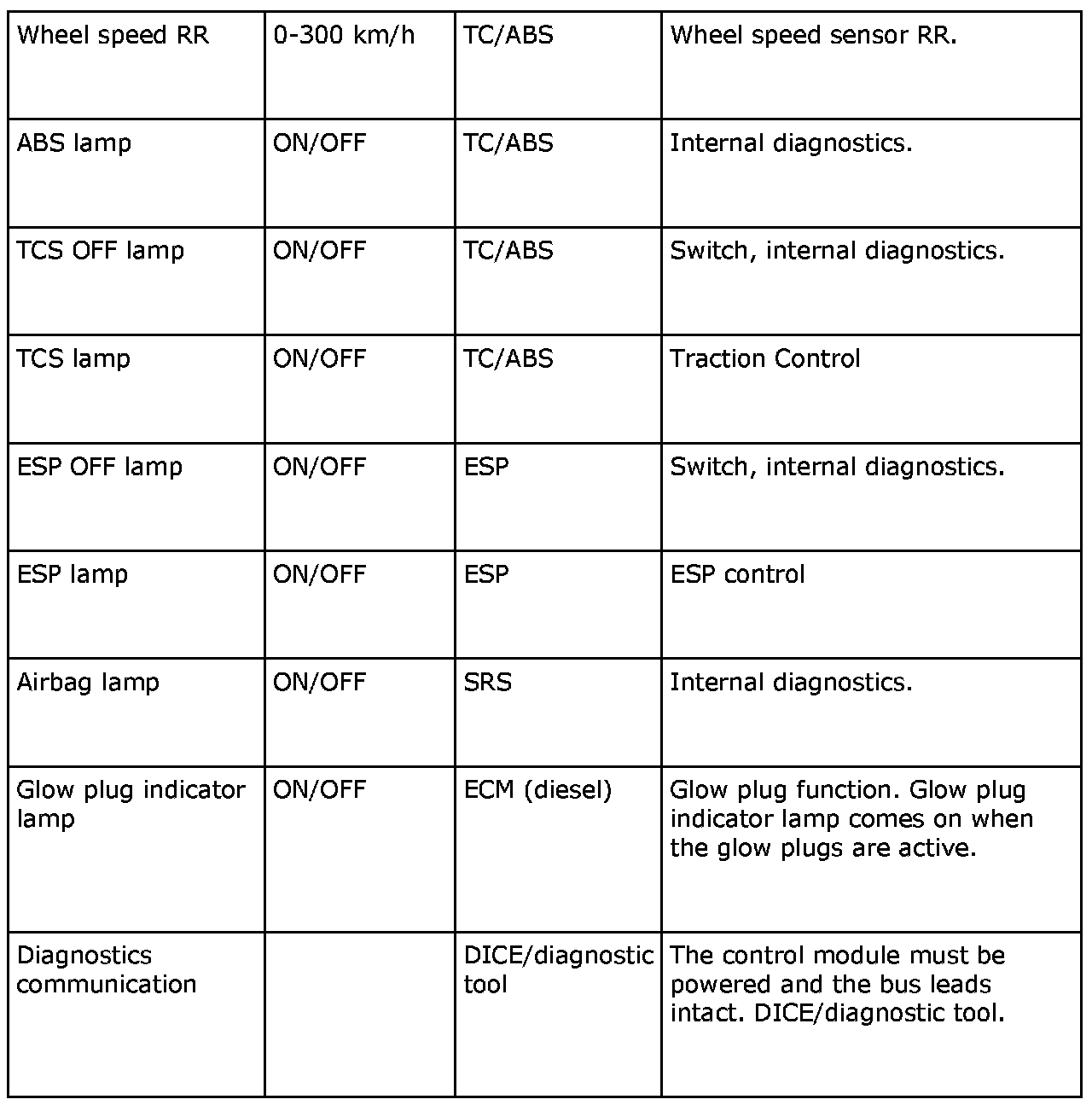

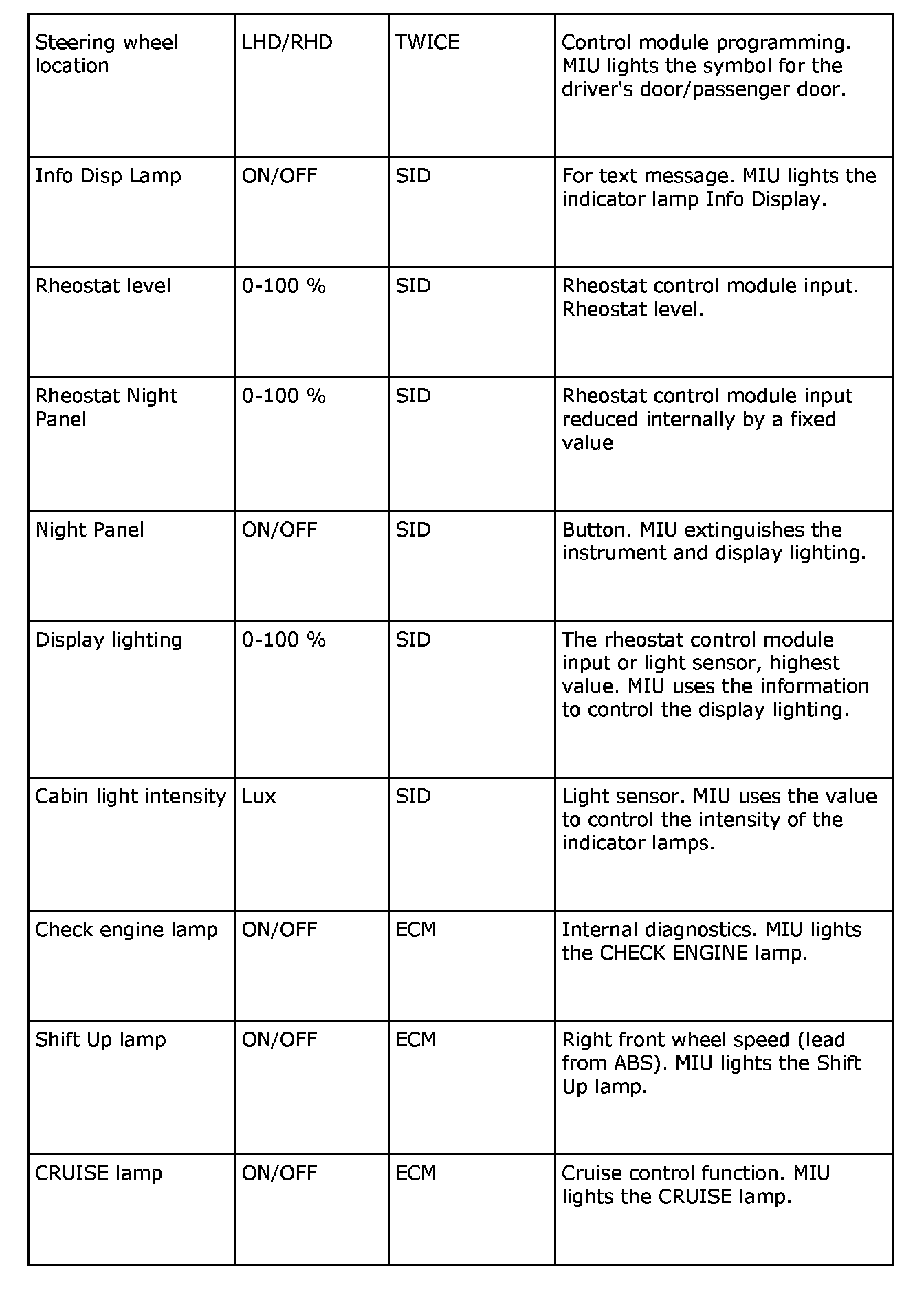

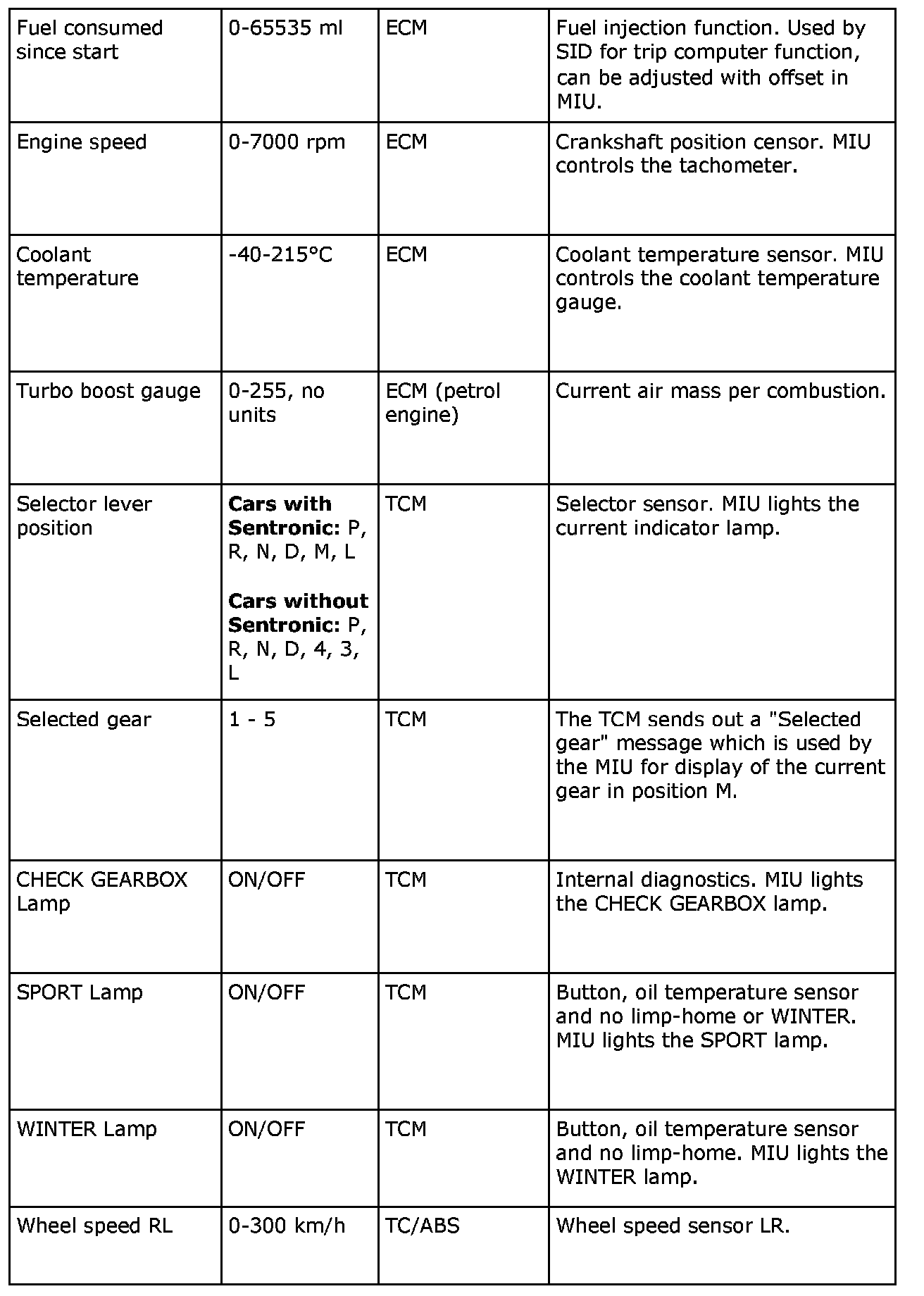

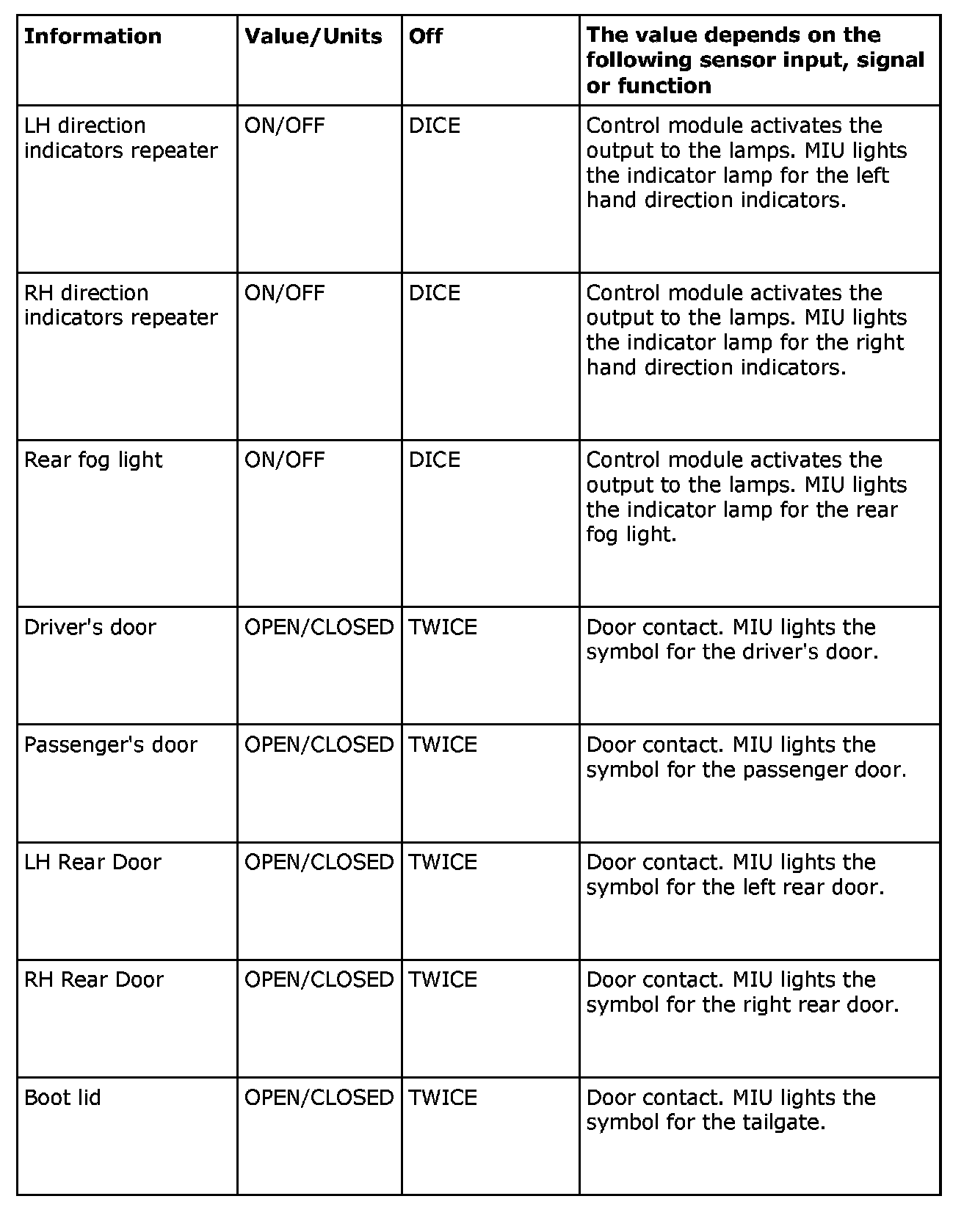

The MIU uses the following information:

Part 1:

Part 2:

Part 3:

Part 4:

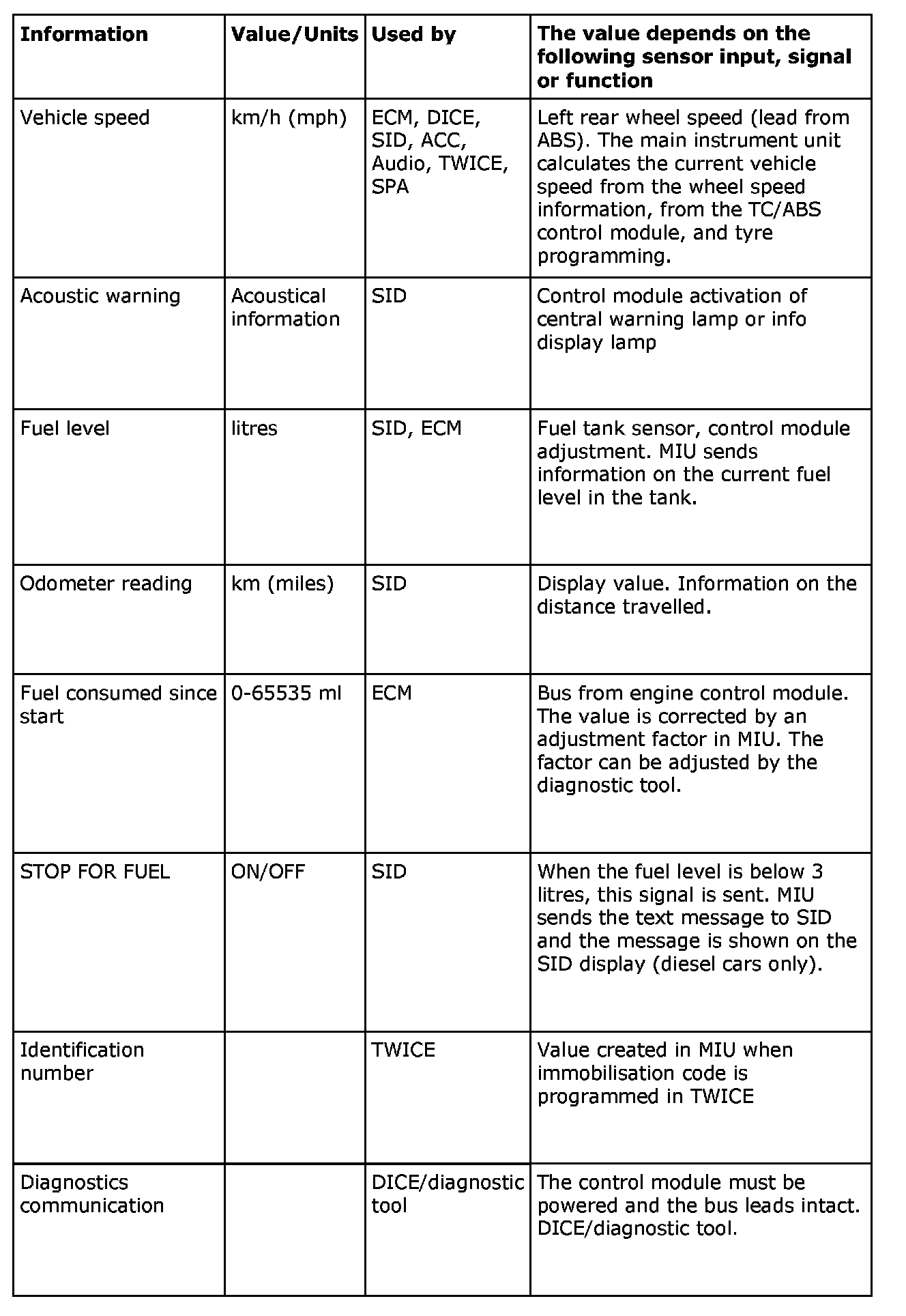

The MIU sends the following information:
