Method B

To remove, method B

1. Turn the ignition switch to the ON position.

2. Engage distribution mode VENT. Wait until the system has stabilized, (approx. 30 seconds).

3. Turn the ignition key to the OFF position.

4. Remove the heating and ventilation unit from the car, as described in WIS 9-5 M02-8. Body - Heating and ventilation, A/C - Adjustment/Replacement - Climate control unit.

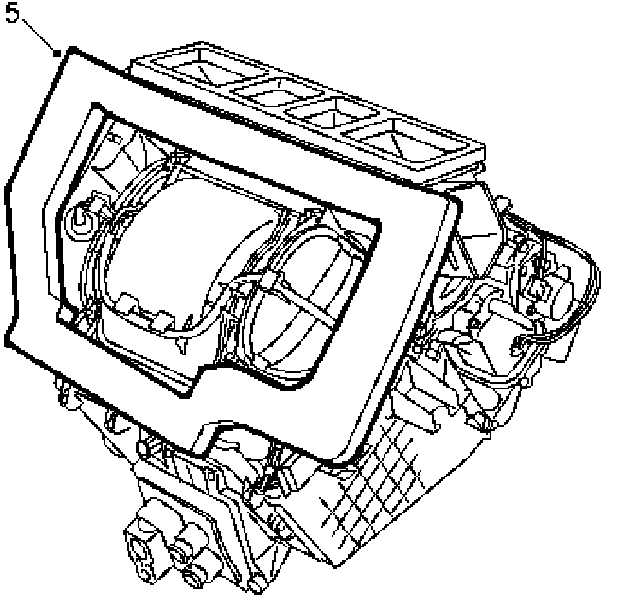

5. Remove the foam seal from around the fan unit.

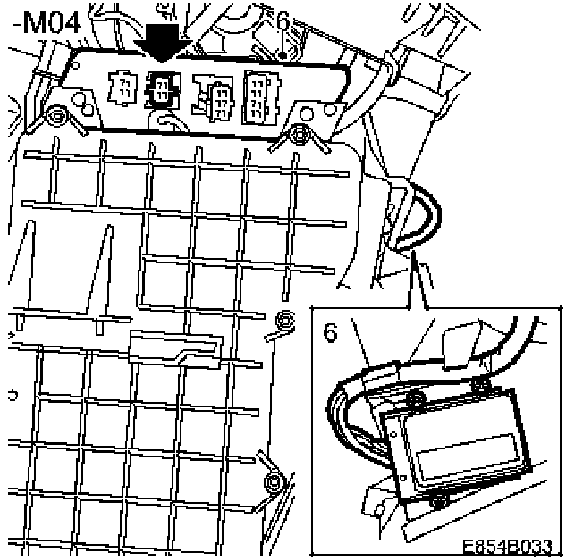

6. Up to M04 inclusive: Remove the plate holding the connectors on the passenger side. For models with temperature sensor, remove the temperature sensors connector from the plate. The connector's wiring harness enters the heating and ventilation unit via a rubber grommet.

Remove the fan control unit on the driver's side. For models with a transparent water barrier in front of the fan control module, this must be removed first.

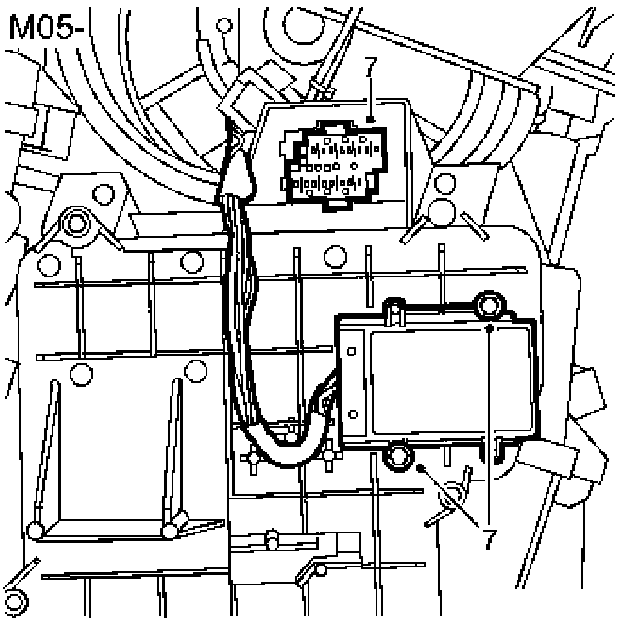

7. From M05 inclusive: Remove the large connector for the fan control unit on the passenger side.

Remove the fan control unit on the passenger side by removing the 2 screws.

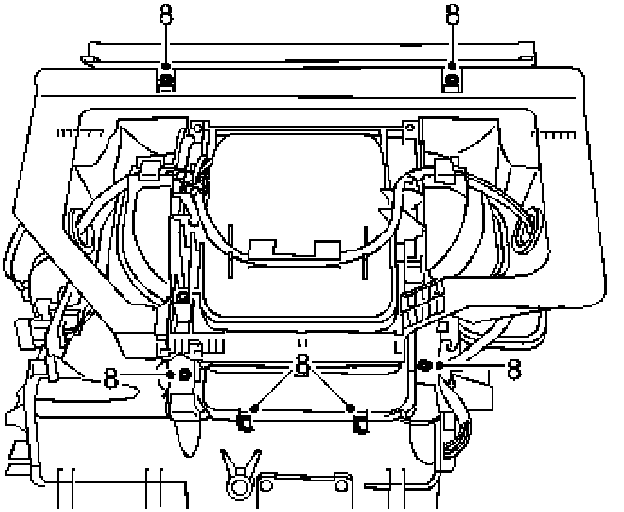

8. Remove the 4 screws and the 2 clips and remove the fan housing.

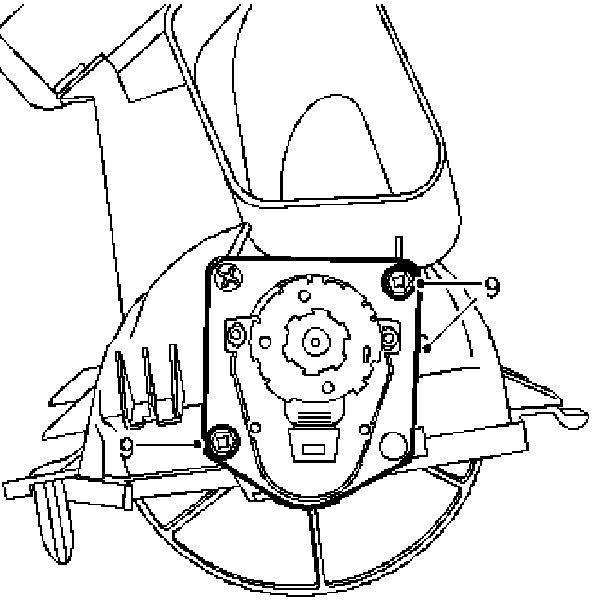

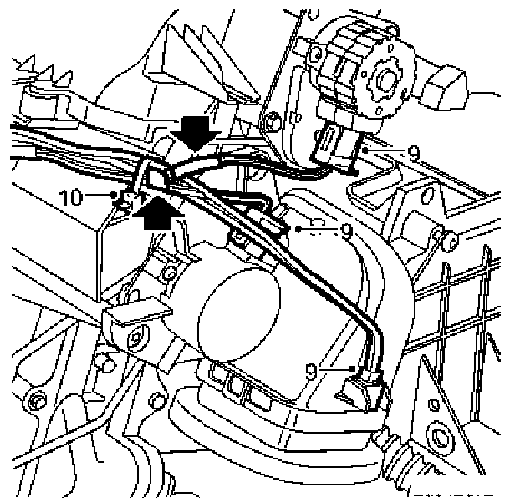

9. Up to VIN 43003168 inclusive: Make a note and mark which connector is connected to which stepping motor. In some cases the cables are already marked, see To fit. Mark up on which side each temperature sensor is fitted. The temperature sensors must not be mixed up when fitting.





From VIN 43003169 inclusive: Make a note and mark which connector is connected to which stepping motor. In some cases the cables are already marked, see To fit. Mark up on which side each temperature sensor is located. The temperature sensors are removed by twisting them and they must not be mixed up when fitting.

10. Unplug the wiring harness and cut the cable ties. Remove the wiring harness.

Note
Up to VIN 43003168 inclusive: Take care that the catches holding the temperature sensors do not break.

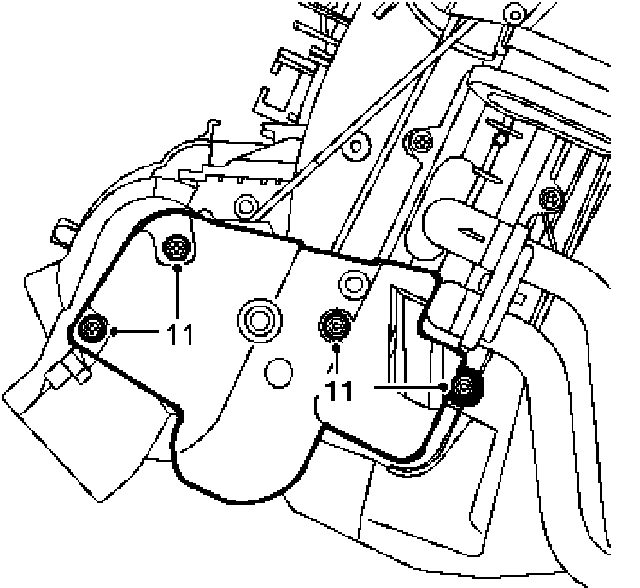

11. Remove the 4 screws from the cover and remove the cover.

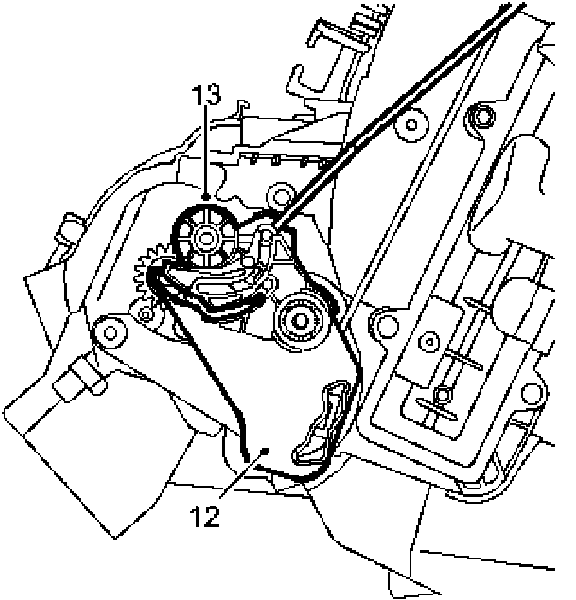

12. Carefully remove the upper cam disc.





13. Carefully remove the gear that the control rod is fixed into, from the heat exchanger housing.

14. Remove the gear from the control rod.

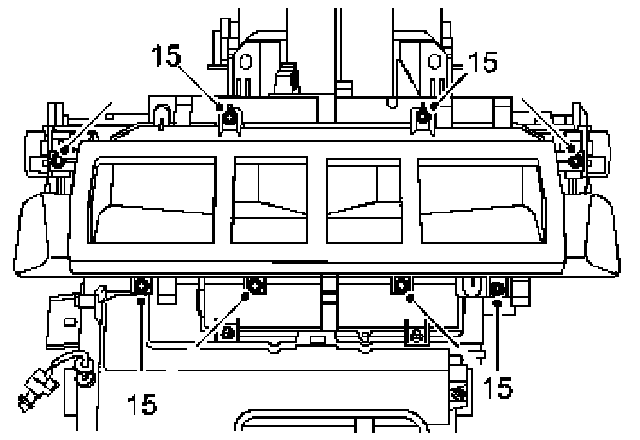

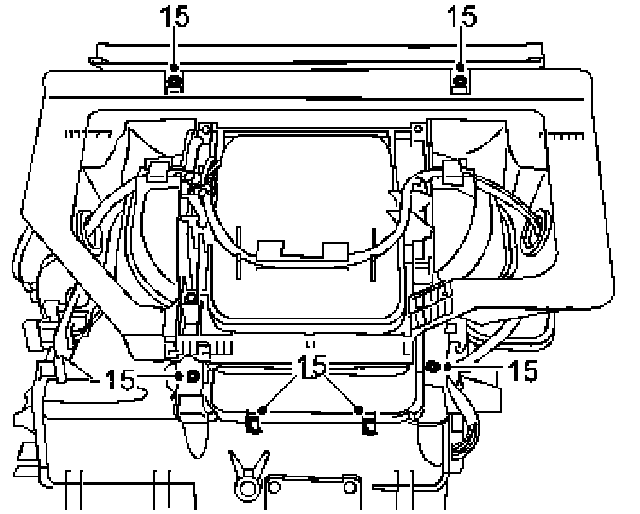

15. Remove the screws from the air distributor housing.





16. Carefully lift aside the air distributor housing.

Note
Exercise care to prevent the control rod from catching and damaging anything.

17. Remove the pipes from the heat exchanger.

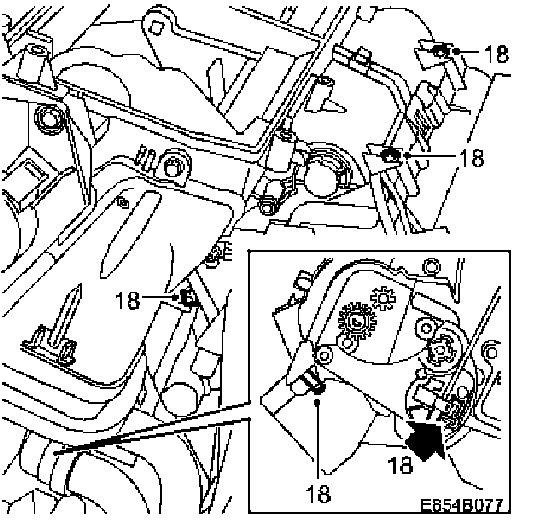

18. Remove the 4 screws and the 2 clips from the front and right-hand side of the heat exchanger housing.

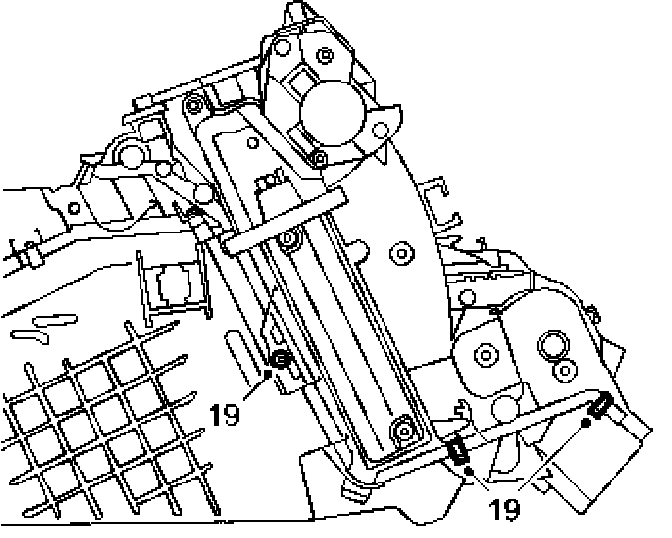

19. Remove the screw and the 2 clips from the left-hand side of the heat exchanger housing.





20. Remove the heat exchanger housing by opening the 3 plastic catches. Lift away the heat exchanger housing from the evaporator casing. Clean the drain hole and bottom of the evaporator casing.

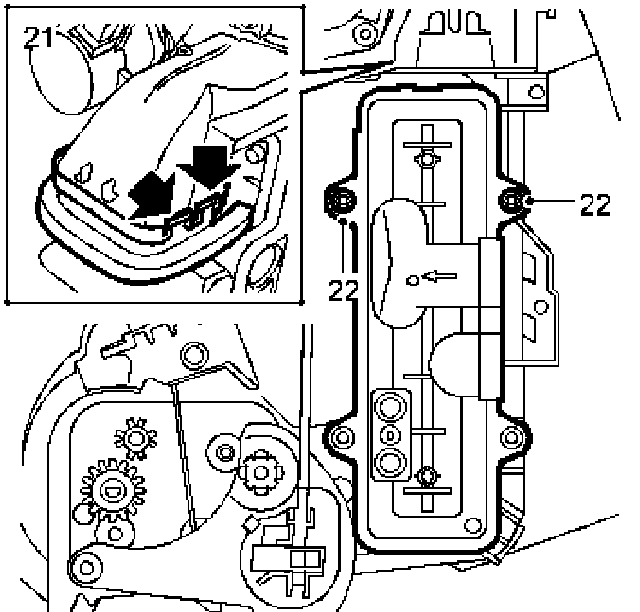

21. Remove the collar from the air outlet.





22. Remove the 2 remaining screws that hold the heat exchanger. Carefully pull out the heat exchanger.

Note
Be careful when the heat exchanger is removed from the heat exchanger housing as the space between the heat exchanger and the upper cam disc is limited.

To fit, method B

1. Remove the collar from the new air distributor housing.

2. Remove the 2 screws and cover from the new heat exchanger housing.

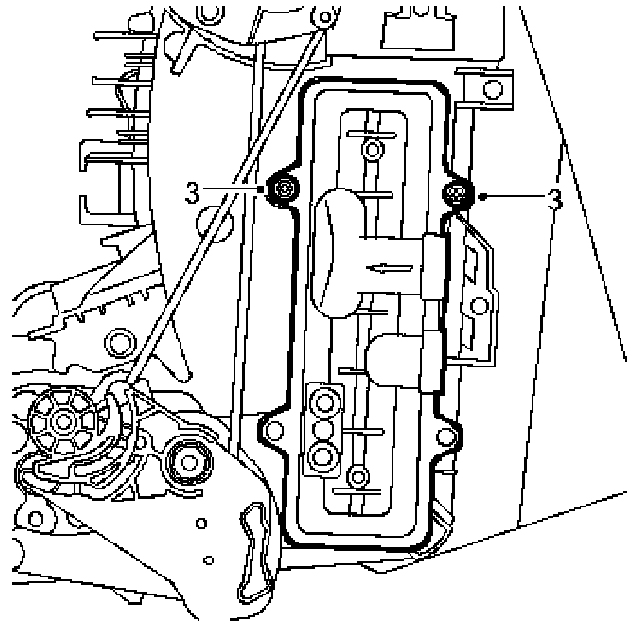

3. Fit the heat exchanger by carefully pushing in the new heat exchanger housing and fitting the 2 upper screws.





Tightening torque 1.4 Nm (1 lbf-ft)

Note
Be careful when the heat exchanger is pushed into the heat exchanger housing as the space between the heat exchanger and the upper cam disc is limited.

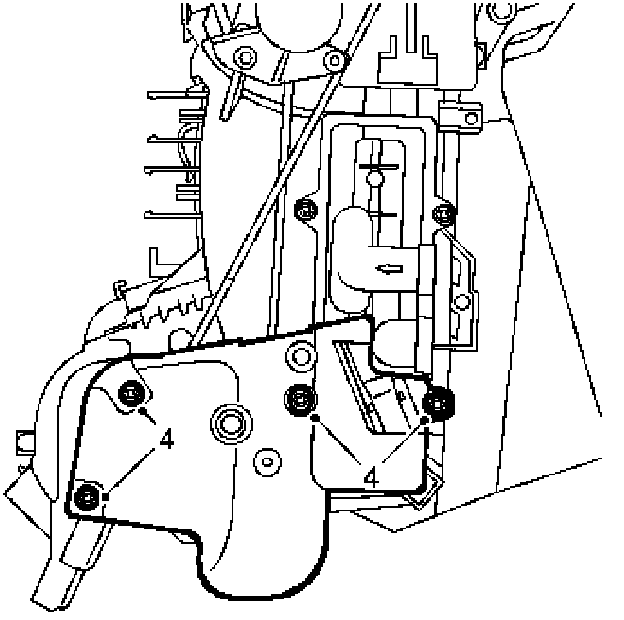

4. Fit the new cover with the 4 screws at the rear air distribution valve. Start with the upper rear screw, then with the lower rear screw.





Tightening torque 1.4 Nm (1 lbf-ft)

Note

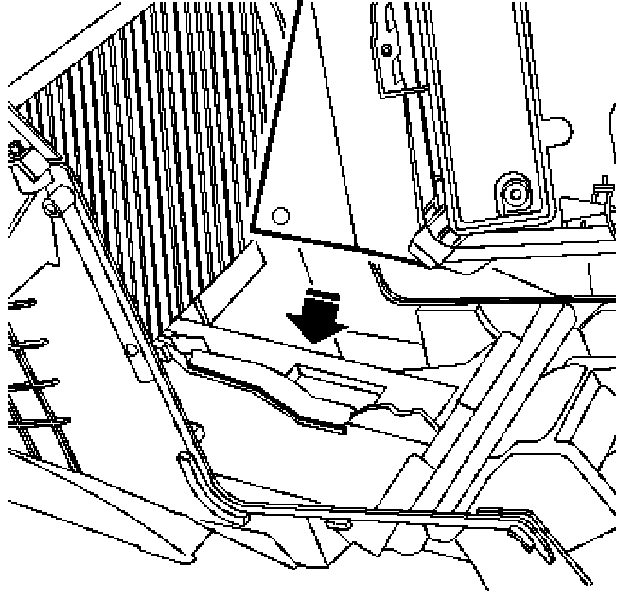

Make sure that the air shield on the heat exchanger housing is set against the seal (certain models) and the guide inside the evaporator casing when the heat exchanger housing is fitted.

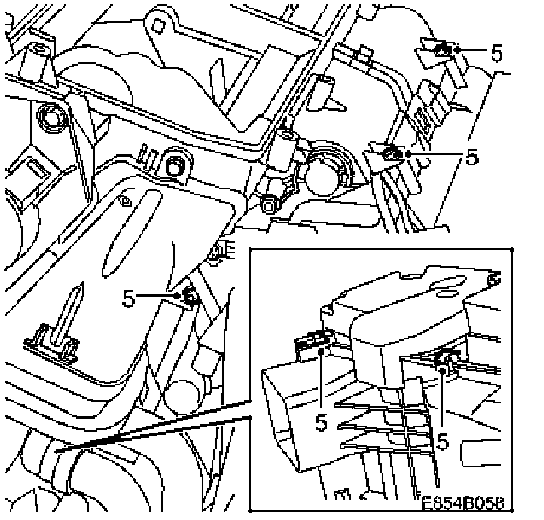

5. Fit the new heat exchanger housing onto the evaporator casing and fit the 4 screws and the 2 clips to the front and right-hand side of the heat exchanger housing.





Tightening torque 1.4 Nm (1 lbf-ft)

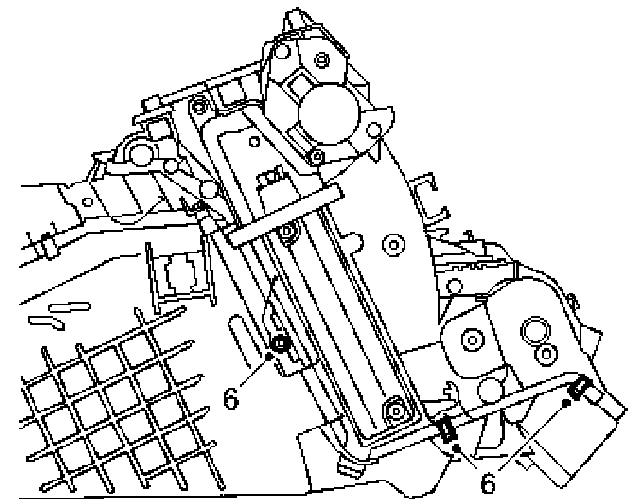

6. Fit the screw and the 2 clips to the left-hand side of the heat exchanger housing.





7. Fit the collar to the air outlet.

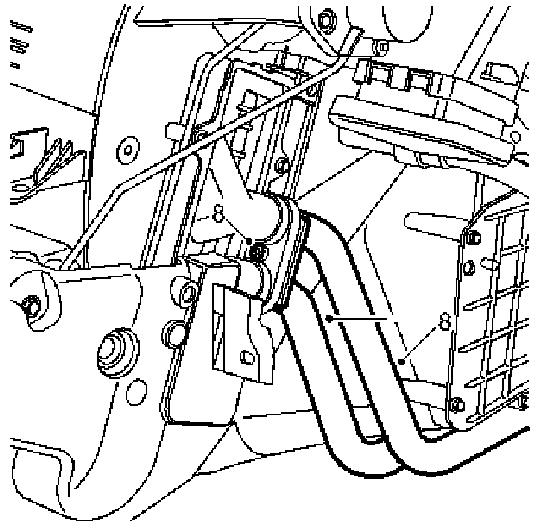

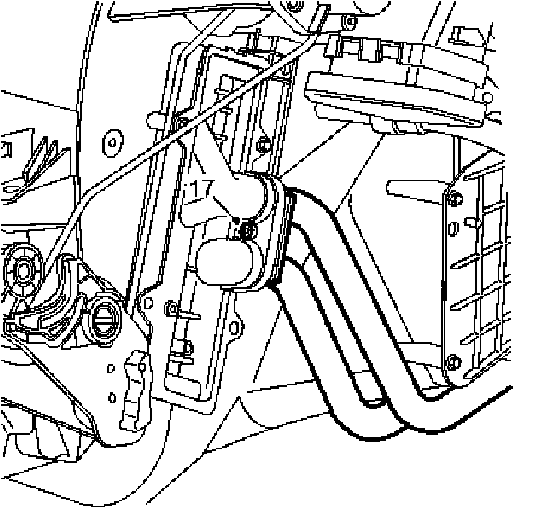

8. Fit new 0-rings greased with synthetic vaseline, part no. 30 15 286, on the heat exchanger pipes and fit the pipes to the heat exchanger. Exercise care that the 0- rings are not damaged.





Tightening torque 3.5 Nm (2.6 lbf-ft).

9. Remove the stepping motor from the old air distributor housing and remove the control rod from its clip.





Note
The old control rod shall not be used with fitting.

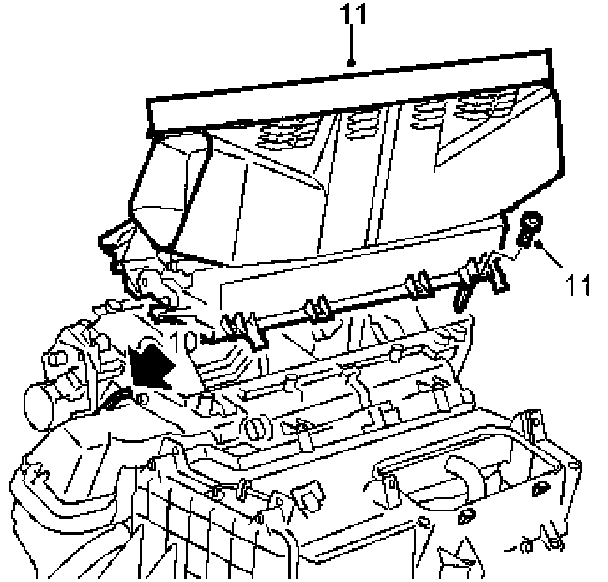

10. Press down the control rod to its lowest position.

11. Locate the air distributor housing into its position and fit the screws.





Tightening torque 1.4 Nm (1 lbf-ft.)

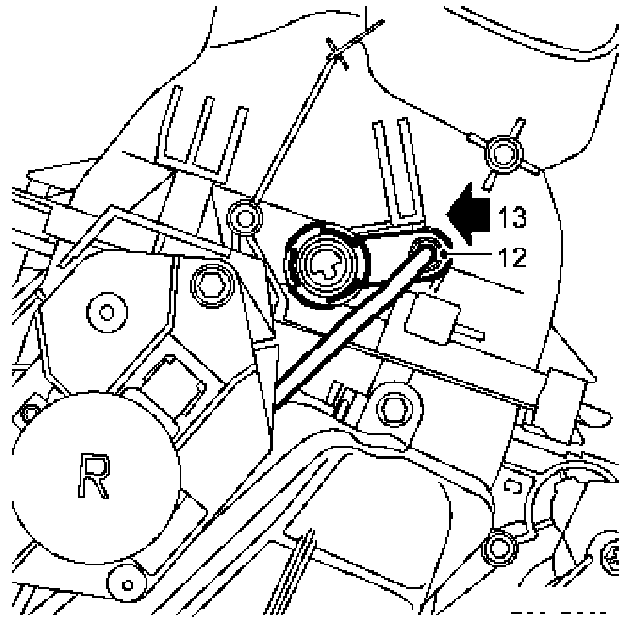

12. Fit the upper section of the new control rod in its clip.





13. Wind up the linkage to the stepping motor in the air distributor housing to the upper stop.

14. Fit the stepping motor and its 2 screws to the air distributor housing.

15. Locate the fan housing into its position and fit the screws to the cabin fan housing and fit the 2 clips.





Tightening torque 1.4 Nm (1 lbf-ft.)

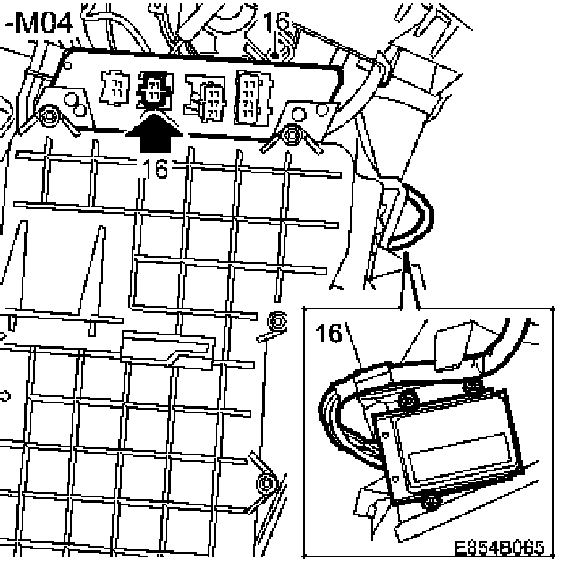

16. Up to M04 inclusive: Fit the fan control module and route the wiring up under the clasp. Where applicable, fit the water barrier.

Where appropriate, fit the temperature sensor connector to the plate and fit the plate to the heat exchanger housing. Make sure to guide the rubber grommet into the plate.

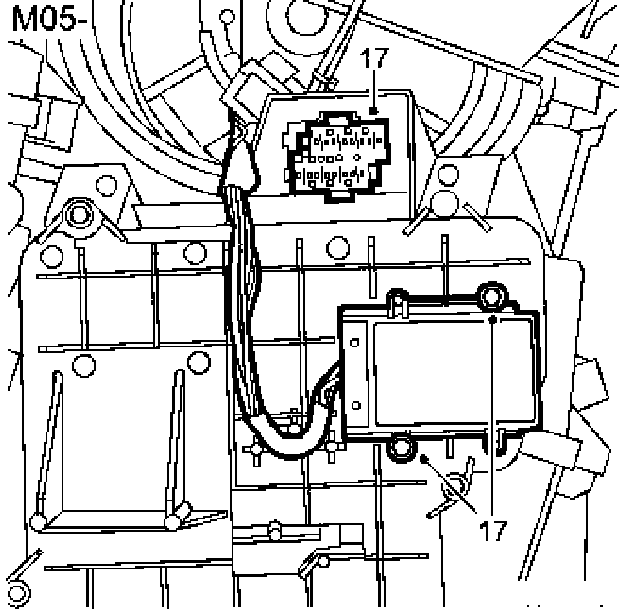

17. From M05 inclusive: Fit the fan control module and make a point of routing the wiring under the clip for the filter cover.

Tightening torque 1.4 Nm (1 lbf-ft)

Fit the large connector to the fan control unit.





18. Fit a new foam seal around the fan housing.

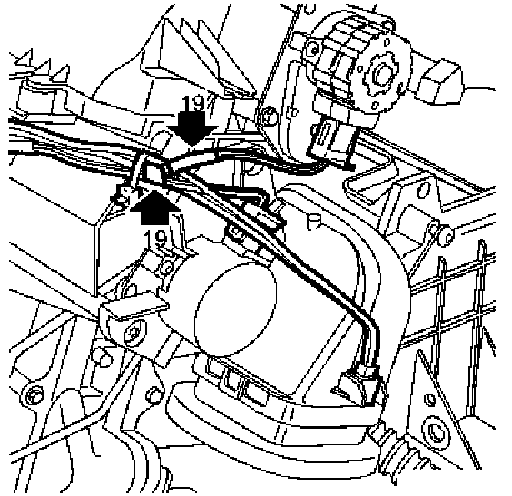

19. Fit and connect the wiring harness, and where appropriate, where the cables to the stepping motors are already marked with tape, the following applies:





Stepping motor distribution, blue tape

Blend Stepping motor, left-hand side, brown tape

Blend Stepping motor, right-hand side, red tape

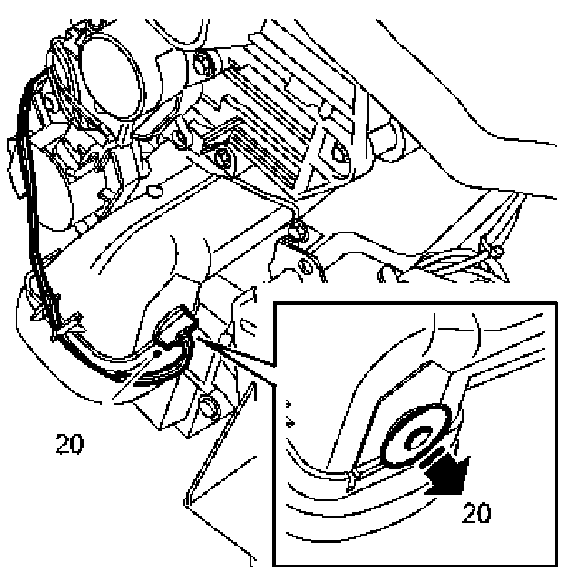

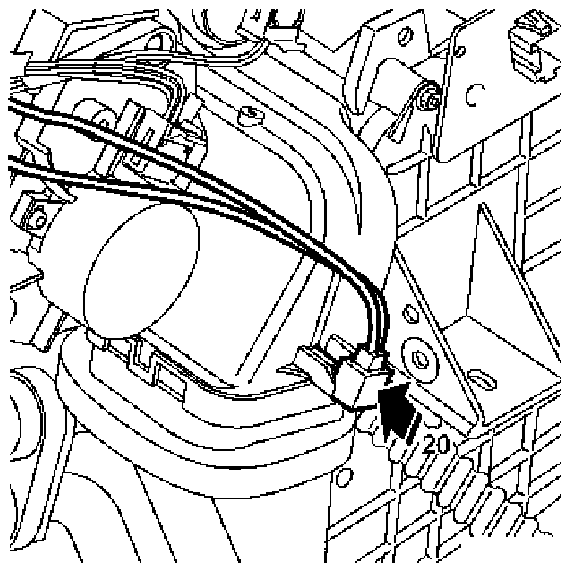

20. Up to VIN 43003168 inclusive: Carefully make holes using the temperature sensors and position them. Secure the wiring harness with cable ties.





From VIN 43003169 inclusive: Remove the plug on the air duct. Fit the temperature sensors by twisting and pressing them in. Secure the wiring harness with cable ties.





21. Fit the heating and ventilation unit as described in WIS. See WIS 9-5 Body - Heating and ventilation, A/C - Adjustment/Replacement - Climate control unit.

22. Replace and lubricate the 0-rings on the A/C pipes from the expansion valve using synthetic vaseline, part no. 30 15 286. Exercise care that the 0-rings are not damaged.

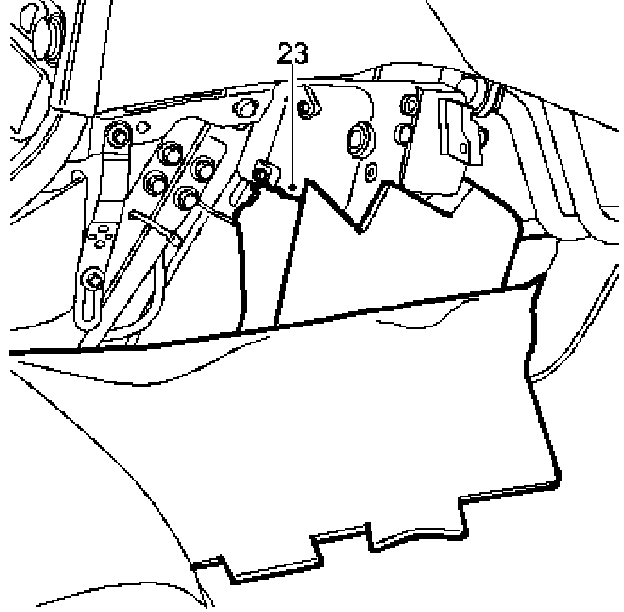

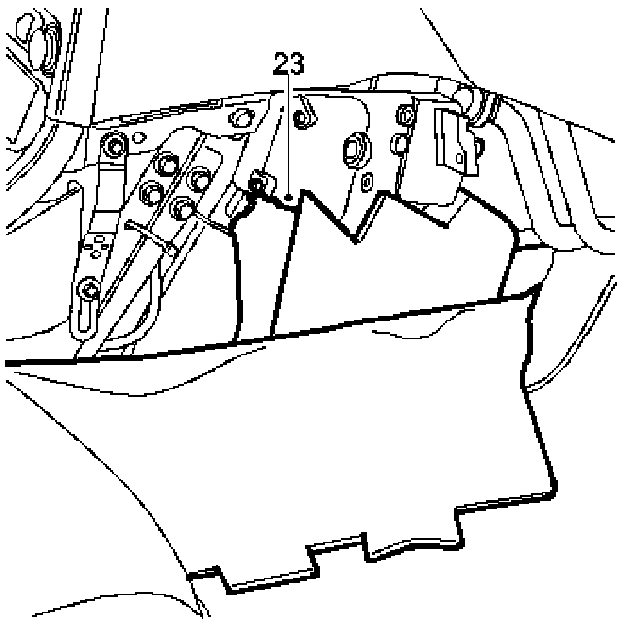

23. In the event that the sound insulation shall be fitted:





Note
Sound insulation will not have the same fit as before. The sound insulation is not affected by this.
