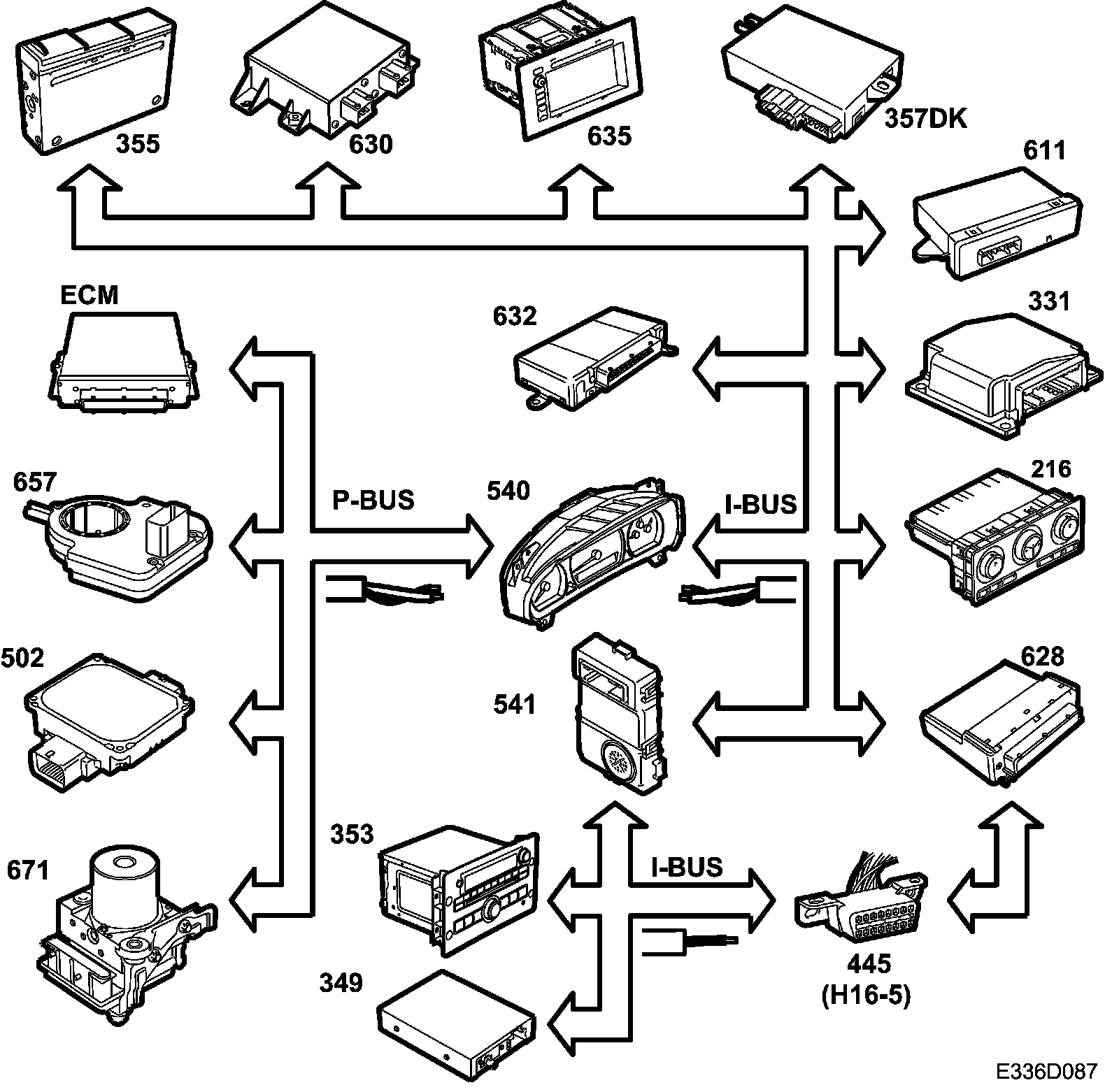

Control Module Inputs, Bus:

- Electric rear window confirmation (DICE, 628).
- AC compressor confirmation (ECM)
- Passenger seat occupied (TWICE, 632/ PPS 591).
- Vehicle speed (MIU, 540).
- Language (SID, 541).
- Rheostat value (SID, 541).
- Rheostat value, night panel (SID, 541).
- Night panel (SID, 541).
- Display lighting (SID, 541).
- Steering wheel location (TWICE, 632).
- Starter motor, confirmation (DICE 628).
- Outside temperature, unfiltered (SID, 541).
- Engine Running (ECM).
- Engine speed (ECM).
- Coolant temperature (ECM).
- Diagnosis (DICE, 628/diagnostic tool).
