Engine - Balancer Shaft/Timing Chain Replacement
Bulletin Number: 210-2480 utg. 3Date: June 2006
Market: all
New method, balancer shaft chain/timing chain replacement in the car
Cars affected
Saab 9-5 M98-
Background
This method has been developed for the purpose of replacing the balancer shaft chain and timing chain in the car, and accordingly to reduce the time required.
The spare parts kit is now available for order.
The method was included from WIS edition 2004-4.
Parts required

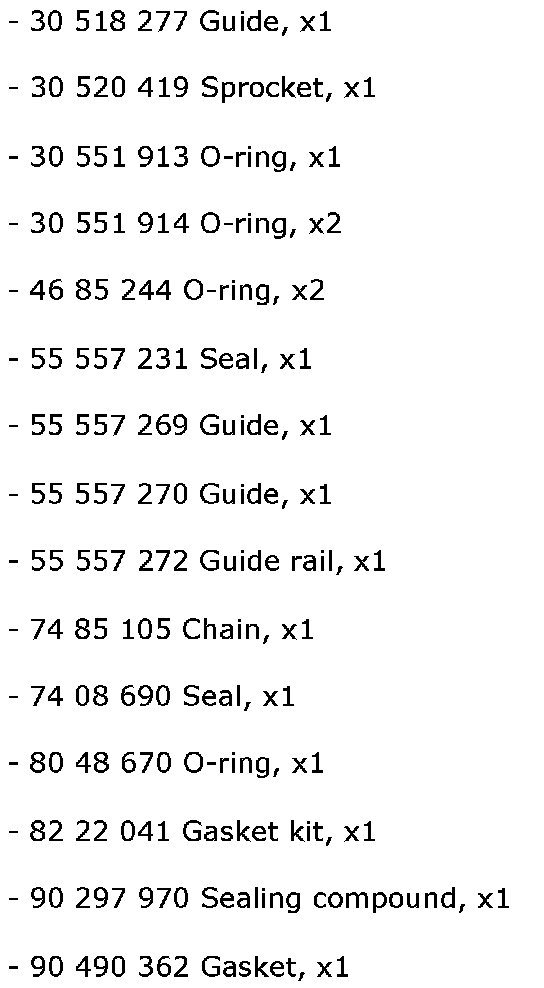

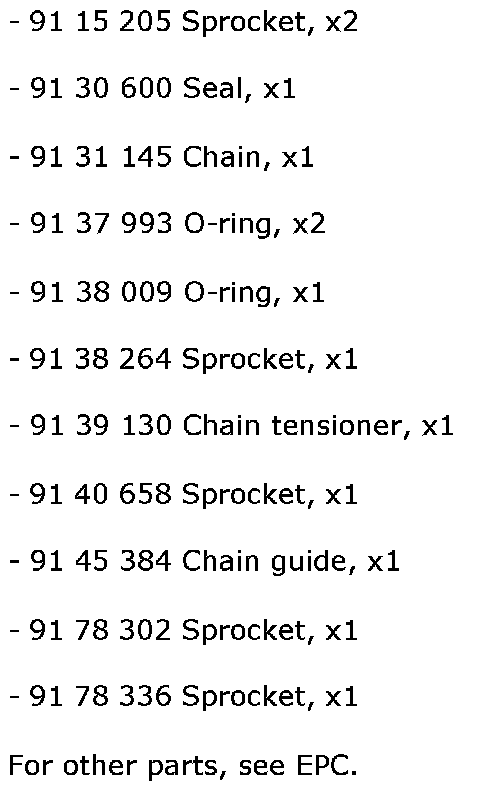

93 184 480 Spare parts kit, consisting of as shown.
Procedure
See WIS 9-5 - Basic engine, 4-cyl petrol - Adjustment/Replacement - Changing balancer shaft chain/timing chain in car.
Warranty/Time Information
In the case of customer complaint and if the car is within the warranty period, use the following information to fill out the claim:
Failed Object: 21521
Fault/Reason Code: 40
Location code: 09 (US=9)
Warranty Type (US): 01
Repair/Action code: 01
Labor Operation (US): 2152105
Labor Operation (CA): J0820
Time: 6.7 hr
