Engine Mounting and Engine Pad, RH
Engine Mounting And Engine Pad, RHTo Remove
1. Cover the wings and remove the top engine cover.

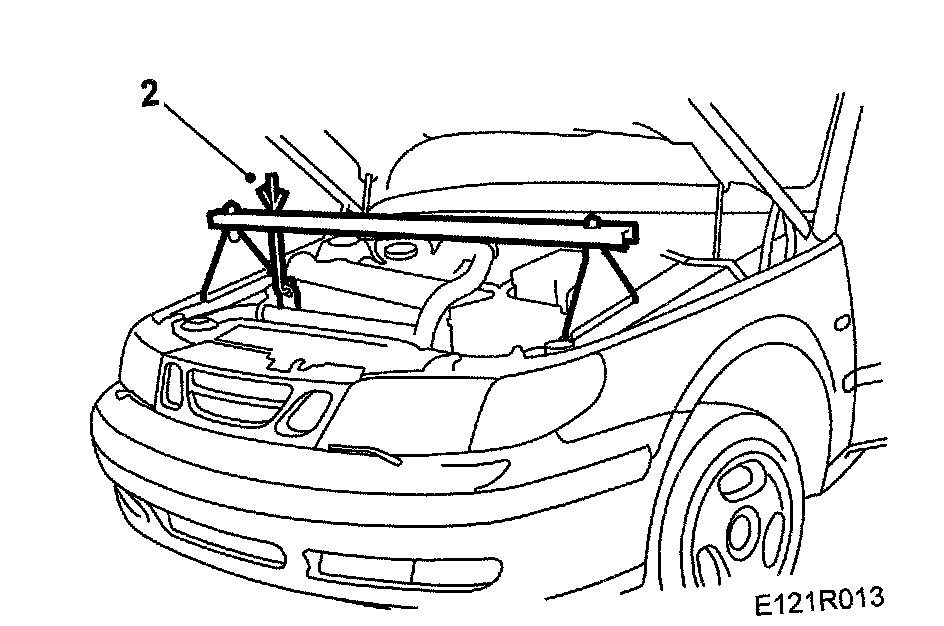

2. Fit 83 94 850 Lifting beam and take up the weight of the engine via the lifting eye.
3. Detach the power steering hose from the clip under the engine mounting.

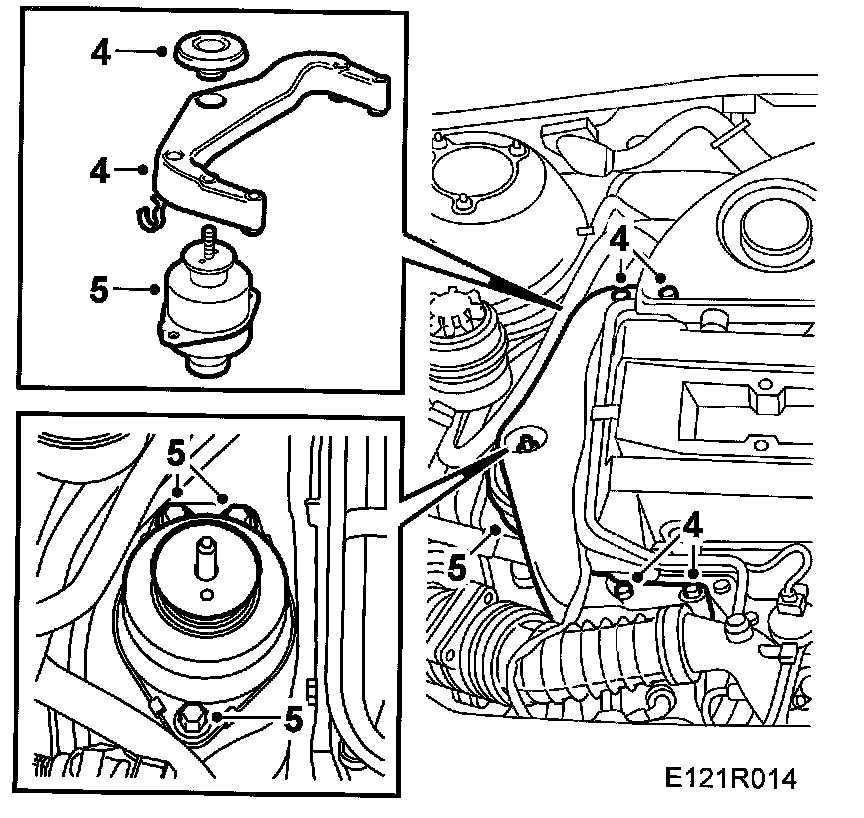

4. Remove the engine mounting.
5. Remove the engine pad.
To Fit

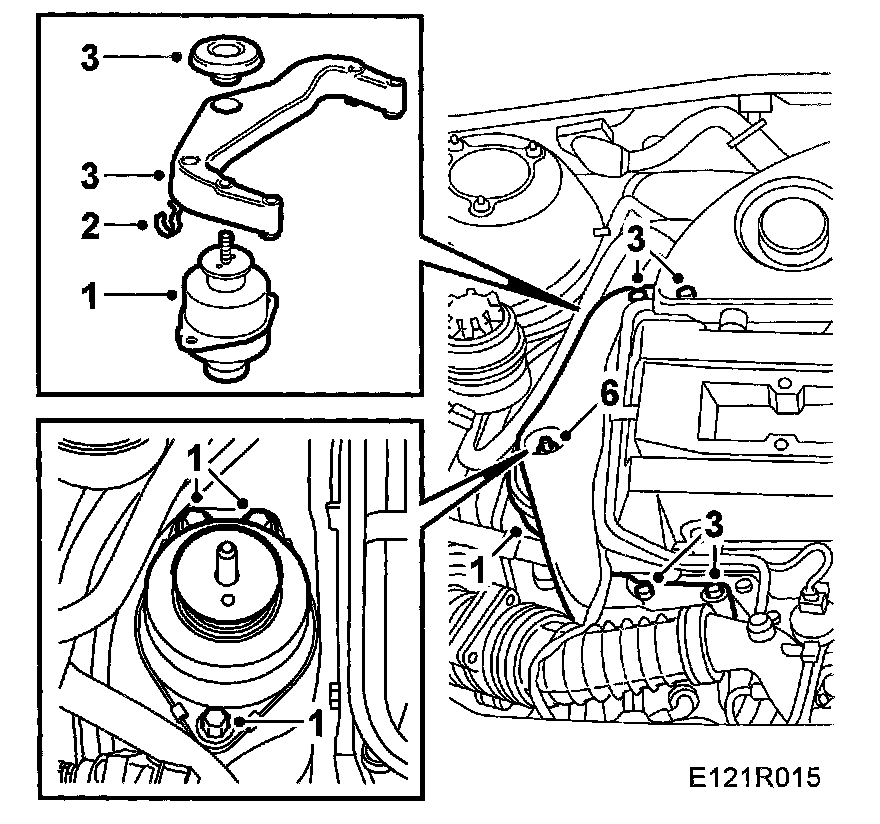

1. Fit the engine pad.
Tightening torque: 47 Nm (35 ft. lbs.).
2. Secure the power steering hose with the clip
3. Tighten the bolts and nuts on the engine mounting to torque
Tightening torque 47 Nm (36 ft. lbs.).
4. Lower the engine and remove the lifting beam
5. Move the engine back and forth sideways until it is balanced and not under strain.
6. Tighten the engine mounting nuts.
Tightening torque 105 Nm (78 ft. lbs.)
