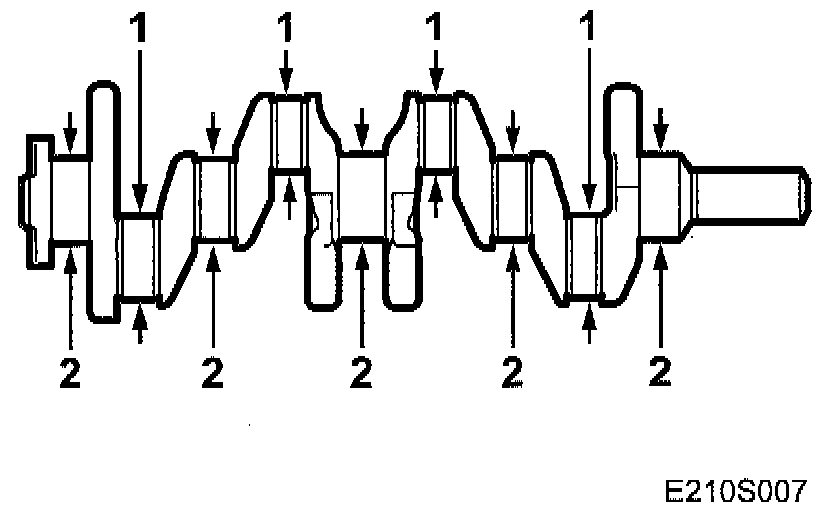

Big-End Bearing Journal Diameter

Crankshaft Journal Diameter (1)






Standard 51.981 - 52.000 mm
1st undersize 51.731 - 51.750 mm
2nd undersize 51.481 - 51.500 mm
Big-end bearing clearance 0.020 - 0.068 mm
