Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Locations >> Splice Locations >> Crimp Connection J17, Petrol Engine Harness

Crimp Connection J17, Petrol Engine Harness

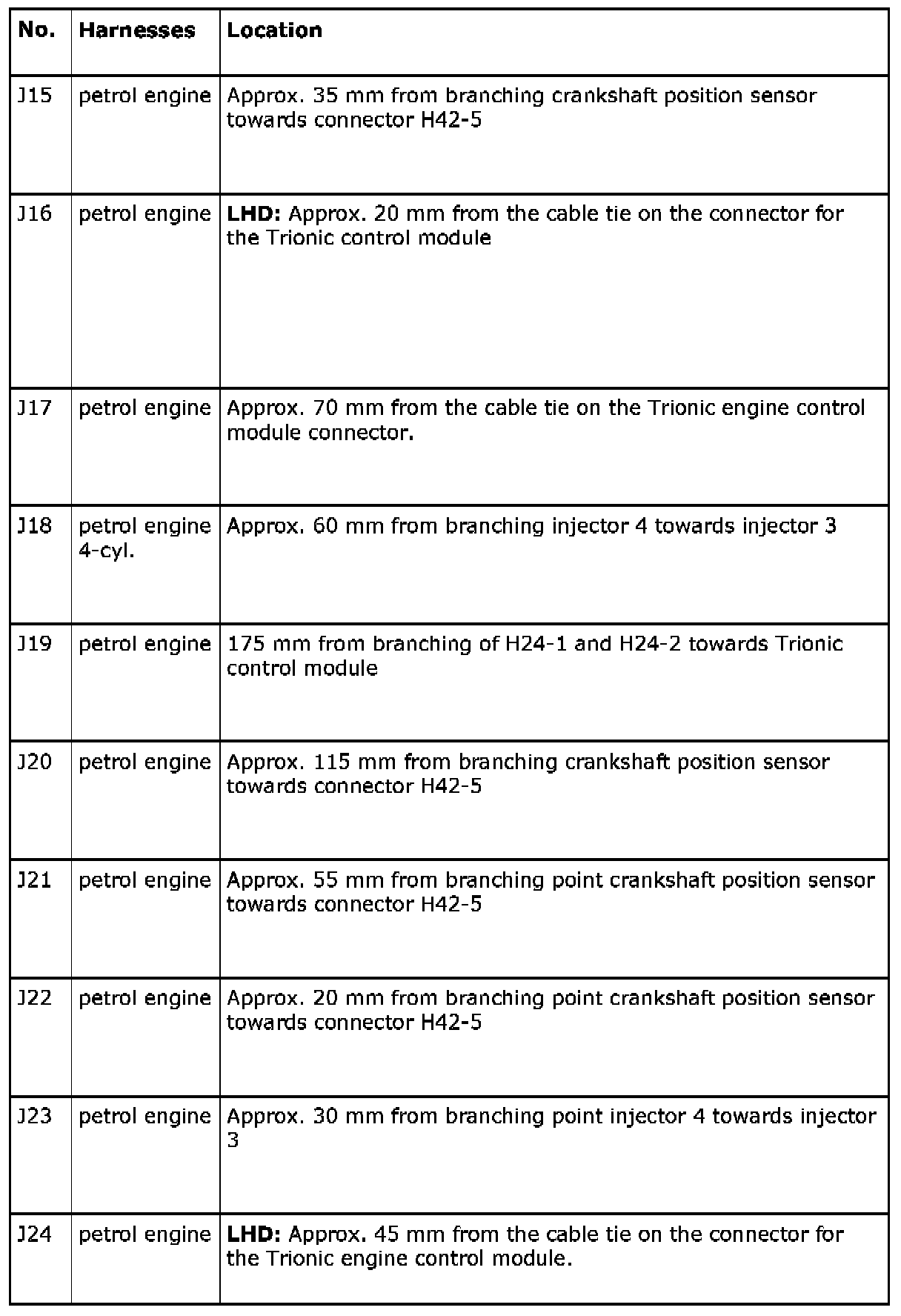

J15 To J24:
